Summary of Contents for Inkbird IHT-2PB

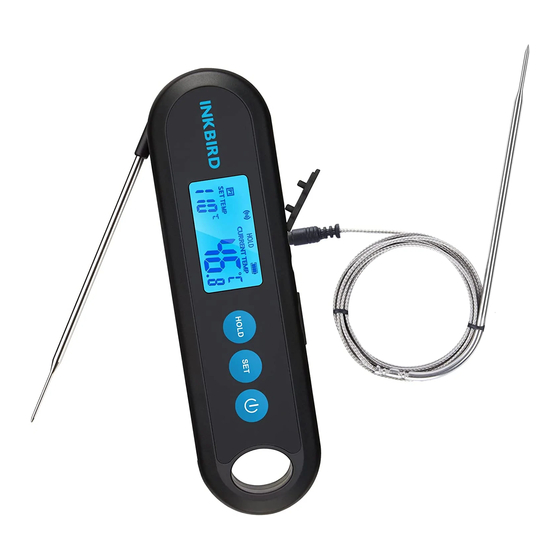

- Page 1 IHT-2PB Bluetooth Digital Food Thermometer With 2 External Probes...
-
Page 2: Table Of Contents
Contents Overview Features & Specifications Product Diagram Connection ● Free App Download ● Bluetooth Connection Key Definition Operation Instructions ● App Operating Functions ● Menu Instruction ● Parameter Setting Guide ● Operating Functions Of The Built-In Probe (unplugging the external probes) ●... -
Page 3: Overview
Features & Specifications ● Product Name: Bluetooth Digital Food Thermometer ● Product Model：IHT-2PB ● 3 stainless steel probes for temperature measuring ● Heat-resistant, waterproof probe cables ● Temperature range of probes：-50.0℃-300℃（-58.0 ℉-572℉）... -
Page 4: Product Diagram
Product Diagram ➀ LCD Screen & Backlight ➄ Probe 1/2 Sockets ➁ HOLD/UP Button ➅ Battery Charge Port ➂ SET Button ➆ Built-in Probe ➃ POWER/DOWN Button ⑧ Magnetic Back - 02 -... -
Page 5: Connection
Connection Free App Download Get BBQGo Pro from Google Play or App Store for free, or you can scan the QR codes below to download the app directly. Please make sure the following requirements are met to download the apps smoothly: -Your IOS devices must be running IOS 11 or above to download the app. - Page 6 Open BBQGO Pro App, the installed application on your phone. Click to add a device. - 04 -...
- Page 7 Choose IHT-2PB. Make sure the Bluetooth icon on IHT-2PB is flashing at a frequency of 2Hz, and then click Next Step. - 05 -...
-
Page 8: Key Definition
Search for a device Connect successfully. Key Definition Press and hold the button for 2 seconds to enter the menu for function setting. During the setting process, press the button to choose functions; press and hold the button for 2 seconds to quit and save setting changes. Press the button to turn on the device. -
Page 9: Operation Instructions
Operation Instructions App Operating Functions Operation Interface ● - 07 -... - Page 10 Setting Menu ● - 08 -...
- Page 11 More Settings ● - 09 -...
-
Page 12: Menu Instruction
Menu Instruction MENU DIS- SETTING DEFAULT FUNCTIONS ITEMS PLAY RANGE VALUES Celsius/ Fahrenheit Key sound ON or OFF Backlight 5~60S active time Alarm function ON/OFF for the built-in probe -50.0℃~300℃ 77.0℃ Alarm value for the built-in probe -58.0℉~572℉ 170℉ -4.9℃~4.9℃ 0.0℃... -
Page 13: Parameter Setting Guide
Parameter Setting Guide Temperature Display Unit of ℃/℉ Step 1: press and hold button for 2 seconds to enter the menu for function setting, then press the button to choose CF function. Step 2: press button to choose ℃ or ℉. NOTE: All parameters will be restored to their default values once you change the temperature unit. - Page 14 Step 3: press and hold button for 2 seconds to quit and save changes. (All changes will be automatically saved if there is no operation in 30 seconds.) Backlight Active Time Step 1: press and hold button for 2 seconds to enter the menu for function setting, then press the button to choose BLT function.
- Page 15 Step 2: press button to choose ON or OFF. Step 3: press and hold button for 2 seconds to quit and save changes. (All changes will be automatically saved if there is no operation in 30 seconds.) Alarm Value Setting for the Built-in Probe Step 1: press and hold button for 2 seconds to enter the menu for function setting, then press the button to...
- Page 16 Step 2: press button to increase or decrease the value; long press to quickly increase or decrease the value. Step 3: press and hold button for 2 seconds to quit and save changes. (All changes will be automatically saved if there is no operation in 30 seconds.) When the current temperature is 75.5℉, the screen displays 75.8℉...
- Page 17 Step 1: press and hold button for 2 seconds to enter the menu for function setting, then press the button to choose TS2 function. Step 2: press button to increase or decrease the value; long press to quickly increase or decrease the value. Step 3: press and hold button for 2 seconds to quit and save changes.
- Page 18 When the current temperature is 75.5℉, the screen displays 75.8℉ after setting the CA value as 0.3℉. Alarm Function for P2 (the External Probe 2) Step 1: press and hold button for 2 seconds to enter the menu for function setting, then press the button to choose ALM2 function.
- Page 19 Step 2: press button to increase or decrease the value; long press or to quickly increase or decrease the value. Step 3: press and hold button for 2 seconds to quit and save changes. (All changes will be automatically saved if there is no operation in 30 seconds.) Temperature Calibration for P2 (the External Probe 2) Step 1: press and hold...
-
Page 20: Operating Functions Of The Built-In Probe
When the current temperature is 75.5℉, the screen displays 75.8℉ after setting the CA value as 0.3℉. Operating Functions Of The Built-In Probe (unplugging the external probes) Screen Display Without plugging the external probes, the built-in probe is the current channel. The LCD screen displays data of the current channel in priority. - Page 21 Turn ON/OFF Automatically: The device is automatically turned on by unfolding the built-in probe. It is turned off when you fold the probe back. Manually: Press button to turn on the device. Regardless of the probe being folded or unfolded, you can press and hold button for 2 seconds to turn off the device.
-
Page 22: Bbq Functions (Plugging The External Probes)
Backlight Backlight helps you check data conveniently. Without any operation, the backlight will keep activated for the time of BLT parameter, then be off automatically . You can press any button to activate it when it’s off. If you unfold the probe, the backlight will be activated automatically when the probe detects a temperature change. - Page 23 When you plug the external probe P2, the P2 probe is the current channel. The LCD screen displays data of the current channel in priority. P2 symbol appears on the screen. When ALM2=ON (the alarm function of P2 probe is on),the screen displays SET TEMP and the alarm value of P2probe.
- Page 24 Alarm 1&2 Function When you set ALM1 (or ALM2) as OFF, the alarm function of P1 (or P2) probe is off, and the screen only display the current measured temperature. When you set ALM1 (or ALM2) as ON, the alarm function of P1 (or P2) probe is on, and the screen displays the alarm value of P1(or P2) probe (TS1/2) and the current measured temperature.
-
Page 25: Q&A About Abnormalities
Q1: What can you do if the screen displays “Er”, “---“ or other abnormal values? Answer: Please contact INKBIRD in time. Q2: What can you do if the screen do not display any value about P1 after inserting an external probe into... -
Page 26: Important Notes/Warning
P2 jack. If the display problem is still unsolved, or the screen displays “Er2”, please contact INKBIRD. Q4: Why can’t you turn on/off the thermometer by folding/unfolding the probe? Answer: Please make sure both external probes are not plugging in both jacks. -
Page 27: Product Warranty
This item carries a 2-year warranty against defects in either components or workmanship. During this period, products that prove to be defective will, at the discretion of INKBIRD, be either repaired or replaced without charge. FCC Requirement changes or modifications not expressly approved by the party responsible for compliance could void the user’s... - Page 28 pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 29: Meat Temperature &Doneness Chart
Meat Temperature &Doneness Chart MEAT Rare M.Rare Medium M.Well Done 49℃/ 54℃/ 60℃/ 66℃/ Beef 77℃/170℉ 120℉ 130℉ 140℉ 150℉ 49℃/ 54℃/ 60℃/ 66℃/ 77℃/170℉ Veal 120℉ 130℉ 140℉ 150℉ 49℃/ 54℃/ 60℃/ 66℃/ 77℃/170℉ Lamb 120℉ 130℉ 140℉ 150℉ Pork 63℃/145℉... - Page 31 INKBIRD TECH.C.L Support@inkbird.com www.inkbird.com 4/F E, Bldg 713, Pengji Industrial Zone, Liantang St, Luohu Dist, Shenzhen, China. V1.0...
- Page 32 骑马订 80*160mm...
