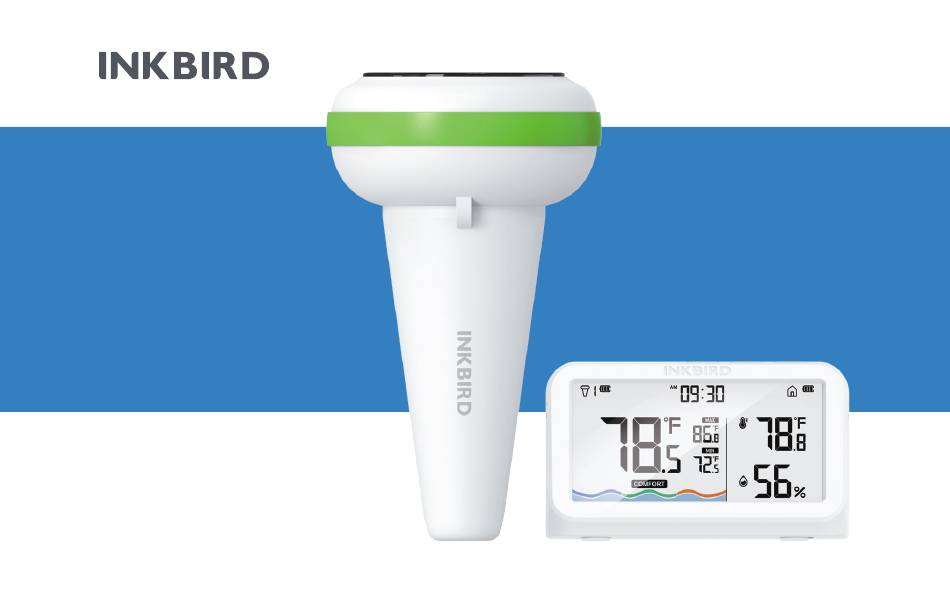

- Page 1 ACCURATE DETECTION WIRELESS POOL THERMOMETER P03R...
- Page 2 Warm tips To quickly jump to a specific chapter page, click on the relevant text on the contents page. You can also use the thumbnail or document outline in the top left corner to quickly find a specific page.
-
Page 3: Table Of Contents
CONTENTS Overview Precautions for Use Preparation Before Using Troubleshooting Product Introduction FCC Requirement Product Specifications IC Warning Add Sub-Devices Customer Service... - Page 4 Please keep this manual properly for reference. You can also scan the QR code below to visit our official website for product usage videos. For any usage issues, please feel free to contact us at support@inkbird.com.
-
Page 5: Overview

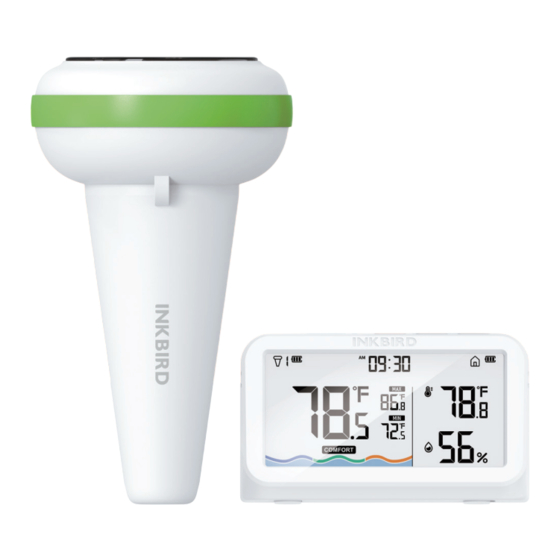

Overview The INKBIRD solar-powered wireless pool thermometer features a high-precision sensor and an IP68 waterproof con- struction. It supports solar power recharging, eliminating the need for frequent battery replacements and ensuring water resistance, which frees you from any worries and is environmentally friendly. The indoor monitor (Receiver) supports communication up to 300 meters (980ft) in open space, displaying both the pool temperature and indoor temperature and humidity for easy viewing. -
Page 6: Product Introduction
Press the action button on the pool thermometer (Transmitter) to turn it on. After powering on, press the action button to switch between Celsius (℃) or Fahrenheit (℉). To turn off the thermometer, press and hold the action button for 5 seconds. We recommend that you place the pool thermometer in a location exposed to strong sunlight and use it after the battery reaches three bars ( ). - Page 7 Solar Panel: Please do not block or cover the solar panel. Anti-collision Gasket: This is to protect the product from collisions and reduce the noise caused by collisions. Screen: Wireless icon: flashes once when transferring data. Battery level icon: The battery capacity is indicated by three bars. If the icon is flashing, it means that the battery power is too low.
- Page 8 Channel number and corresponding battery level: The current channel number and its corresponding battery level are displayed. If you switch to channel 8, each of the linked channels will be displayed in turn every 3 seconds. If the icon flashes, it indicates that the pool thermometer of the current channel has low power. Water temperature and MAX/MIN values: The water temperature is displayed in real-time, along with the maximum and minimum values for the past 24 hours (24h) or all-time (All).
- Page 9 Operation Instruction of Buttons on the Indoor Monitor (Receiver). Press once to select the time display Press once to change the tempera- Press once to switch the channel; mode for the max/min values; ture unit; Remove all of the paired pool Long press to reset the max/min Long press to enter the setting mode.
- Page 10 Press the MAX/MIN button once to display and flash the current recording period of max/min values. Press it again to select either 24H or ALL.Confirm and wait for the flashing to stop, which means you confirm your selection. The displayed MAX and MIN values represent the highest and lowest values recorded in the past 24 hours. All time and it displays the MAX and MIN values which are the highest and lowest values since starting up or the last recording reset.
-
Page 11: Product Specifications
Product Specifications Battery: 2*AAA 1.5V (included) Transmission Distance: up to 300 meters (980ft) in open space (if there is interference, the transmission distance will be limited.) Indoor Monitor (Receiver) Temperature measurement range: -10℃~60℃ (14℉~140℉) Temperature measurement accuracy: ±1.0℃ (±1.8℉) Temperature display accuracy: 0.1℃ (0.1℉) Humidity measurement range: 0~99% Humidity measurement accuracy: ±5% Humidity display accuracy: 1%... -
Page 12: Add Sub-Devices
Power: 3.7V 500mAh 1.85Wh Sampling period: 5s Waterproof grade: IP68 Warranty: 1 year Add Sub-Devices Firstly, make sure the batteries of the indoor monitor (receiver) are installed correctly and working properly. -
Page 13: Precautions For Use
Secondly, make sure that the pool thermometer (transmitter) is turned on, and place the thermometer as close to the indoor monitor (receiver) as possible. And press the black button on the thermometer to pair. Once the indoor monitor (receiver) receives the data sent from the pool thermometer (transmitter), the connection between them is established automatically, and the monitor (receiver) will complete adding a sub-device and display the channel number of the pool thermometer (transmitter). -
Page 14: Troubleshooting
extreme temperatures below -40℃/-40℉ or above 70℃/158℉. The indoor monitor's temperature measurement range is -10℃ to 60℃ (14℉ to 140℉), making it unsuitable for use in ex- treme temperatures below -10℃/ 14℉ or above 60℃/140℉. The humidity measurement range of the indoor monitor is 0% to 99% RH. It should be kept away from environments with high temperatures or high humidity. - Page 15 Fault Phenomenon Possible Cause Possible Solution The air outlet is blocked. Remove the blockage. The indoor monitor is providing inaccurate temperature and Leave the product in a dry and well-venti- Water has infiltrated the air outlet. humidity readings. lated place or wipe it dry using kitchen paper. The temperature is higher than the Please operate within the designated The indoor monitor displays “...
-
Page 16: Fcc Requirement
FCC Requirement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 17: Ic Warning
20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other an- tenna or transmitter. IC Warning This device contains licence-exempt transmitter(s)/ receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1)This device may not cause interference. (2)This device must accept any interference, including interference that may cause undesired operation of the device. The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 andcompliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. -
Page 18: Customer Service
This item carries a 1-year warranty against defects in either components or workmanship. During this period, products that prove to be defective will, at the discretion of INKBIRD, be either repaired or replaced without charge. For any problems in use, please feel free to contact us at support@inkbird.com. We will do our best to help you. - Page 19 Shenzhen Inkbird Technology Co.,Ltd. support@inkbird.com Consignor: Shenzhen Inkbird Technology Co., Ltd. Office Address: Room 1803, Guowei Building, No.68 Guowei Road, Xianhu Community, Liantang, Luohu District, Shenzhen, China Manufacturer: Shenzhen Inkbird Technology Co., Ltd. Factory Address: 6th Floor, Building 713, Pengji Liantang Industrial Area, No.2 Pengxing Road, Luohu District, Shenzhen, China...
