Summary of Contents for Inkbird IBT-24S

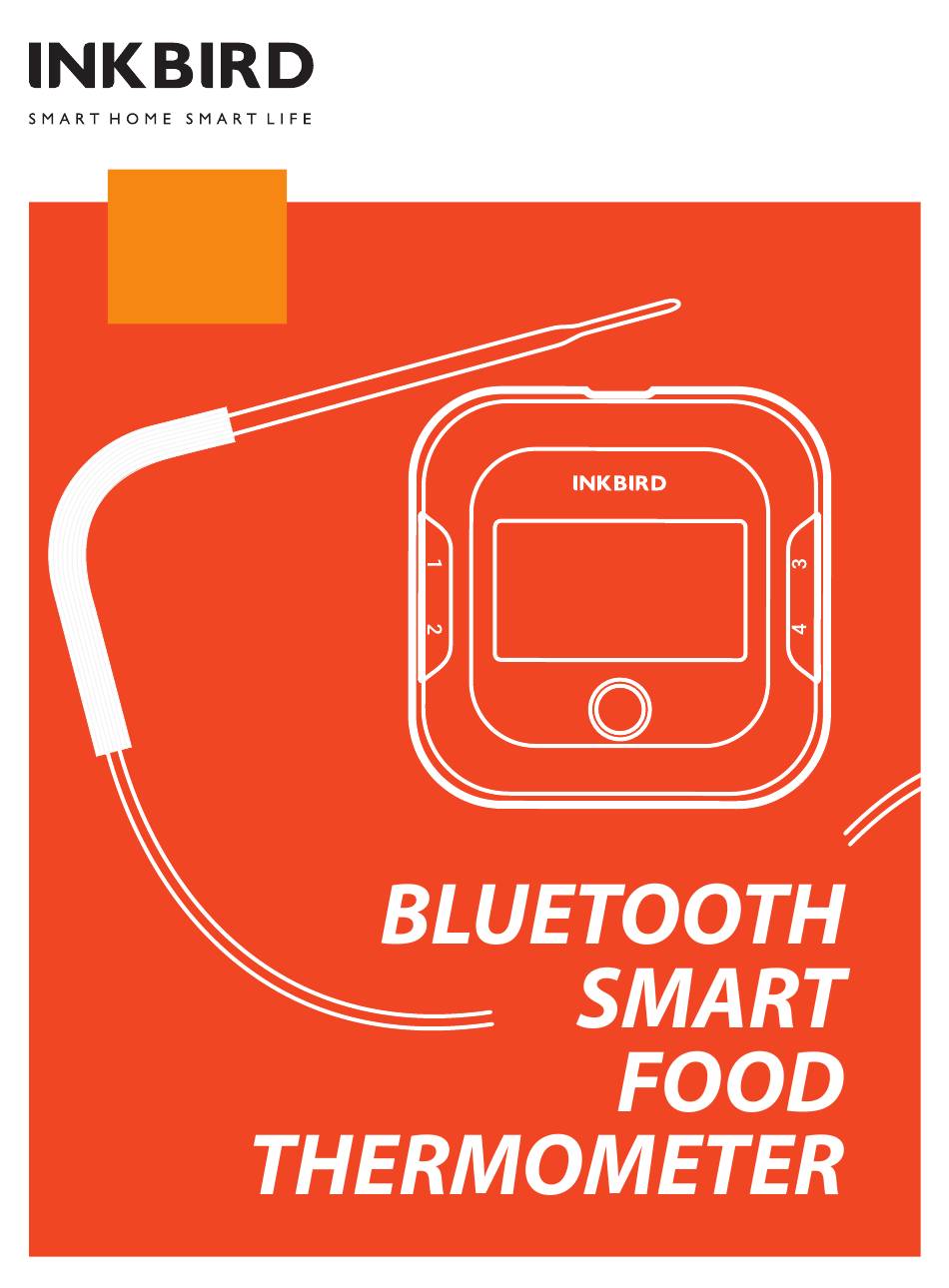

- Page 1 IBT-24S...

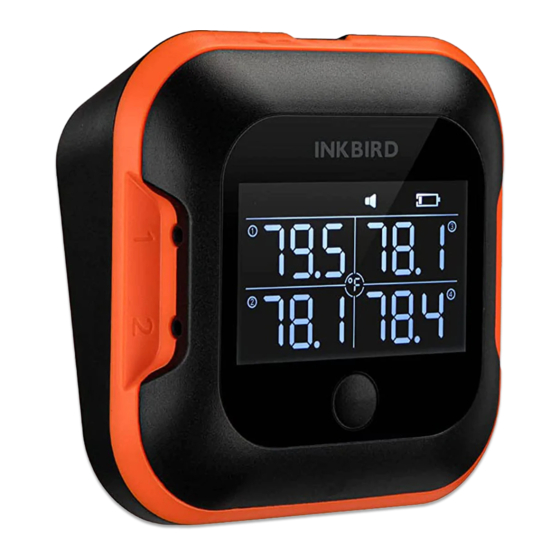

- Page 3 Inkbird IBT-24S is a smart food thermometer with Bluetooth function, designed for accurate temperature measurement in grilling, cooking, etc. You could control it via the phone application and remotely monitor the food temperature via your phone. This smart thermometer will alert you once the food is done.
- Page 4 600mA Standard USB Type-C Input Current Bluetooth Version BLE 4.2 Bluetooth Radio Frequency 2400~2483.5Mhz 150 feet (45 meters) Bluetooth Connection Range Bluetooth Maximum Output Power +10 dBm Operating Temperature -10℃~55℃ (14℉~131℉) Temperature Units ℃/℉ Temperature Calibration Range -7℃~7℃ / -12.6℉~12.6℉ Temperature Response Time 0.1 second (minimum) Temperature Refresh Rate...
- Page 5 Phone System Requirement Android 4.2 / iOS 11 or above More Functions on Historical temperature graphs; Probe colored labels the Application Product Warranty 1 Year IBT-24S *1 Meat Probes *4 Package Content Probe Clamps *2 USB Power Cable *1 - 03 -...
- Page 6 ① Backlit LCD Screen ② Probe Sockets ③ Power Button ④ USB Type-C Charging Port ⑤ Magnetic Back ⑥ 4 Meat Probes Length: 1.2 meters/3.9 feet - 04 -...
- Page 7 Mute Mode Alarm Mode always on Bluetooth is connected. disappeared Bluetooth is disconnected. flashing Bluetooth is requesting a match. always on USB Power is connected. 100% of Battery level 80%~99% of Battery level 60%~79% of Battery level 40%~59% of Battery level 20%~39% of Battery level flashing 0%~19% of Battery level...
- Page 8 ① TURN ON/OFF: Press the button and hold for 3 seconds to turn on/off the device. ② BLUETOOTH CONNECTION: When Bluetooth is requesting a match, press the button to complete the connection. ③ CANCEL ALARMS: When the temperature alarm is triggered, press the button to cancel the alarm.
- Page 9 Please scan the QR code below or search ‘BBQGO Pro’ at Google Play or APP Store to download the application, then install it on your phone. Android 4.4 or above iOS 11 or above 1 / Open the application - 07 -...
- Page 10 2 / Click to Add Device, and then choose the device model, IBT-24S. 3 / Press the POWER button for 3 seconds to turn on the device. - 08 -...
- Page 11 4 / After the application searches and finds the device, press the POWER button to complete the connection. - 09 -...
- Page 12 5 / Connection Succeeded - 10 -...
- Page 13 NOTE: 1.When using Bluetooth, your phone should get as close as possible to the device. The signal would be weakened or even disconnected if the distance between your phone and the device is too long or obstructed. 2.When using a wireless connection, the signal would be weakened or even disconnected if you place the device on a metal table or stick it to a metal object.
- Page 14 2) Insert the pinpoint of a probe into the food so as acquire food temperature. 3) Open the application to set parameters and check data via Bluetooth connection. NOTE: When you detect the oven temperature or room temperature, you should fix the probe with a clamp to get stable measurement results.
- Page 15 ① Bluetooth Connection Status ⑤ Target Temperature Alarm Setting ② Settings ⑥ View Transition ③ Historical Data Graph ④ Timer Setting - 13 -...
- Page 16 This product is equipped with a rechargeable lithium battery that contains 1000 mAh/3.7 Wh. Please be aware of the information below about the battery before use. 1.When the battery level is 0%, the backlight and alarm functions will be disabled, and the device will automatically shut down. In that case, you should charge the battery in time.
- Page 17 7.Storage Environment: -20℃~45℃, 65%±20%RH (best in 0°C ~30°C, 65% ±10% RH) If you store the device when the battery is completely drained, the battery can sink into a deep discharge that can't be recharged. On the contrary, if you store the device when the battery is fully charged, a part of the battery capacity may lose which shortens the service time of the battery.
- Page 18 4)Power off any other Bluetooth devices or disable their Bluetooth functions in the connection range. 5)Long press the POWER button for 30 seconds to reset the device. 6)Try to delete other Bluetooth connections on your phone or tablet. 7)Make sure that your phone or tablet is running the latest version of the operating system.
- Page 19 ℉ ℃ Blue Rare 110℉ 43℃ Rare 120℉~130℉ 49℃~54℃ Medium Rare 130℉~135℉ 54℃~57℃ 135℉~145℉ 57℃~63℃ Beef Medium Medium Well 145℉~155℉ 63℃~68℃ Well Done 155℉~165℉ 68℃~74℃ USDA 160℉ 71℃ Recommendations GROUND MEATS USDA Minimum 160℉ Minimum 71℃ Ground Beef, Pork, Recommendations Lamb Meats USDA...
- Page 20 ℉ ℃ USDA Ground Poultry Minimum 165℉ Minimum 74℃ Recommendations Beef Brisket 190℉~205℉ 88℃~96℃ Medium 137℉ 58℃ Pork Well Done 150℉+ 66℃+ Sausage 160℉ 71℃ Pre-Cooked Ham 120℉ 49℃ Pork Ribs-Bbq 190℉-205℉ 88℃~96℃ Porkshoulder 190℉-205℉ 88℃~96℃ -BBQ POULTRY-Legs 170℉~180℉ 77℃~82℃ And Thigh USDA Minimum 145℉...
- Page 21 250℉~300℉ (121℃~149℃). This item carries a 1-year warranty against defects in either compo- nents or workmanship. During this period, products that prove to be defective will, at the discretion of INKBIRD, be either repaired or replaced without charge. - 19 -...
- Page 22 changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 23 INKBIRD TECH.C.L Support@inkbird.com www.inkbird.com 4/F E, Bldg 713, Pengji Industrial Zone, Liantang St, Luohu Dist, Shenzhen, China. V 1.0...
- Page 24 骑马订 尺寸 ：100mm *130mm...
