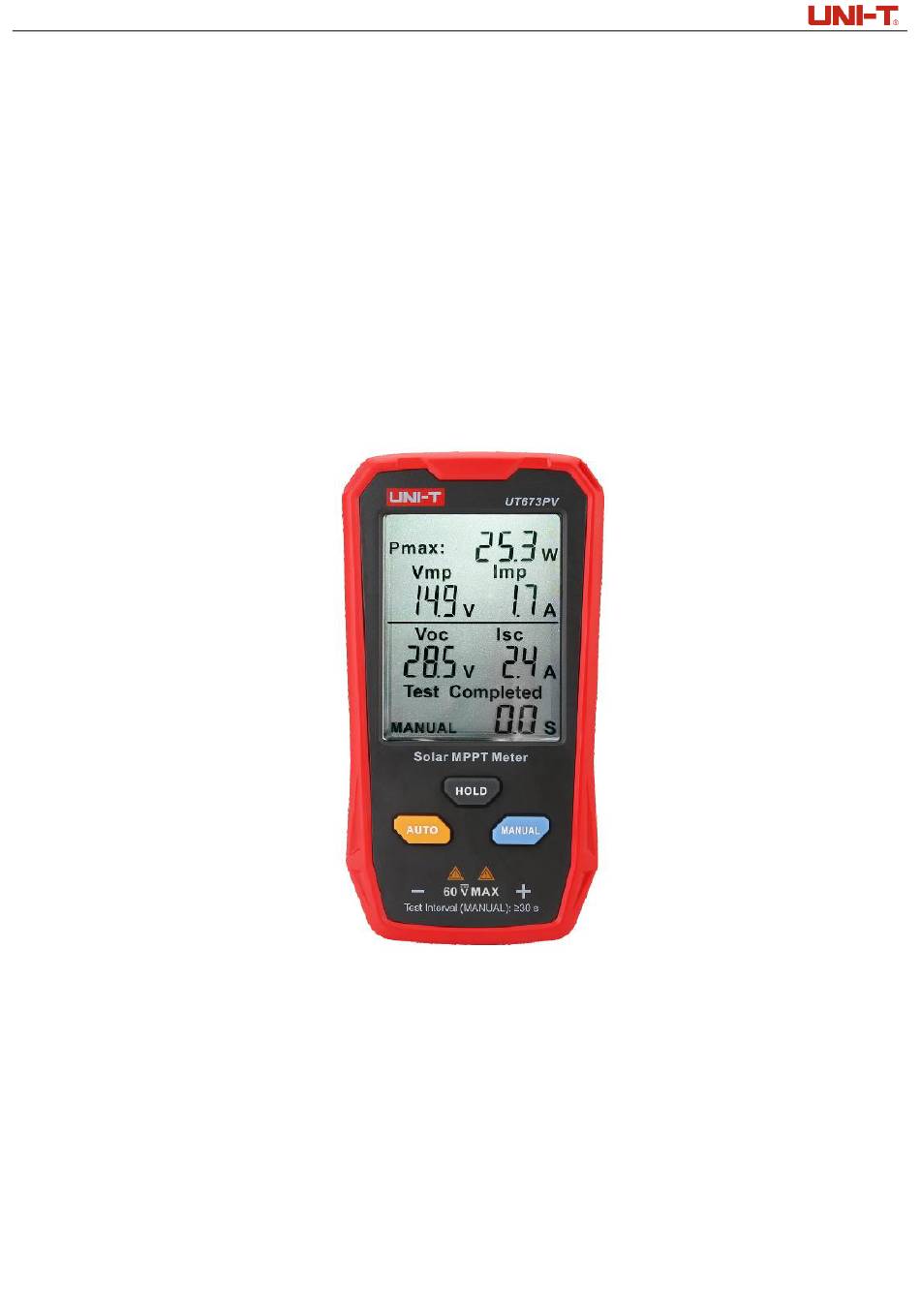

- Page 1 UT673PV User Manual UT673PV User Manual 1 / 7...

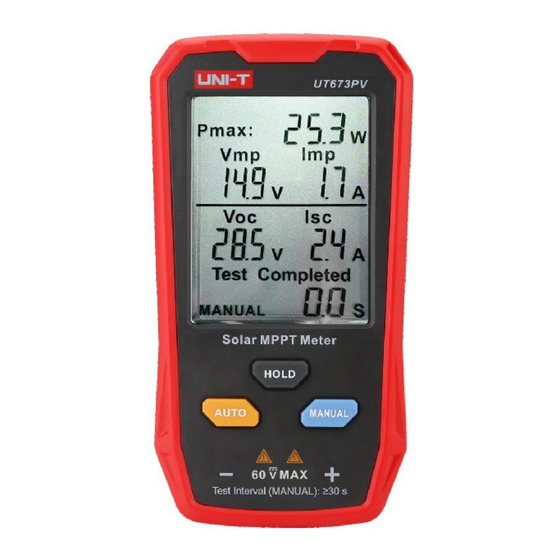

- Page 2 Ⅰ. Overview UT673PV Solar MPPT Meter can measure the maximum power of solar module rapidly. It has the ability to measure maximum power (Pmax) of solar module, open-circuit voltage (Voc), and short-circuit current (Isc) at the same time and display all parameters on the screen.
- Page 3 UT673PV User Manual Meter may be compromised or lost without following the operating instructions. Please check the Meter and test leads before use to avoid any damage or problem. Please stop use if exposed test lead, damaged case, abnormal display and other problems occur.
- Page 4 UT673PV User Manual Ⅶ. External Structure (Figure 1） LCD display Functional buttons Hanging hook Positive input terminal Negative input terminal Ⅷ. LCD Display 4 / 7...
- Page 5 UT673PV User Manual Symbol Description Overload Data hold Overtemperature Maximum displayed measured power: This is the maximum power when a solar panel generates power under the condition of current light intensity. Voltage of maximum power point: This is the maximum voltage when a solar panel generates power under the condition of current light intensity.
- Page 6 UT673PV User Manual interval for protecting the Meter is designed (the triggering of MANUAL button is enabled when pressed at intervals of 5S for ≤100W; and 15S for >100W). “Test Completed” flashes on the screen for three times if the AUTO/MANUAL button is triggered within the set waiting time. The triggering of the AUTO/MANUAL button is enabled when pressed after the countdown is up（the...
- Page 7 UT673PV User Manual 4. If the symbol “ ” appears on the display, please stop use until the Meter cools down. XⅠ. Specifications Accuracy: ± (a% of reading + b digits); guaranteed for 1 year Ambient temperature: 0℃～40℃(32℉～104℉); relative temperature: ≤75%...
