Summary of Contents for UNI-T UT343A

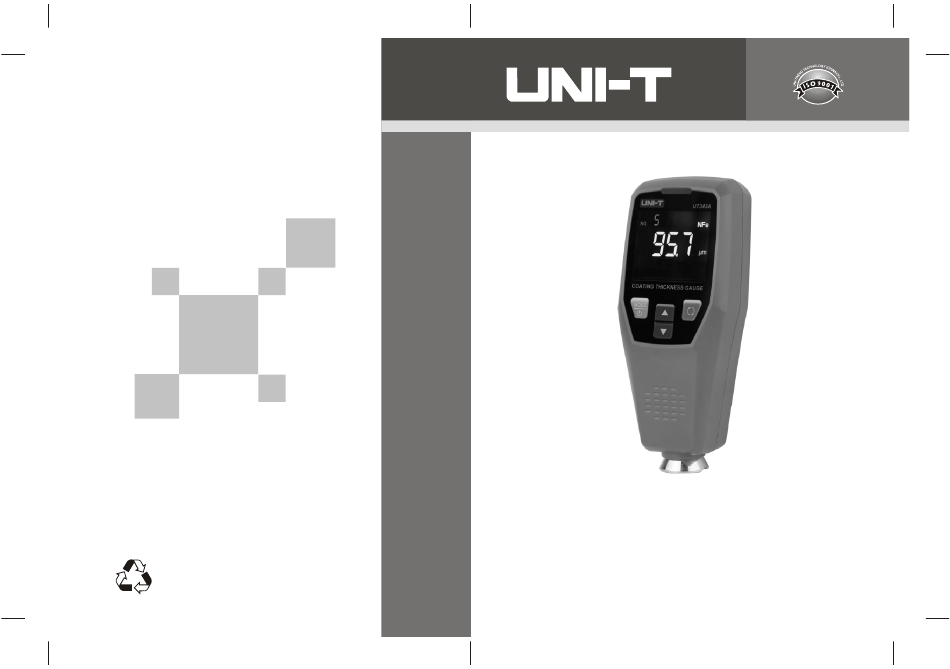

- Page 1 UT343A Coating Thickness Gauge User Manual P/N:110401110306X...
- Page 2 This warranty is the only compensation you can obtain. Uni-T rend will not be responsible for any special, indirect, incidental or subsequent damage or loss caused by any reason or speculation. As some areas...
- Page 3 UT343A User Manual UT343A User Manual I. Overview UT343A is a high-performance coating thickness gauge that can measure coating thickness on both ferrous and non-ferrous metals. This device has features of high precision, conductive coating Table of Contents measurement, stable and reliable performance and non-destructive measurement, etc.
- Page 4 UT343A User Manual UT343A User Manual 4. Clean the gauge casing with a soft cloth and mild detergent. Do not 6. Single and multi-point calibration methods are adopted to correct use abrasives or solvents to avoid damage to the gauge.
- Page 5 UT343A User Manual UT343A User Manual B. Display Interface Ferrous substrate Non-ferrous substrate (rotated) (rotated) mil (rotated) Measured value μm (rotated) Stored data number symbol C. Buttons Interface Normal measurement Stat/set/view data/calibration Short Long Operation Short press Long press press...
- Page 6 UT343A User Manual UT343A User Manual C. Menu Settings V. Operating Instructions Long press the button in the normal measurement mode to enter A. Power on/off the menu settings mode. "SET" will show on the LCD, as shown in the Power on: long press the button until the screen is on.
- Page 7 UT343A User Manual UT343A User Manual substrate, it will automatically enter the magnetic induction operating Short press the button to adjust the setting value upward, and short mode. If the substrate of the measured object is a non-ferromagnetic press the button to adjust the setting value downward.
- Page 8 UT343A User Manual UT343A User Manual 5. Factory Reset E. Calibration When the LCD displays "SET" and "rSt" symbols, it is in the factory In the normal measurement mode, long press the button to enter reset setting state. Short press the...
- Page 9 UT343A User Manual UT343A User Manual After completing the zero point calibration, it will automatically enter the estimated to be in the range of 0.0um to 50.0um, only the calibration calibration point 2 (ie the calibration point of 50.0um). Place the 50.0um of 0.0um and 50.0um is required.
- Page 10 UT343A User Manual UT343A User Manual VI. Performance Indexes A. Technical Indexes Metric/imperial Unit conversion µm/mil unit conversion The LED lights up Range Thickness Resolution Accuracy Description Function in the corresponding √ LED alarm color when the value exceeds the set range for alarm.
- Page 11 UT343A User Manual UT343A User Manual B. General Specifications 1. Refresh rate: 0.5s 2. Sensor type: magnetic induction and eddy current composite sensor 3. Impact resistance: can withstand 1 meter drop 4. Power: 1.5V (AAA) alkaline batteries (2 pcs) 5. Product size: 117×53×37mm 6.
