Summary of Contents for UNI-T UT385

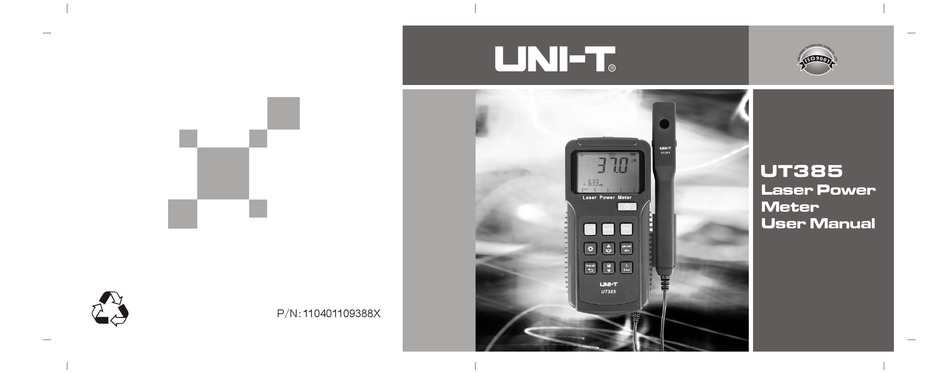

- Page 1 Laser Power Meter User Manual P/N:110401109388X...
- Page 2 This warranty does not apply to damages caused by accident, negligence, misuse, modification, contamination or improper handling. The dealer shall not be entitled to give any other warranty on behalf of Uni-T rend. If you need warranty service within the warranty period, please contact your seller directly.
-
Page 3: Table Of Contents
UT 385 User Manual UT 385 User Manual 1. INTRODUCTION UT385 laser power meter is stable, safe and reliable tool for applications such as Table of Contents laboratories, laser device manufacturers and industrial enterprises. 1. Introduction ----------------------------------------------------------------------------- 2 2. FEATURES 2. -
Page 4: Safety Instruction
UT 385 User Manual UT 385 User Manual 4. SAFETY INSTRUCTION 5. STRUCTURE DESCRIPTION 1) Never stare into the laser beam directly or expose eyes to the reflected laser light, otherwise ① Device eyesight impairment or even blindness may occur . Especially the high-frequency laser, such as ②... -
Page 5: Lcd Functions
UT 385 User Manual UT 385 User Manual Audio alarm Maximum measurement 6. LCD FUNCTIONS Data hold Minimum measurement Average measurement Relative value Secondary display area for maximum, Auto range minimum, average value and so on Data storage number USB connection Auto power off Data storage icon Battery status... -
Page 6: Buttons Description
UT 385 User Manual UT 385 User Manual 7. BUTTONS DESCRIPTION S.ult: set upper limit threshold rSt?: restore settings : Power on/off dEL?: delete saved data In power off status, long press the button 1s to power on Short press button to exit the setting mode. -
Page 7: Operation Instruction
UT 385 User Manual UT 385 User Manual : Save/Down Short press button to adjust setting value (long press to rapidly adjust). Short press move the cursor to the left, while short press to move the cursor to the right. In normal measurement mode, long press the button to save the current measured value, the icon will blink if 199 groups of data storage have been fulfilled. - Page 8 UT 385 User Manual UT 385 User Manual Short press REL button can enter relative value mode. It will subtract the relative value from the actual measuring value, the difference will be displayed in main display area as shown in figure: Short press button to adjust setting value (long press to rapidly adjust).
-
Page 9: Operation Steps And Notices
UT 385 User Manual UT 385 User Manual 5) Review or Delete Storage Value Short press button to enter data review mode as shown in figure. Then short press button again to delete specified data, short press to cancel deleting. After setting, short press button to exit. -
Page 10: Parameters And Specifications
UT 385 User Manual UT 385 User Manual 10. PARAMETERS AND SPECIFICATIONS 2) General Specifications LCD display: 4-digit LCD display, maximum display value: 3999 1) Main Parameters Over-range indication: OL will be displayed when the laser power exceeds the range of 39.99mW. Range Accuracy Function... -
Page 11: Online Measurement
UT 385 User Manual UT 385 User Manual 12. BATTERY REPLACEMENT 3) Environmental Conditions Indoor use 1)Remove the screw of the battery cover as shown in figure: Maximum altitude: 2000m Class of pollution: Class 2 Operating humidity and temperature: 0°C~40°C (≤85%RH) Storage humidity and temperature: -10°C~50°C (≤75%RH) 4) Reference Standards JJG 249-2004;... - Page 12 UT 385 User Manual UT 385 User Manual This manual is subject to change without prior notice.
