DirekTronik 20113659 Operation Manual

70m 4k60hz hdmi 4x4 seamless matrix video wall / multi-viewer
Hide thumbs

Advertisement

Quick Links

Download this manual
Best.nr: 20113659
70m 4K60Hz HDMI 4x4 Seamless Matrix
Video Wall / Multi-Viewer
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 20113659 and is the answer not in the manual?

Questions and answers

Related Manuals for DirekTronik 20113659

Summary of Contents for DirekTronik 20113659

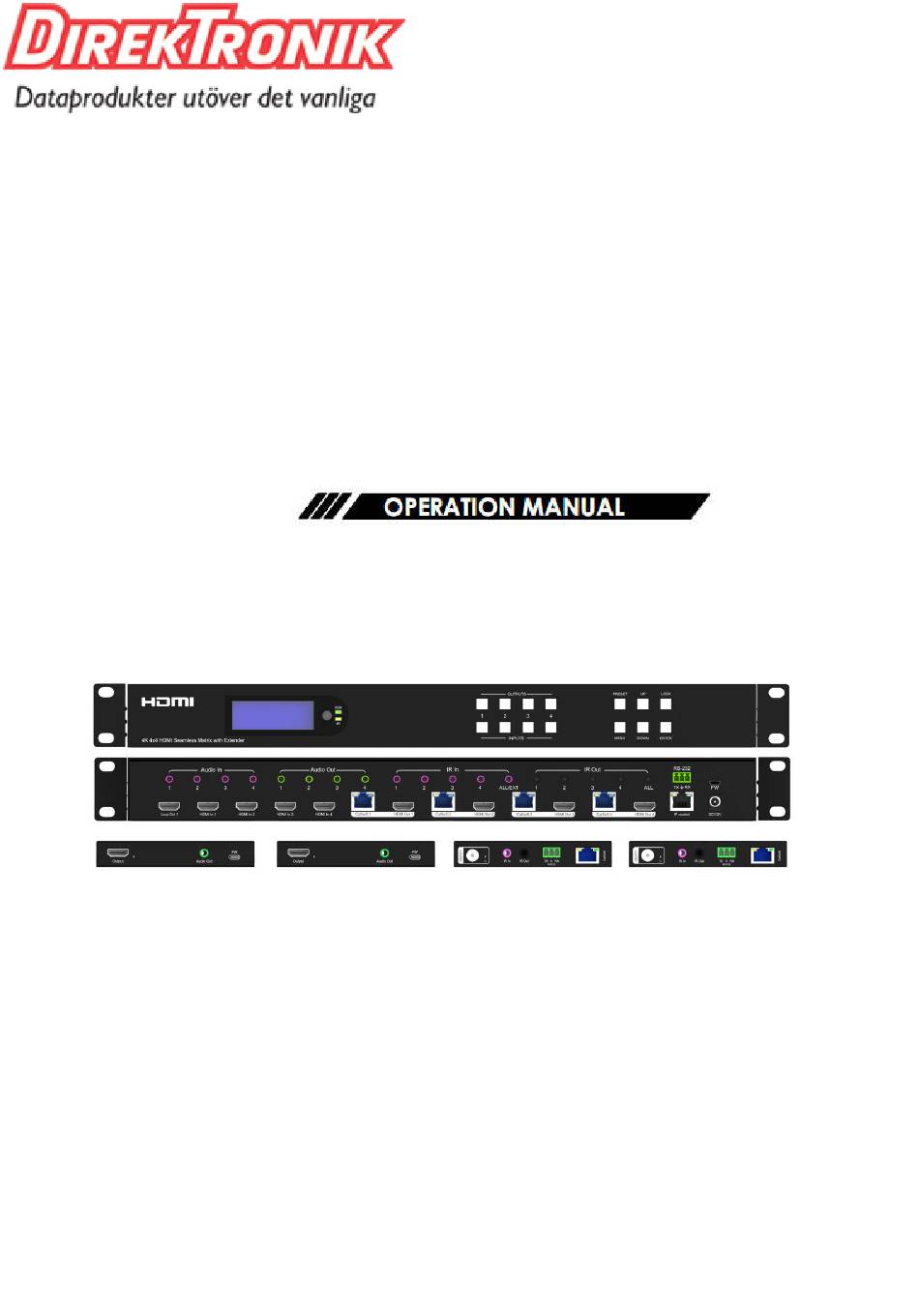

  • Page 1 Best.nr: 20113659 70m 4K60Hz HDMI 4x4 Seamless Matrix Video Wall / Multi-Viewer...
  • Page 2 Operating Instruction Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
  • Page 3 Operating Instruction Catalogue 1. Features ......................4 2. Package Contents ..................4 3. Specifications ....................5 4. Panel Descriptions ..................5 5. Wiring Diagram ....................7 6. Input / Output Channel Key Operation ............8 7. Panel Control ....................9 8. Remote Control ..................30 9.
  • Page 4 Operating Instruction 1. Features 70m 4x4 HDMI 2.0 Seamless Matrix, 4 HDMI Inputs to 4 RJ45 Outputs with 4 HDMI  Loops out Supports 4K@60HZ 4:4:4 8bit, HDCP 2.2  Seamless Matrix Mode: 4 in 4 out no switching delay and signal loss ...
  • Page 5 Operating Instruction 3. Specifications Operating Temperature Range -5 to +40°C(23 to +104 °F) Storage Temperature Range -10 to +60°C(-14 to +140 °F) Operating Humidity Range 5 to 90 % RH (no condensation) Video Input Connectors 4x HDMI Type A, 19-pin, female Video Output Connectors 4x RJ45 female and 4x HDMI Type A, 19-pin, female Bandwidth...
  • Page 6 Operating Instruction Matrix Rear Panel ① Audio In ② Audio Out ③ IR In & Out ④ RS232 port ⑤ HDMI IN x4 with 1x HDMI Loop out ⑥ HDMI OUT x4 ⑦ RJ45 x4 ⑧ Ethernet port ⑨ Power input 12V/4A and FW updating Port 4.3.
  • Page 7 Operating Instruction Wiring Diagram Seamless Matrix Mode Video Wall Mode...
  • Page 8 Operating Instruction 5.3 Multi-Viewer mode 6. Input / Output Channel Key Operation Channel Button Method 1. Directly press the number key, such as input channel 1, and select "1" to press (only OUT1-4 when the output port is selected, the input channel number will be valid) 2.
  • Page 9 Operating Instruction 7. Panel Control Video Signal switching includes 4 switching channels, which can be configured as input/output according to requirements to form a matrix of 1×4 ~ 4×4. It can switch any input signal to the outputs Operation format: “output channel” + “input channel” For example: 1.
  • Page 10 Operating Instruction Output There are 5 sub-menus in Output interface: output1~4 + all, which are used for individual or all output settings. Each channel contains 3 function items, which are video, audio and power. Choose a desired output before setting each video or audio. There are 9 options in video: Source, Onoff, Pattern, Format, Genlock, Mirror, Coord, PIP, Image There are 4 options in Audio: HDMI onoff, HDMI SRC, DEC onoff, DEC SRC.
  • Page 11 Operating Instruction 2）Onoff Turn on/off one pr all of the outputs, the video of outputs are turned on by default. 3）Pattern Built-in image of a matrix can be showed onto the TV by Pattern, which is mainly used for testing in special occasions.
  • Page 12 Operating Instruction 5）Genlock Genlock is used to follow an output. Default Off. Output 1 is gray and cannot be selected. Only Output 2, Output 3 and Output 4 can be enable. Switching the following output resolution will effect other output images. (The image will be black for a while, and the resolution will be subject to the following output and cannot be changed.) Operation: ①...
  • Page 13 Operating Instruction 6）Mirror This function can implement left and right mirror, up and down mirror. X indicates left and right mirror, Y indicates up and down mirror. The default is off. There are 3 options including Crop, Zoom and Windows in the sub-menu, corresponding to crop and Zoom images respectively.
  • Page 14 Operating Instruction 7）Coord Coord is mainly used to set the coordinate parameters of the image. There are 3 types including Coord and Zoom and Gap, which are CROPX0, CROPY0, CROPX1.CROPY1, ZOOMX0, ZOOMY0, ZOOMX1, CROPY1, GapX, GapY and a total of 10 coordinate parameters. The function can implement the parameter adjustment of multi-viewer and video wall.
  • Page 15 Operating Instruction 8）PIP PIP is mainly used for the layer priority. By default, each output has 4 layers. It can change the sequence of the layers in multi-viewer mode. Each layer can choose an output. You can turn on/off this function by Status.
  • Page 16 Operating Instruction 9）Image Image is used to set the parameters of output image. There are 4 parameters: Brightness, Contrast, Saturation, Hue Parameter Ranges from 0 to100 and it is 50 by default. Audio There are 4 function options in Audio: HDMI Onoff, HDMI SRC, DEC Onoff, DECSRC. It can implement audio switching independently, turn off HDMI audio output and audio De-embedding as well as Audio De-embedding switch to another source.
  • Page 17 Operating Instruction 2）HDMI SRC HDMI SRC enables switching to different input signal sources. It supports switching to analog audio in 1~4, HDMI input1~4. Auto HDMI indicates following the corresponding input. Auto ENC indicates the corresponding audio in, that is, audio follow the matrix input’s switch, not switch other audio source.
  • Page 18 Operating Instruction Power Power is used to turn off HDMI output of 5V. It is different from “Onoff” as there is a blue screen displayed on TV while selecting “off” in “Onoff”. Image will completely turn off after selecting “Off” in “Power”. It is on by default. Input There are there functions options in Input interface, which are Video, Audio and EDID.
  • Page 19 Operating Instruction 1) Video Video can implement the on-off of input channel. All the outputs correspond to the input will have no image and audio when this input is set to “Off”. Pattern provides built-in pattern, the selected built-in pattern will replace the input source image. 2) Audio Audio delay setting range（0~50, auto）, the default is auto.
  • Page 20 Operating Instruction Switching the Default1 to input1 as shown in the following example: Operations: ① Select “EDID” in the main menu and press “ENTER” ② Press “UP” or “DOWN” to select “ Input 1”( the fifth option indicates that select all input) ③...
  • Page 21 Operating Instruction Operations: ① Select “Preset” in the main menu and short press “ENTER” to enter the preset interface. Call indicates calling preset, Save indicates saving preset, Clean indicates cleaning preset. ② Save preset: select “Save” in Preset and select “Mode” or “Scene” to save in “Scene” or “P2P” ③...
  • Page 22 Operating Instruction Cascade Video Wall: It is used to set the position of the video wall in accordance with the silkscreen marking order of the matrix. You can determine the actual TV location based on the OSD on the TV. H_NUM indicates the horizontal number of paring walls.
  • Page 23 Operating Instruction Demo operation: Timer can set the rotation time, the default is “Endless”, the minimum time is 3 seconds. Select indicates if need to perform the scenario in rotation. If this parameter set to yes, the scenario will be played. If this parameter is not set to yes, the scenario will be skipped. Config Config can set network, RS232, LCD, OSD, MENU, user EDID, system.
  • Page 24 Operating Instruction...
  • Page 25 Operating Instruction Operation of TCP/UDP port number change ① Select “Config” in the main menu and press “ENTER” ② Press “UP” or “DOWN” to select “ network ” ③ Click “ENTER” to enter the next sub-menu ④ Press “UP” or “DOWN” to select baud rate “Port” to enter the next sub-menu ⑤...
  • Page 26 Operating Instruction 3) LCD Bright can adjust the brightness of the LCD screen, and Timer can set the backlight time. The default backlight level is 8 and the time is 30 seconds. Bright 0 to 8 indicates the backlight level, and 0 indicates off. Timer can be set to 3 seconds ~ Endless.
  • Page 27 Operating Instruction 4) OSD Setting There are 4 options in OSD: User, Time, Menu, Info. User indicates the output coordinate time of OSD. Time indicates the running time after the device is powered on. Menu indicates that the LCD is mapped to the TV. INFO indicates the displayed time of audio and video information.
  • Page 28 Operating Instruction 6) User EDID User EDID can store the EDID of the output display device of the connection matrix to user1~4, which can be stored in default, output, and temp1, and then used in the EDID list. 7) System System Setting includes reboot, Power, and Factory.
  • Page 29 Operating Instruction Timed Off Timed Off indicates timed standby, Timed On indicates timed wake up, and Auto Sleep Factoty Simple: Partially restores factory settings User: Restores all factory settings Info Query device information, including input, output, system, and log. The information can only be queried and cannot be set or changed.
  • Page 30 Operating Instruction 8. Remote Control ：Standby or power on ：Mute button ：Return to upper level ：Move to next level ：Picture off Page turn by 100 of the last sub-menu ： Page turn by 10 of the last sub-menu ： ：Menu ：All output ：Up ：Menu...
  • Page 31 Operating Instruction Audio Extraction *Corresponding to the front end, the current channel can only select one audio each time 1) Analog Audio ① HDMI 1~4 indicates that HDMI output audio select audio from other input signal sources ②Auto HDMI indicates that follow with the HDMI Matrix Switching.
  • Page 32 Operating Instruction 10. RS232 Control 10.1 Open CommUart Assistant. 10.2 Comport setting: Choose correct COM port that connect to PC in parameter configuration area. Serial Port Default Settings Baud Rate 115200 bps(Default) Parity Bits None Data Bits Stop Bits 10.3 Enter Port Command in Send options.
  • Page 33 Operating Instruction The following table is only an example.Please refer to the list of instructions. Type Format Value Regulation Command head #cmd without Can be used to search command,after receiving command, the system will feedback all Explain open command format fields #cmd Example1 Search all open command...
  • Page 34 Operating Instruction W-1x2 1x2：1 Vertical x 2 Horizontal W-1x3: 1 Vertical x 3 Horizontal W-1x4: 1 Vertical x 4 Horizontal W-2x1：2 Vertical x 1 Horizontal...
  • Page 35 Operating Instruction W-2x1 W-2x1: 2 Vertical x 1 Horizontal W-3x1: 3 Vertical x 1 Horizontal...
  • Page 36 Operating Instruction W-4x1：4 Vertical x 1 horizontal 11.2 Multi-Viewer Mode M-2x2 M-3x1-R...
  • Page 37 Operating Instruction M-3x1-L M-3x1-U M-3x1-D M-1+234 A...
  • Page 38 Operating Instruction M-1+2 1+3 1+4 A M-1+2 3+4 A M-1+34 2+34 A...
  • Page 39 Operating Instruction M-POP A M-2x1+34 A M-2x1+3 2x1+4 A...
  • Page 40 Operating Instruction 11.3 Image cropping and TV coordinate change Input starting point：CROP X0(0)，CROP Y (0)， Input ending point：CROP X1(3000)，CROP Y0(3000) Input scaling starting point：ZOOM X0(0)，ZOOM Y0(0)， Input scaling ending point：ZOOM X1(6000)，ZOOM Y0(6000) 11.4 Cascading Cascading Video Wall: need to use multiple matrices, all the matrices needs set to the same number of video wall;...
  • Page 41 Operating Instruction 12. Web Control 12.1 Change IP address of PC Before configuring the device through the website, it is necessary to configure the IP address of the computer configured with the device (mainly to ensure that the computer and the device are set in the same network segment). 1).
  • Page 42 Operating Instruction 13. WEB 13.1 Status In the Status interface, you can view the matrix information 2) Input INFO displays the resolution, audio and HDCP information of the input signal source 3) Output EDID Info interface will display partial EDID information of TV 4) Device Info displays MCU version and web version 13.2 Input Menu...
  • Page 43 Operating Instruction 5) USER EDID can save the EDID as Bin document to User1~4. Click Browse to find the route of EDID, select User1~4 and click upload to save it. 6) Copy EDID of sink to User1~4 13.3 Output Menu 1) Rename: Output name can be changed, double click output1~4 to modify 2) Video: Click the green button to enable or disable the video outputs.
  • Page 44 Operating Instruction 5) Audio Dec: Turn on/off Audio Extraction 6) Dec Src: audio extraction switching, click the drop-down list box to select HDMI1-4 and AUTO HDMI options. The options take effect automatically without confirmation. 7) Format: Output video format, the default is auto. Following the output TV EDID specifications, you can manually select 4K60, 4K30, 1080P60, 720P60.
  • Page 45 Operating Instruction 1) Seamless matrix can complete P2P, input1, input2, input3, input4. Click the drop-down box to select "Call", click "Save" to save the current scene, and click "Clear" to clear the scene to the default value. 2) Video wall can customize the new scene. The default mode is the built-in wall mode of the system. Click the drop-down box to select call, click Save to save the current scene, and click “Clear”...
  • Page 46 Operating Instruction 13.6 Advance 1) PIP mode switch. Click the button to enable or disable the mode. 2) Crop-X0 (Image cropping starting point of horizontal coordinates, range 0~6000) Crop-Y0 (Image cropping starting point of vertical coordinates, range 0~6000) Crop-X1 (Image cropping ending point of horizontal coordinates, range 0~6000) Crop-Y1 (Image cropping ending point of vertical coordinates, range 0~6000) Zoom-X0 (Image scaling starting point of horizontal coordinates, range 0~6000) Zoom-Y0 (Image scaling starting point of vertical coordinates, range 0~6000)
  • Page 47 Operating Instruction 14. Firmware Updating 14.1 MCU application layer upgrade Open the software UART_ISP.exe in PC, select the correct port, the baud rate 115200, input the "A1" in port, and select the path (.bin format) of the program, and click “update” to complete the upgrade.
  • Page 48 Operating Instruction 15. Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. 16. Product Service 1) Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged;...
