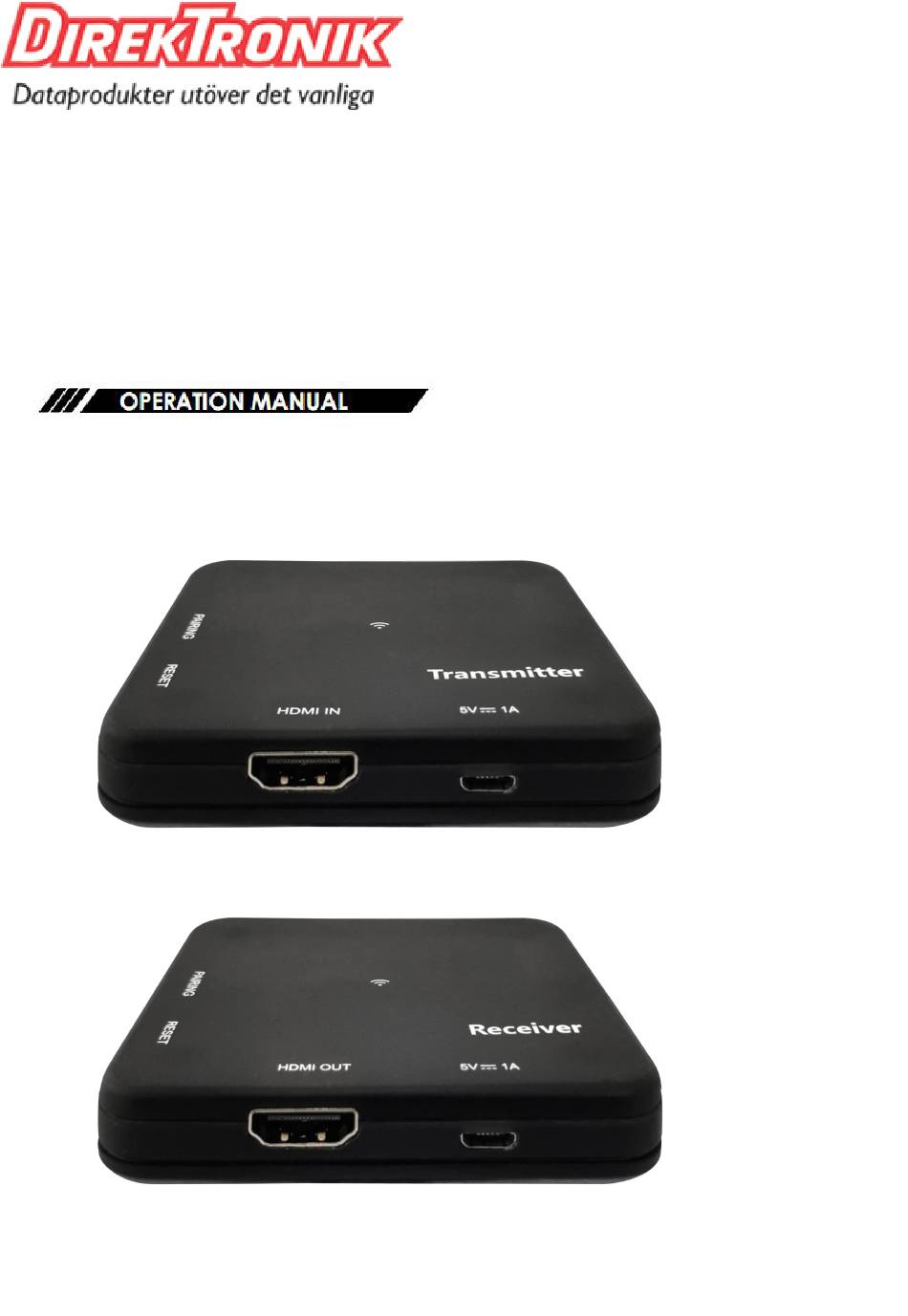

- Page 1 Best.nr: 20102099 30M HDMI Extender over 60GHz WIRELESS Support 4K@30Hz YUV 4:4:4 8Bit...
-
Page 2: Dear Customer
Operating Instructions Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Notice The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute the warranty of any kind, express or implied. -
Page 3: Specifications
Operating Instructions 2. SPECIFICATIONS Operating Temperature Range 0 to +40℃(+32 to +104℉) Operating Humidity Range 10 to 90%RH (No Condensation) HDMI Receptacle x 1 Connectors on Transmitter Power USB x 1 HDMI Receptacle x 1 Connectors on Receiver Power USB x 1 HDMI input/output port HDMI Type A 19-pin HDMI Version... -
Page 4: Panel Descriptions
Operating Instructions 4. PANEL DESCRIPTIONS Transmitter Panel ① HDMI input port ② DC 5V port ③ Reset button ④ Pairing button ⑤ Signal indicator Receiver Panel ① HDMI input port ② DC 5V port ③ Reset button ④ Pairing button ⑤... -
Page 5: Connecting And Operating
Operating Instructions 5. Connecting and operating 1. Connect 1 source such as a Blu-Ray Player, game console, STB, etc. to the HDMI input on the transmitter 2. Connect 1 display such as an HDTV or HD Projector to the HDMI output on the receiver . 3. -
Page 6: Installation Instructions
Operating Instructions 6. Installation instructions 1.Screw up the adjustable bracket to TX and RX back side hole. 2.Adjust the TX and RX position within 0°-90°by rotating the 90° rotation ball. 3.Loosen 360° rotation ball, then able to adjust TX and RX position within 0°-360° 4.TX and RX can be fixed on the wall with 3 mounting holes on the bottom of the adjustable bracket Remark: Adjust TX and RX to 45°... - Page 7 Operating Instructions 7. LED status indicator and button instruction 1. The device includes one LED status indicator: yellow data transmission indicator The indicator always on when data transmission stable through WIFI;Otherwise, the indicator will flickering. 2. Reset button: when power on, long press the reset button 5S to reset the device. 3.
-
Page 8: Maintenance
Operating Instruction MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE 1) Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged; (b) Objects or liquids have gotten into the unit;... -
Page 9: Mail-In Service
Operating Instructions MAIL-IN SERVICE When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone and/or email address where you can be reached. LIMITED WARRANTY LIMITS AND EXCLUSIONS 1) This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage.
