Summary of Contents for DirekTronik 25-0564

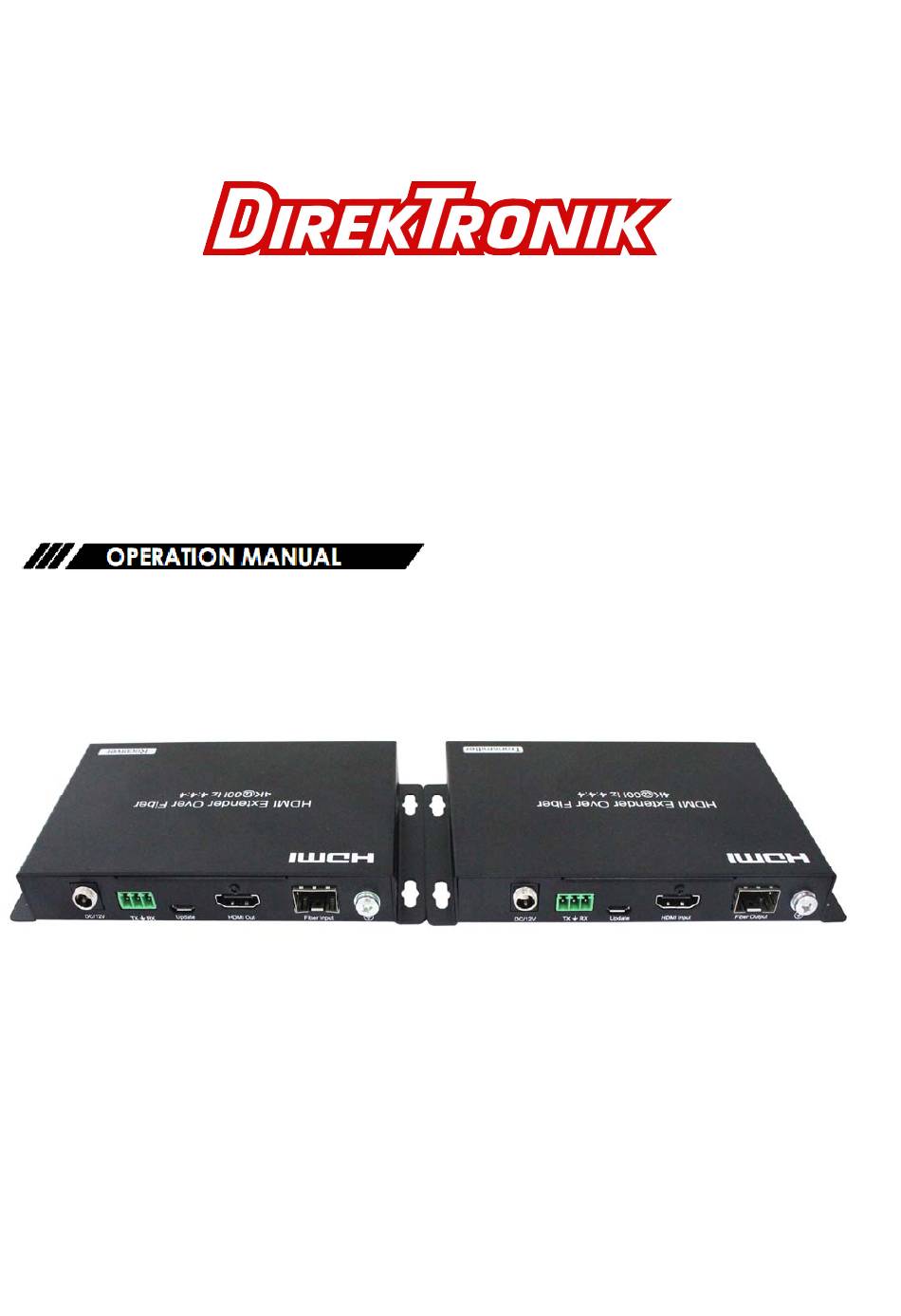

- Page 1 25-0564 60KM HDMI2.0 Extender Over Fiber 4K@60hz YUV4:4:4, HDR...
-
Page 2: Table Of Contents
Operating Instructions Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. TABLE OF CONTENTS Features Package Contents Specifications Panel Descriptions EDID Introduction... -
Page 3: Specifications
Operating Instructions PACKING CONTENTS 1). Main Unit. HDMI Extender Over Fiber 2). DC12V 1A Power Supply X2 3). Operating Instructions *The Unit Without Modules SPECIFICATIONS Operating Temperature Range -5 to +40℃(+23 to +95℉) Operating Humidity Range 5 to 90%RH (No Condensation) Video Input(Transmitter) 1xHDMI Type A, 19-pin, female Video Output(Receiver) -
Page 4: Panel Descriptions
Operating Instructions PANEL DESCRIPTIONS Transmitter Panel ① HDMI In/Out indicator ② LINK TX/RX indicator ③ Power indicator ④ EDID Reset ⑤ Power input ⑥ RS232 input ⑦ Upgrade USB port ⑧ HDMI input ⑨ Fiber output ⑩ Grounding EDID Introduction 1. -
Page 5: Rs232 Pass Through Function
Operating Instructions Receiver Panel ① HDMI In/Out indicator ② LINK TX/RX indicator ③ Power indicator ④ Power input ⑤ RS232 output ⑥ Upgrade USB port ⑦ HDMI output ⑧ Fiber input ⑨ Grounding RS232 Pass through function 1. Support Bi-directional transmission by RS232 pass through. 2. -
Page 6: Micro Usb Upgrade Firmware
Operating Instructions Micro USB Upgrade Firmware Operation Step 1. Copy the upgrade files in the PC from the CD. 2. Powered on the Extender. 3. Connect the Extender with the PC via the Micro USB cable via Micro USB Interface. 4. - Page 7 Operating Instructions 7. Click “connect” powered off the host Then restart it, the chipset’s specification will show. Program upgrade main interface（P4） 8. Click select the upgrade file to upload. 9. Click “Update”,Then System upgrade. 10. When appear “Update success” dialog box，Program upgrade done. Note: If the connection is upgraded to half current, the upgrade progress bar will stop.
-
Page 8: Connecting And Operating
Operating Instructions Connecting and Operating 1. Assemble modules with single/multi mode, single/duplex fiber to the HDMI Extender.(4Kx2K requires 10G module) 2. Connect the HDMI input source to input port of the Transmitter of the Fiber Extender by HDMI cable. (Max. 3M for 4K@60Hz, YUV 4:4:4, 8bit‐HDR). 3. -
Page 9: Maintenance
Operating Instruction MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE 1) Damage requiring service: The unit should be serviced by qualified service personnel if: The DC power supply cord or AC adaptor has been damaged; ... - Page 10 Operating Instruction Mail-In Service When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone and/or email address where you can be reached. LIMITED WARRANTY LIMITS AND EXCLUSIONS 1) This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage.
