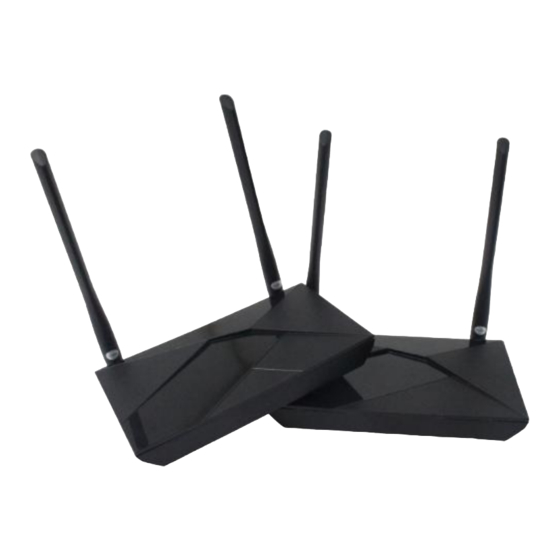

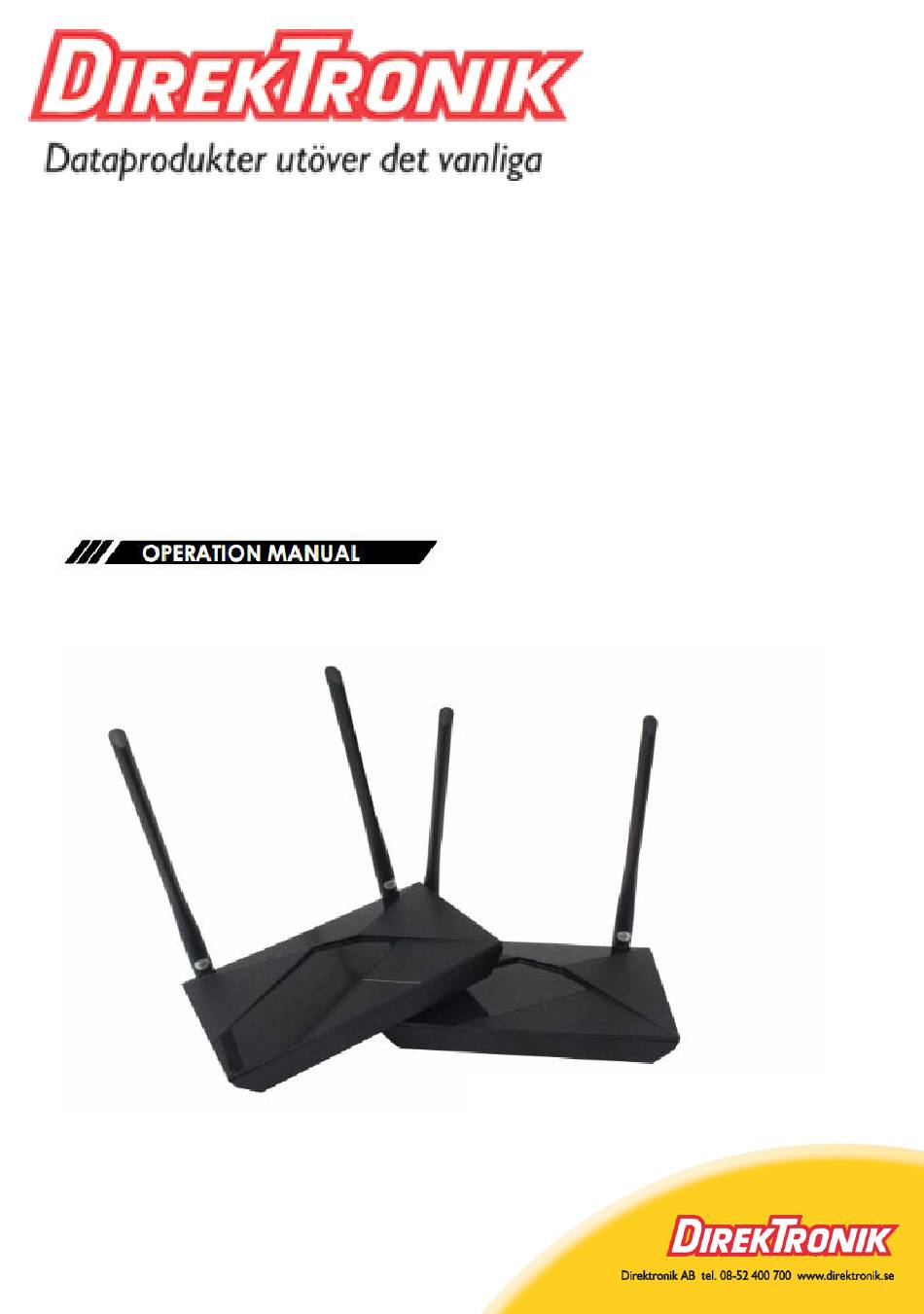

- Page 1 Best.nr: 20101676 100M HDMI Extender over WIRELESS with loop out, Support 1080P@60Hz YUV 4:4:4 8Bit...
-
Page 2: Dear Customer
Operating Instructions Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Notice The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute the warranty of any kind, express or implied. -
Page 3: Specifications
Operating Instructions 2. SPECIFICATIONS Operating Temperature Range 0 to +40℃(+32 to +104℉) Operating Humidity Range 10 to90%RH (No Condensation) HDMI Receptacle x 2 (1xHDMI input, 1xHDMI loop output) Connectors on Transmitter Power DC Receptacle x 1 IR Receptacle x 1(for IR TX ) HDMI Receptacle x 1 Connectors on Receiver IR Receptacle x 1(for RX cable) -
Page 4: Panel Descriptions
Operating Instructions 4. PANEL DESCRIPTIONS Transmitter Panel HDMI input port ② HDMI loop out port ① ③ IR out Port ④ DC 12V port ⑤ Built-in reset button ⑥ ON-OFF switch Receiver Panel ① HDMI output port ② IR In port ③... -
Page 5: Connecting And Operating
Operating Instructions 5. Connecting and operating 1. Connect 1 source such as a Blu-Ray Player, game console, STB, etc. to the HDMI input on the transmitter 2. Connect 1 display such as an HDTV or HD Projector to the Loop HDMI output on the transmitter. - Page 6 Operating Instructions 6. LED status indicator instruction 1. The device includes two kinds of LED status indicator: green power indicator and blue data transmisson indicator Power LED: Green, indicator light always on during power on, indicator light out when power Action LED: Blue, indicator light blinks at 4Hz per second during wifi data transmisson, indicator light always on when no data transmisson 2.
- Page 7 Operating Instructions 3. Video outputt interface prompts when no signal from input...
-
Page 8: Maintenance
Operating Instructions MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE 1) Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged; (b) Objects or liquids have gotten into the unit;... -
Page 9: Mail-In Service
Operating Instructions MAIL-IN SERVICE When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone and/or email address where you can be reached. LIMITED WARRANTY LIMITS AND EXCLUSIONS 1) This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage.
