DirekTronik 20109919 Operation Manual

70m 4x4 hdmi 2.0 matrix extender with 4 hdmi loop out

Advertisement

Quick Links

Best.nr: 20109919
70m 4x4 HDMI 2.0 Matrix Extender
with 4 hdmi loop out
Support 4K60hz YUV4:4:4, 18Gbps, HDR (HLG)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 20109919 and is the answer not in the manual?

Questions and answers

Summary of Contents for DirekTronik 20109919

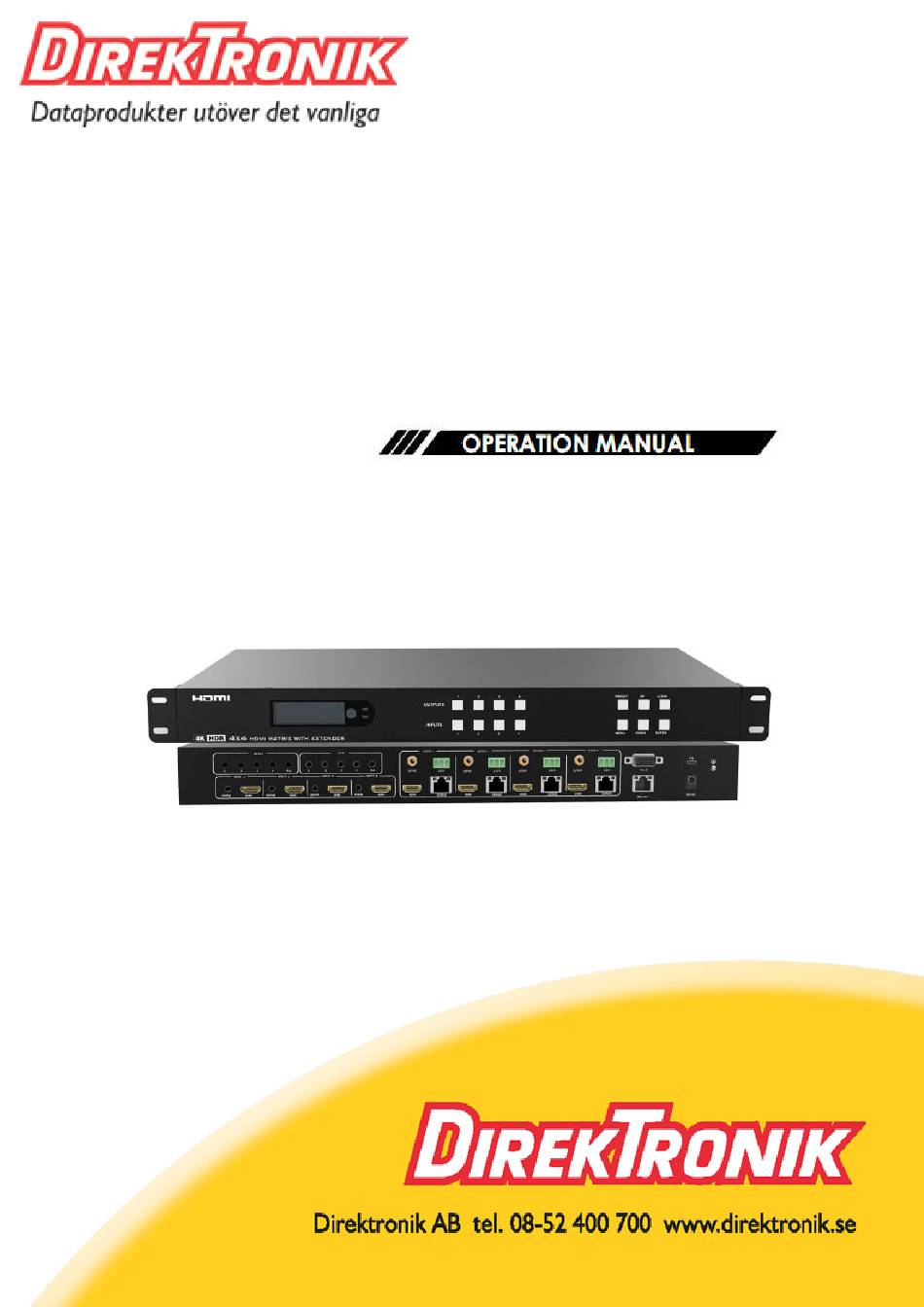

  • Page 1 Best.nr: 20109919 70m 4x4 HDMI 2.0 Matrix Extender with 4 hdmi loop out Support 4K60hz YUV4:4:4, 18Gbps, HDR (HLG)
  • Page 2 Operating Instruction Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
  • Page 3: Table Of Contents

    Operating Instruction Catalogue 1. Features............................. 4 2. Package Contents..........................4 3. Specifications............................ 4 4. Panel Descriptions..........................5 5. Wiring Diagram..........................6 6. Input / output channel key operation....................7 7. Video switching operation........................ 8 7.1. Video switch...........................8 7.2. Video Control......................... 8 The specific operation as follows:..................8 7.3.
  • Page 4: Features

    Operating Instruction 1. Features 4 x HDMI input and 4 x Ethernet output with 4 x HDMI Loop out  HDMI 2.0 version support 4K@60Hz YUV4:4:4, 8bit, 18G, HDR-HLG  Extending 4K60Hz video signal to distances up to 70m over single Cat6 Ethernet cable ...
  • Page 5: Panel Descriptions

    Operating Instruction 4. Panel Descriptions ① LCD: Showing Matrix information ② Output button OUT1~4 & Input button IN1~4 ③ Function button: PRESET; MENU; UP; DOWN; LOCK; ENTER ① IR input port x4 & All in & IR output port x4 & All out ②...
  • Page 6: Wiring Diagram

    Operating Instruction 5. Wiring Diagram...
  • Page 7: Input / Output Channel Key Operation

    Operating Instruction 6. Input / output channel key operation Channel Button method 1. Directly press the number key, such as input channel 1, and select "1" to press (only Input 1-4 when the output port is selected, the input channel number will be valid) 2.
  • Page 8: Video Switching Operation

    Operating Instruction 7. Video switching operation 7.1. Video switch The signal switch includes 4 free switching channels, which can be configured as input/output according to the requirements, forming a matrix of 1 x 4 ~ 4 x 1, which can switch any input. Signal to 1 channel output or all channel output.
  • Page 9 Operating Instruction ②Then use “UP””DOWN”button to select“Switching” ③Press“ENTER”enter next page ④Press “UP””DOWN”button to select the output(The fifth port means ALL) ⑤Press“ENTER” ⑥Press “UP””DOWN”to select the input ⑦Press“ENTER”,Switching Done 2.Video On/Off Turn on/off any output video or all outputs video ①Select“Video”in the menu and press“ENTER” ②Then use “UP””DOWN”button to select“On/Off”...
  • Page 10: Audio Control

    Operating Instruction 7.3. Audio Control The Audio Control has four sub menu 1. Input Audio (Default On) 2. Embed (Default Off) 3. Analog out (Default On) 4. SPDIF out (Default On) The specific operation is as follows: 1. Input Audio HDMI input audio switch.
  • Page 11 Operating Instruction...
  • Page 12: Edid Set Mode Interface

    Operating Instruction 7.4. EDID Set Mode Interface Default EDID Default-1 1080P60hz-2.0 Default-5 4K60hz-YUV420-5.1 Default-2 1080P60hz-5.1 Default-6 4K60hz-YUV444-2.0-HDR:HLG Default-3 1080P60hz-7.1 Default-7 4K60hz-YUV444-5.1-HDR:HLG Default-4 4K60hz-YUV420-2.0 Default-8 4K60hz-YUV444-7.1-HDR:HLG EDID Mode can set each input’s EDID, Include: Default EDID; User EDID; Copy EDID; Copy UTP Remote side EDID.
  • Page 13: Preset Interface

    Operating Instruction 7.5. Preset Interface The PRESET interface can save the current video, audio, EDID, system Settings, etc., and supports 8 different scenes. Scenes can be modified and cleared through web pages, commands, and panels. The default preset is consistent with factory Settings...
  • Page 14: Setup Mode Interface

    Operating Instruction 7.6. SETUP mode Interface SETUP mode can set the device’s RS-232 baud rate, POC Switch, DHCP, Reboot, Factory Specific operations are as follows...
  • Page 15: Rs-232 Baud Rate Setting

    Operating Instruction 7.6.1. RS-232 Baud Rate setting It has 4 kinds of baud rates inside the device: 38400,19200,57600,115200 Default Baud Rate is: 115200 ①Select“Setup”in the menu and press“ENTER” ②Then use “UP””DOWN”button to select the “BAUD”and press “ENTER” ③Press “UP””DOWN”button to select the baud rate and press “ENTER”to confirm 7.6.2.
  • Page 16: Reboot Setting

    Operating Instruction 7.6.4. Reboot setting 7.6.5. Factory setting Factory Run: Reset Video, Audio, EDID, Setup setting, Factory User: Reset Video, Audio, EDID, Setup setting, Preset, Device name.
  • Page 17 Operating Instruction...
  • Page 18: Info Mode Interface

    Operating Instruction 7.7. INFO mode Interface Check the device information: IP or System information...
  • Page 19: Audio Extraction

    Operating Instruction 8. Audio Extraction HDMI audio output supports uncompressed audio PCM, compressed audio Dolby and DTS, with a maximum support of 7.1 sound channels and a maximum sampling rate of 192KHz. Analog audio supports PCM 2.0 channel. S/PDIF audio supports Dolby or DTS, 5.1 channel. 9.
  • Page 20: Ir System

    Operating Instruction 10. IR system The matrix can pass the IR signal through the IR system to the HDMI source or pass the IR signal from the HDMI source to the HDMI sink Dual way IR using: Step1: “IR IN” is for UTP output, “IR OUT” is for input channel Step2: “IR IN ALL”...
  • Page 21 Operating Instruction In the parameter configuration area, select the serial port number that the serial line connects to the PC Baud rate: 115200 (default) Data location: 8. Stop bit: 1 Check bit: no Then can input commands in the command input area to control the local or remote receiver Instructions: 1.
  • Page 22: Web Control

    Operating Instruction Please refer to the " Command list" for details. Example: ALL output switches to input 4. Operation format: #video_d out0 matrix=4 12. Web Control 1). Connect the Ethernet port of matrix to the Ethernet port on PC by a crossover cable with RJ45 connectors.
  • Page 23: Enter Web And Control

    Operating Instruction 12.1. Enter Web and Control Enter the default IP address of the matrix: 192.168.1.168 Account: admin Password: admin 12.2. “Status” interface: Input Info & Output Info & Device Info: 1. CONNECT: The input status display bar. After connecting with the device, it will check whether the current input terminal has access signal source.
  • Page 24: Input" Interface

    Operating Instruction 12.3. “Input” interface: Noted: Double Click the Rename column can change the name of the ports. 12.4. “Output” interface:...
  • Page 25: Preset" Interface

    Operating Instruction 12.5. “Preset” interface: 12.6. “Network” interface: 12.7. “System” interface:...
  • Page 26: Fw Upgrade

    Operating Instruction 13. FW UPGRADE First upgrade MCU (layer of application) and then upgrade CPLD, finally upgrade HTML (web page), (CPLD, HTML, MCU all support to use USB Micro port for upgrading) A1 means MCU A1 01 means GUI C0 means CPLD F0 means HTML 13.1.
  • Page 27: Html (Web Gui) Upgrade

    Operating Instruction 13.3. HTML (WEB GUI) Upgrade: Open the software UART_ISP_V1.6.exe on PC, select the correct port and baud rate 115200, enter "F0" in Port, then select the path of the program (XXX. HTML) in PATH, and click UPDATA to complete the upgrade...
  • Page 28: Maintenance

    Operating Instruction MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE (1)Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged; (b) Objects or liquids have gotten into the unit;...
