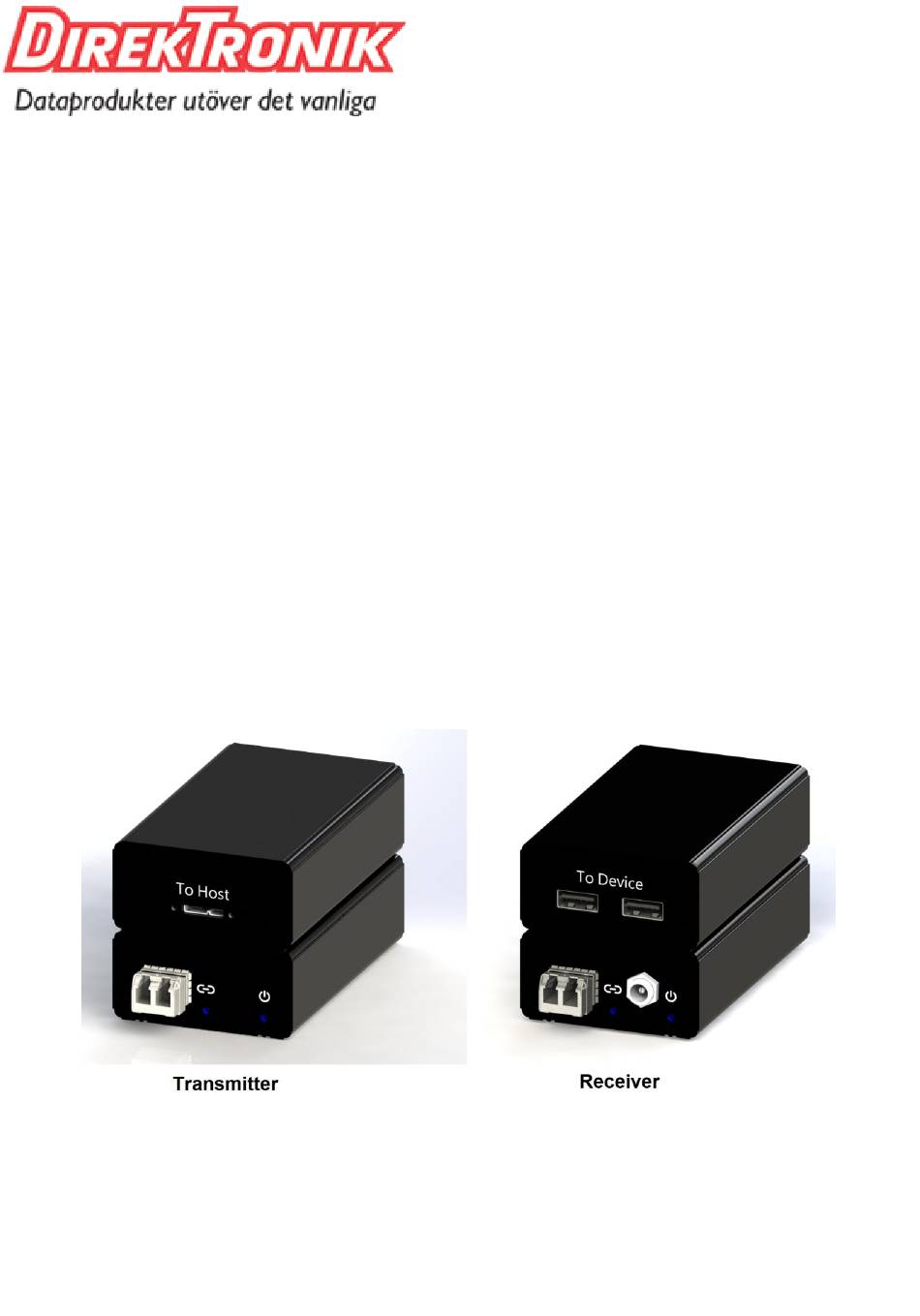

- Page 1 Best.nr: 20111497 USB 3.2 Gen1 Extender compatible to USB2.0/1.1 over Multimode 2LC 350M User’s Manual...
- Page 2 INTRODUCTION Congratulations on your purchase of the USB 3.2 Gen1 Extender compatible to USB2.0/1.1 over Multimode 2LC 350M. This USB 3.2 Gen 1 extender provides the ability to extend the distance of your USB 3.2 Gen1 (5Gbps) device up to 350m over Multimode 2LC fiber.
- Page 3 Transmitter Unit TYPE DESCRIPTION Connect USB 3.0 cable to Host Computer’s 1 USB Micro-B receptacle USB 3.0 port 2 Fiber Slot Connect Multimode Fiber cable Indicates a valid interconnection between 3 LINK LED (Blue) Transmitter and Receiver Unit LED turns on when power supplied from 4 Power LED(Blue) Host System...
- Page 4 Receiver Unit TYPE DESCRIPTION 1 2 x USB-A receptacle Connect USB-A devices 2 Fiber Slot Connect Multimode Fiber cable Indicates a valid interconnection between 3 LINK LED (Blue) Transmitter and Receiver Unit 4 DC power Port Connect Power Adaptor LED turns on when power adaptor is 5 Power LED(Blue) supplying power...
- Page 5 APPLICATION ⚫ Security and Monitoring ⚫ Remote storage ⚫ Conferencing cameras extension ⚫ Microsoft Kinect extension ⚫ Google camera extension ⚫ Logitech BRIO 4K Pro camera extension INSTALLATION： 1. Connect the Transmitter to Host 3.0 port via the supplied USB type A to USB Micro B cable 2.
- Page 6 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received. Including interference that may cause undesired operation.
