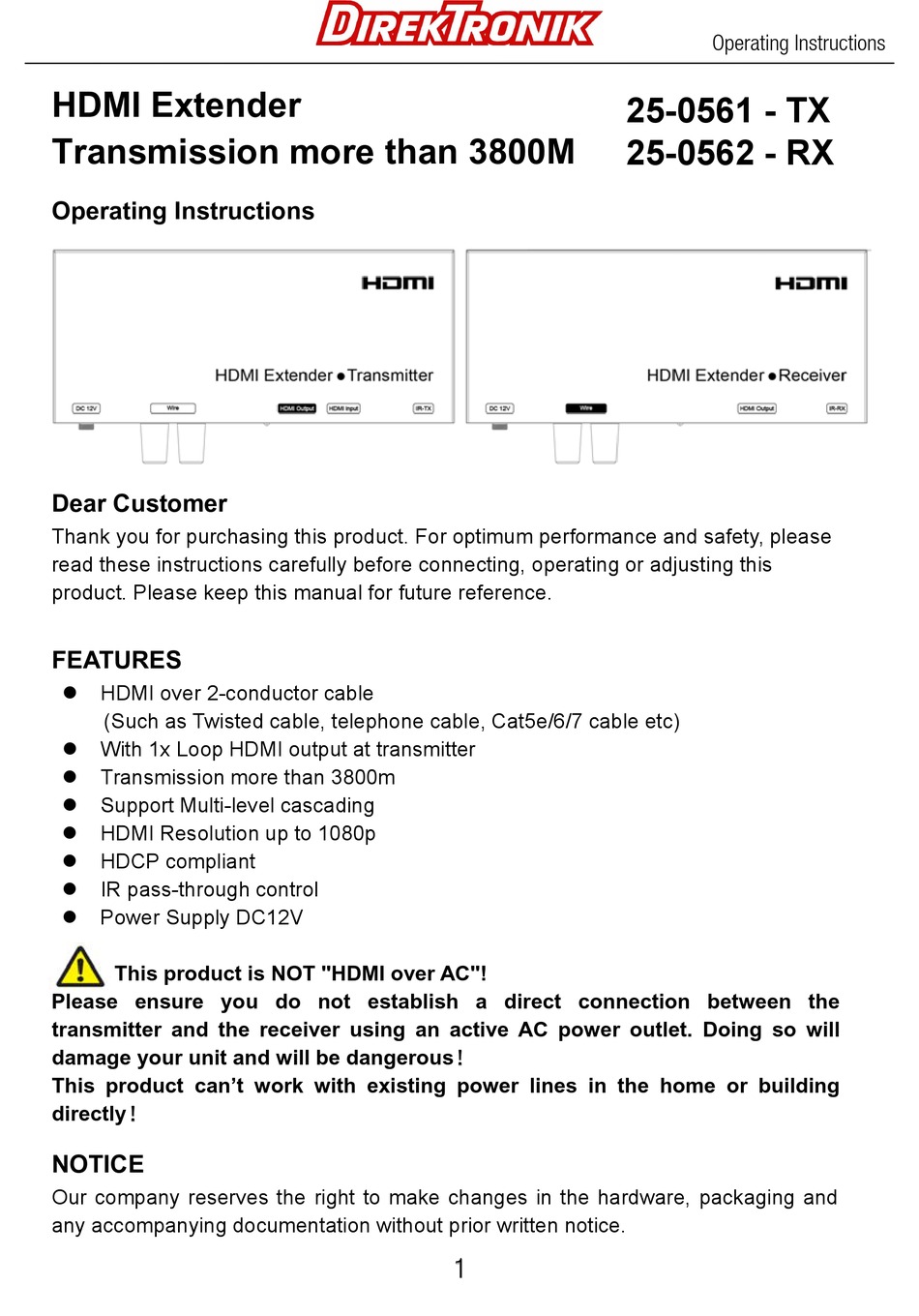

HDMI Extender
Transmission more than 3800M
Operating Instructions
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please
read these instructions carefully before connecting, operating or adjusting this
product. Please keep this manual for future reference.
FEATURES
HDMI over 2-conductor cable
(Such as Twisted cable, telephone cable, Cat5e/6/7 cable etc)
With 1x Loop HDMI output at transmitter
Transmission more than 3800m
Support Multi-level cascading
HDMI Resolution up to 1080p
HDCP compliant
IR pass-through control
Power Supply DC12V
This product is NOT "HDMI over AC"!
Please ensure you do not establish a direct connection between the
transmitter and the receiver using an active AC power outlet. Doing so will
damage your unit and will be dangerous！
This product can't work with existing power lines in the home or building
directly！
NOTICE
Our company reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
25-0561 - TX
25-0562 - RX
1
Operating Instructions
Advertisement
Table of Contents
Related Manuals for DirekTronik 25-0561
Summary of Contents for DirekTronik 25-0561
-
Page 1: Operating Instructions
Operating Instructions HDMI Extender 25-0561 - TX 25-0562 - RX Transmission more than 3800M Operating Instructions Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. - Page 2 Operating Instructions TABLE OF CONTENTS Specifications Package Contents Panel Descriptions Connecting and Operating Typical Application Maintenance Product Service Warranty SPECIFICATIONS -10 to +50℃(+14 to +122℉) Operating Temperature Range Operating Humidity Range 10 to 90%RH (No Condensation) Support Audio Format LPCM audio format Transmission Distance 3800m 2-Conductor cable(Recommend to use 12AWG-19AWG cable) DTV/HDTV:480i/ 480P/576i/576P/720P/1080i/1080P...
-
Page 3: Panel Descriptions
Operating Instructions PANEL DESCRIPTIONS Transmitter Panel 1) Power input port 2) Terminal Post to connect 2-conductor cable 3) Green indicator of data status 4) Red indicator of power input 5) HDMI Output port 6) HDMI Input port 7) IR-TX Receiver Panel 1) Power input port 2) Terminal Post to connect 2-conductor cable 3) Green indicator of data status... -
Page 4: Connection Diagram
Operating Instructions Connection Diagram Application 1: Unicast Application 2: Multicast Application 3: Multi-level cascading... -
Page 5: Product Service
Operating Instructions CONNECTING AND OPERATING 1) Connect the HDMI input source (such as HD-DVD/PS3/STB etc) into transmitter over HDMI cable. 2) Connect the transmitter to the receiver by any 2-conductor cable. 3) Connect the HDMI output (such as HD-LCD/HD-DLP) into the receiver over HDMI cable. - Page 6 Operating Instructions WARRANTY If your product does not work properly because of a defect in materials or workmanship, our Company (referred to as "the warrantor" ) will, for the length of the period indicated as below, (Parts(2)Year, Labor(90) Days) which starts with the date of original purchase ("Limited Warranty period"), at its option either(a) repair your product with new or refurbished parts, or (b) replace it with a new of a refurbished product.
