10/100Base-TX Industrial Ethernet Extender
Quick Start Guide
This quick start guide describes how to install and use the Ethernet
Extender. The Ethernet Extender introduced here provides one channel for
Ethernet over existing coaxial cable.

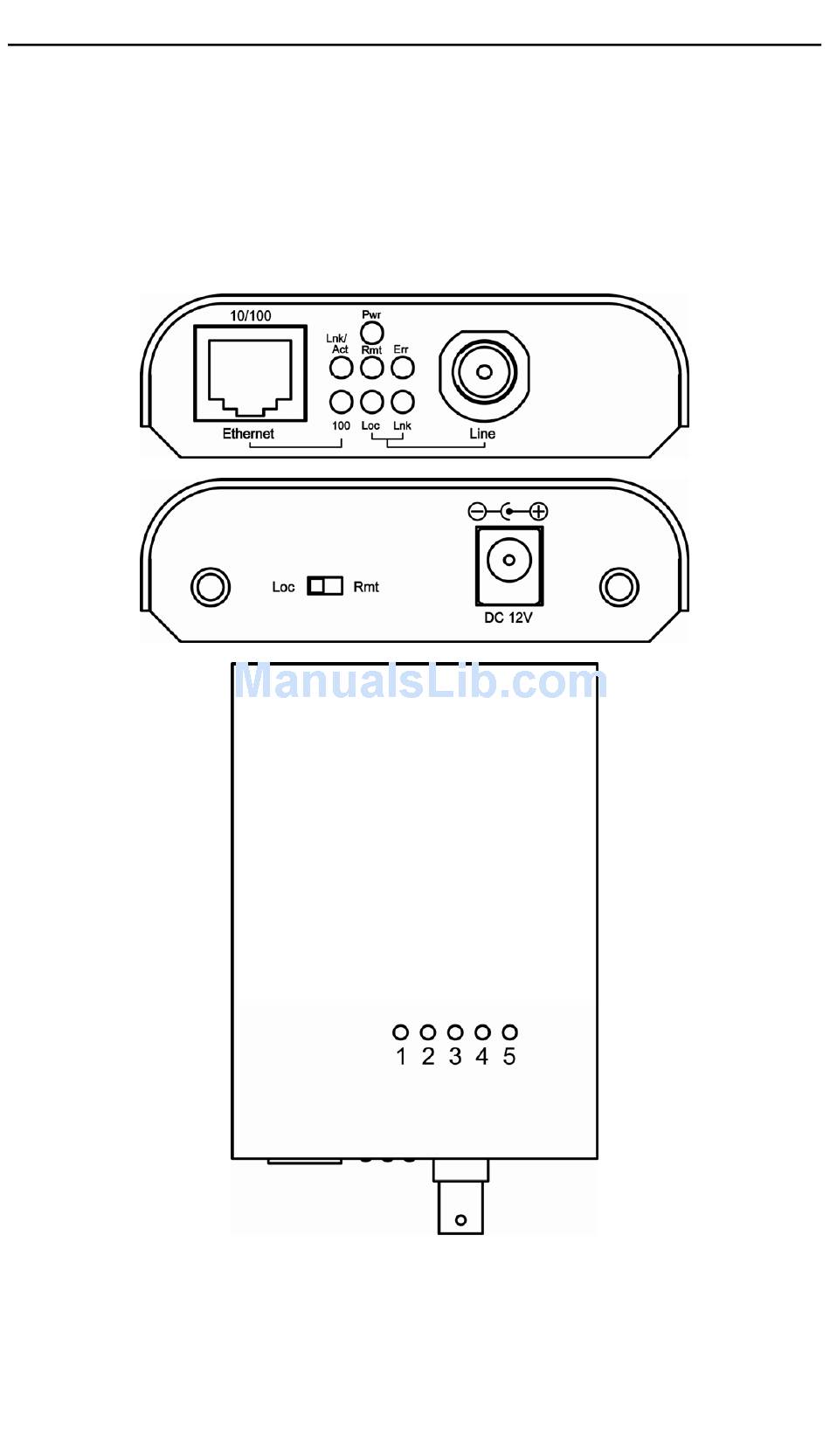

Product Overview
Use DIN-Rail Mounting Kit
Fit the DIN-Rail mounting kit onto the bottom of the unit and fasten the screws.
The Ethernet Extender can use DIN-Rail mounting kit to fix on the DIN-Rail.
1
Advertisement
Table of Contents
Related Manuals for DirekTronik ED3331
Summary of Contents for DirekTronik ED3331
-
Page 1: Quick Start Guide
10/100Base-TX Industrial Ethernet Extender Quick Start Guide This quick start guide describes how to install and use the Ethernet Extender. The Ethernet Extender introduced here provides one channel for Ethernet over existing coaxial cable. Product Overview Use DIN-Rail Mounting Kit Fit the DIN-Rail mounting kit onto the bottom of the unit and fasten the screws. - Page 2 10/100Base-TX Industrial Ethernet Extender Product Features Complies with EN61000-6-2 & EN61000-6-3 EMC Generic standard immunity for Industrial environment. Operates transparent to higher layer protocols. One Ethernet port (RJ-45 connector): 10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto-MDI/MDIX. Complies with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX standards. One Ethernet Extender port (BNC connector): Symmetrical on the VDSL, high-speed Full-duplex 85Mbps communications link over existing coaxial cable.
-
Page 3: Xtender M Ode S Ettings
10/100Base-TX Industrial Ethernet Extender Ethernet Extender Mode Settings Ethernet Extender mode settings are made very simple by means of a switch at the rear panel of the Ethernet Extender. The switch has two positions for Ethernet Extender mode settings. Refer to the table below for more details. - Page 4 10/100Base-TX Industrial Ethernet Extender One Industrial Ethernet Extender is configured as local unit located at local site of Ethernet extension by setting mode switch at rear panel of this Industrial Ethernet Extender to Loc (local mode). The other Industrial Ethernet Extender is configured as remote unit located at remote site of Ethernet extension by setting mode switch at rear panel of this Industrial Ethernet Extender to Rmt (remote mode).
- Page 5 10/100Base-TX Industrial Ethernet Extender Preface This manual describes how to install and use the Ethernet Extender. The Ethernet Extender introduced here provides one channel for Ethernet over existing voice grade copper wire. The Ethernet Extender fully complies with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX standards.
-
Page 6: Table Of Contents
10/100Base-TX Industrial Ethernet Extender Table of Contents Quick Start Guide..........................1 ........................1 RODUCT VERVIEW DIN-R ....................... 1 OUNTING ........................2 RODUCT EATURES ..................3 THERNET XTENDER ETTINGS ....................... 3 ONNECTING TO OWER & LED ......................... 3 RONT ANEL .................... 3 DIAGNOSTIC ROCEDURE Preface .............................. -
Page 7: Product Overview
10/100Base-TX Industrial Ethernet Extender Introduction The Ethernet Extender provides one channel for Ethernet over existing coaxial cable. It can be used as a stand-alone device. Product Overview Product Features Complies with EN61000-6-2 & EN61000-6-3 EMC Generic standard immunity for Industrial environment. Operates transparent to higher layer protocols. -
Page 8: Ethernet Extender Mode Settings
10/100Base-TX Industrial Ethernet Extender One-Channel Ethernet Extender Ports The Ethernet Extender provides one TX port and one Ethernet Extender port. For the TX port, it uses RJ-45 connector and auto senses the speed of 10/100Mbps. For the Ethernet Extender port, it uses BNC connector and auto senses the speed of 1/5/10/20/30/40/50/60/70/75Mbps. -
Page 9: Ethernet Extender
10/100Base-TX Industrial Ethernet Extender LEDs State Indication Power on Steady Pwr stands for POWER Power off Ethernet A valid Ethernet connection established Steady Lnk stands for LINK Transmitting or receiving Ethernet data Lnk/Act Flashing Act stands for ACTIVITY Neither valid Ethernet connection established nor transmitting/receiving Ethernet data Steady Ethernet Connection transferring at 100Mbps... -
Page 10: Installation
10/100Base-TX Industrial Ethernet Extender Installation This chapter gives step-by-step installation instructions for the Ethernet Extender. Selecting a Site for the Equipment As with any electric device, you should place the equipment where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference. -
Page 11: Use Din-Rail Mounting Kit
10/100Base-TX Industrial Ethernet Extender Use DIN-Rail Mounting Kit Fit the DIN-Rail mounting kit onto the bottom of the unit and fasten the screws. The Ethernet Extender can use DIN-Rail mounting kit to fix on the DIN-Rail. -
Page 12: Specifications
10/100Base-TX Industrial Ethernet Extender Specifications Applicable Standards IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX Ethernet over VDSL Fixed Ports 1 x 10/100Mbps Ethernet port with RJ-45 connector 1 x Ethernet Extender port with BNC connector Speed 10Base-T 10/20Mbps for half/full-duplex 100Base-TX 100/200Mbps for half/full-duplex Ethernet Extender 1, 5, 10, 20, 30, 40, 50, 60, 70, 75Mbps...
