8 — Mount the Appliance

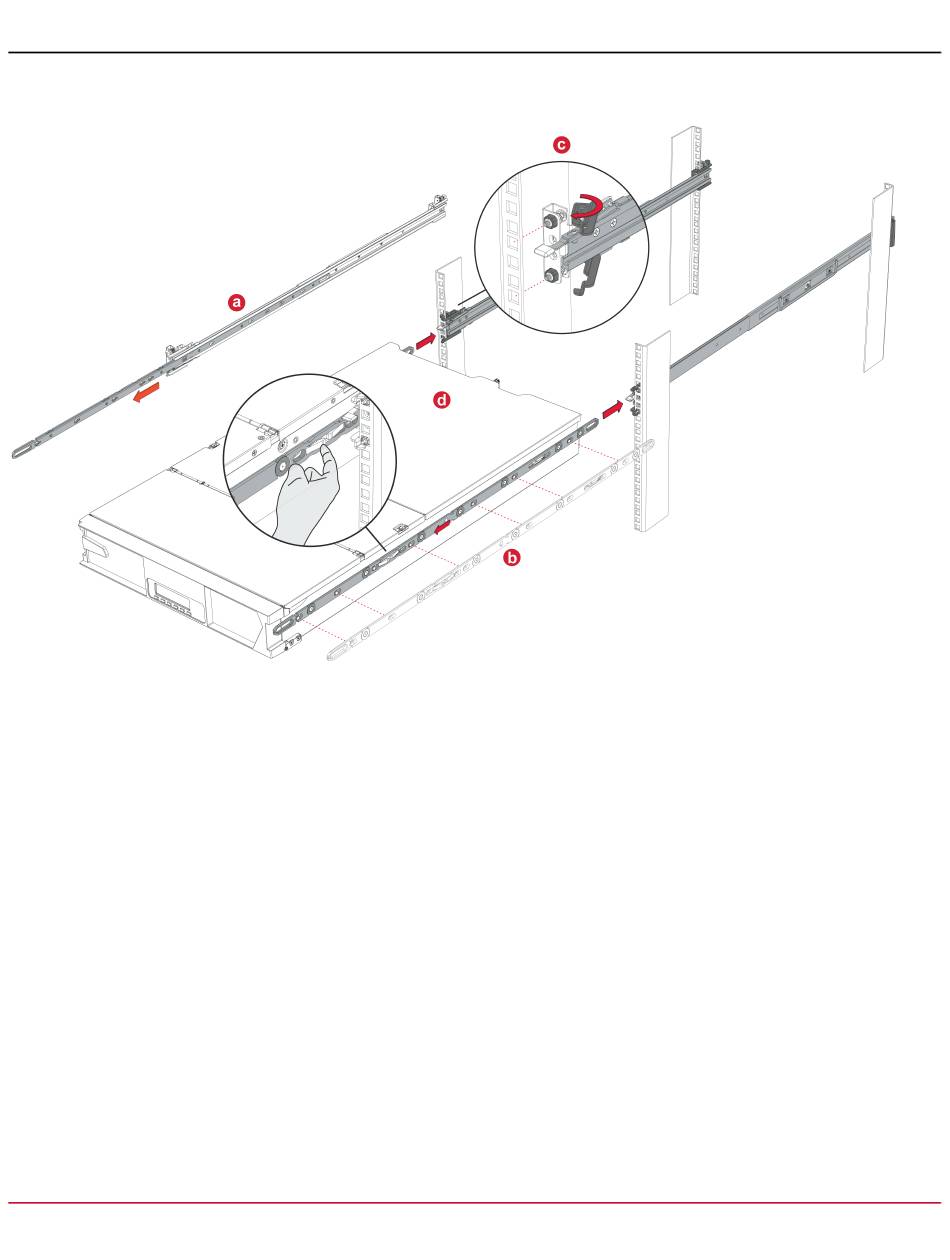

Figure 2: SV-S550 Slide-Rail Assembly
The appliance includes a slide-rail kit that allows the appli-
ance to be mounted in a four- or two-post equipment rack.
The kit provides tool-less racking for four-post racks and al-
lows the appliance to be installed or removed from either the
front or rear of the rack. The slide-rail kit includes:
(2) Inner chassis rails

(2) Outer rack rails

(1) Kit for two-post mounting configurations

NOTE: The following procedure documents how to mount
the appliance in a four-post equipment rack. For complete
instructions, refer the mounting instructions included with
the slide-rail kit.
CAUTION! Before mounting the appliance:
– Power off the appliance and disconnect all cables.
– Verify that the weight of the system does not exceed
the fully populated weight limit for the rack. For more
information, refer to the manufacturer instructions
included with the rack.
– For weight stability, load the rack from the bottom up.
– Read the "Rack Mount Warnings" section of the
Safety and Compliance Guide.
– Take adequate safety and grounding measures to
avoid creating an electrical shock hazard and to pre-
vent bodily injury.
– The appliance is heavy. A two-person lift or mechan-
ical aid is recommended to lift the appliance from the
carton and install it into the rack.
– Do not place objects on the appliance or use it as a
work surface. Its mounting hardware does not sup-
port additional weight.
To mount the appliance in a four-post equipment rack:
1. Attach the inner chassis rails to the appliance:
Disassemble the two slide-rail assemblies by fully

extending each slide rail and sliding out the inner chas-
sis rails. See Figure 2
Attach the two inner rails to the appliance. Align each

rail to the mounting posts on each side of the chassis
Quick Start Guide
(a).
