Disclaimer
By using this product, you signify that you have read, understand, and
accept the terms and conditions of this guideline and all instructions
at https://enterprise.dji.com/d-rtk-3. EXCEPT AS EXPRESSLY
PROVIDED IN AFTER-SALES SERVICE POLICIES AVAILABLE AT HTTPS://
WWW.DJI.COM/SERVICE/POLICY, THE PRODUCT AND ALL MATERIALS
AND CONTENT AVAILABLE THROUGH THE PRODUCT ARE PROVIDED
"AS IS" AND ON "AS AVAILABLE BASIS" WITHOUT WARRANTY OR
CONDITION OF ANY KIND. This product is not intended for children.

Getting Start

Powering On
Charge the D-RTK TM 3 AG (hereinafter referred to as "D-RTK 3") to
activate the internal battery before using for the first time. Make sure
to use a PD3.0 USB charger with the voltage from 9 to 15 V, such as
DJI 65W Portable Charger.
1. Connect the charger to the USB-C port on D-RTK 3. When the
power indicator lights up, it means that the battery has been
successfully activated. Make sure to charge until the indicator
displays green before use.
2. Press, and then press and hold the power button to power on/off
the D-RTK 3.
• When using a non-recommended charger, such as a charger
with 5V-output, the D-RTK 3 can be charged only after
powering off.
Activation Instructions
The D-RTK 3 needs to be activated before using for the first time. The
GNSS signal indicator blinks red when not activated.
1. Power on the aircraft and remote controller. Make sure the aircraft
is linked to the remote controller.
2. Power on the D-RTK 3. Open the DJI Agras app and select D-RTK
Station in Device Management. Select the desired D-RTK 3 in
the search results and wait for the remote controller to display
connecting to the broadcast network of the D-RTK 3.
3. After connecting, activate the D-RTK 3 by following the instructions
on the app. Make sure the remote controller is connected to the
internet during activation.
Setup

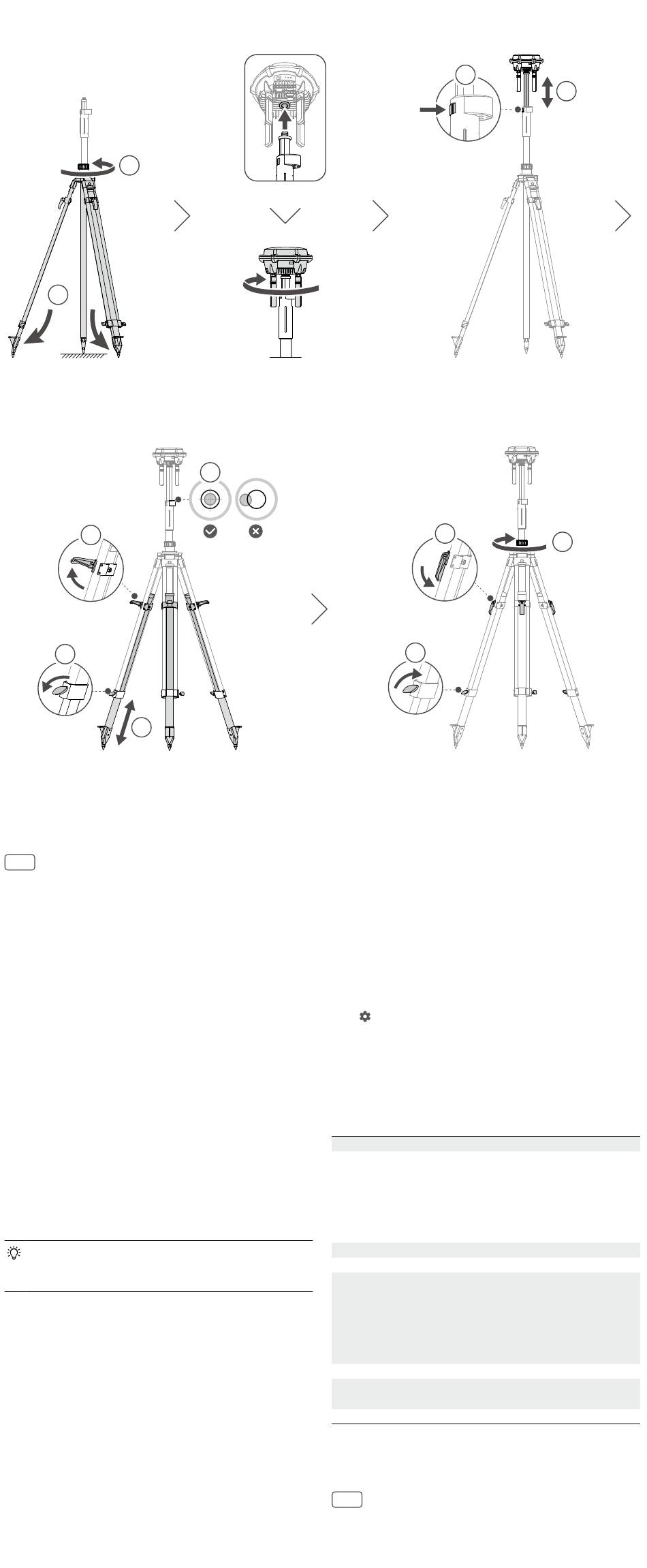

Use the Survey Pole and Tripod kit to set up. Make sure to choose
4
3
1
3
an open, unobstructed environment. Make sure the tripod is stable
during use. (Figure A)
DO NOT change the position or angle of the tripod or the D-RTK 3
after the tripod has been leveled, or else it should be readjusted.
Usage
1. Power on the aircraft and remote controller. Make sure the aircraft
is linked to the remote controller.
2. Power on the D-RTK 3. Go to the Operation View in DJI Agras, then
tap > RTK and select the RTK signal source to D-RTK 3 AG.
3. Select the positioning mode and wait for the remote controller to
display Positioning Successful.
4. The aircraft is ready to takeoff when the RTK icon on the top bar of
the Operation View in the app displays green.

Specifications

Model
GNSS Frequency
Data Link
O4 Agras
Operating Frequency and
[1]
Transmitter Power (EIRP)
Bluetooth 5.1
Operating Frequency and
[1]
Transmitter Power (EIRP)
[2]
Operating Temperature
[1] Operating frequency allowed varies among countries and regions. Please
refer to local laws and regulations for more information.
[2] It is required to connect a compatible PD charger for power supply to
power on the D-RTK 3 when using in a temperature below -20° C (-4° F).
CHS
免责声明
使用本产品前，请您仔细阅读本文档，访问 https://enterprise.dji.com/
1
2
2
R600_AG
GPS: L1, L2, L5
Beidou: B1I, B2I, B3I, B2a, B1C, B2b
GLONASS: L1, L2
Galileo: E1, E5a, E5b, E6
QZSS: L1, L2, L5
L-Band
OcuSync, Bluetooth
2.4000-2.4835 GHz: < 20 dBm (SRRC/
CE/MIC), < 33 dBm (FCC)
5.150-5.250 GHz (CE: 5.170-5.250
GHz): < 22 dBm (CE), <20 dBm (FCC)
5.725-5.850 GHz: < 30 dBm (SRRC), <
33 dBm (FCC), < 14 dBm (CE)
2.4000-2.4835 GHz: < 10 dBm
-30° to 55° C (-22° to 122° F)
