Summary of Contents for dji Dropsafe

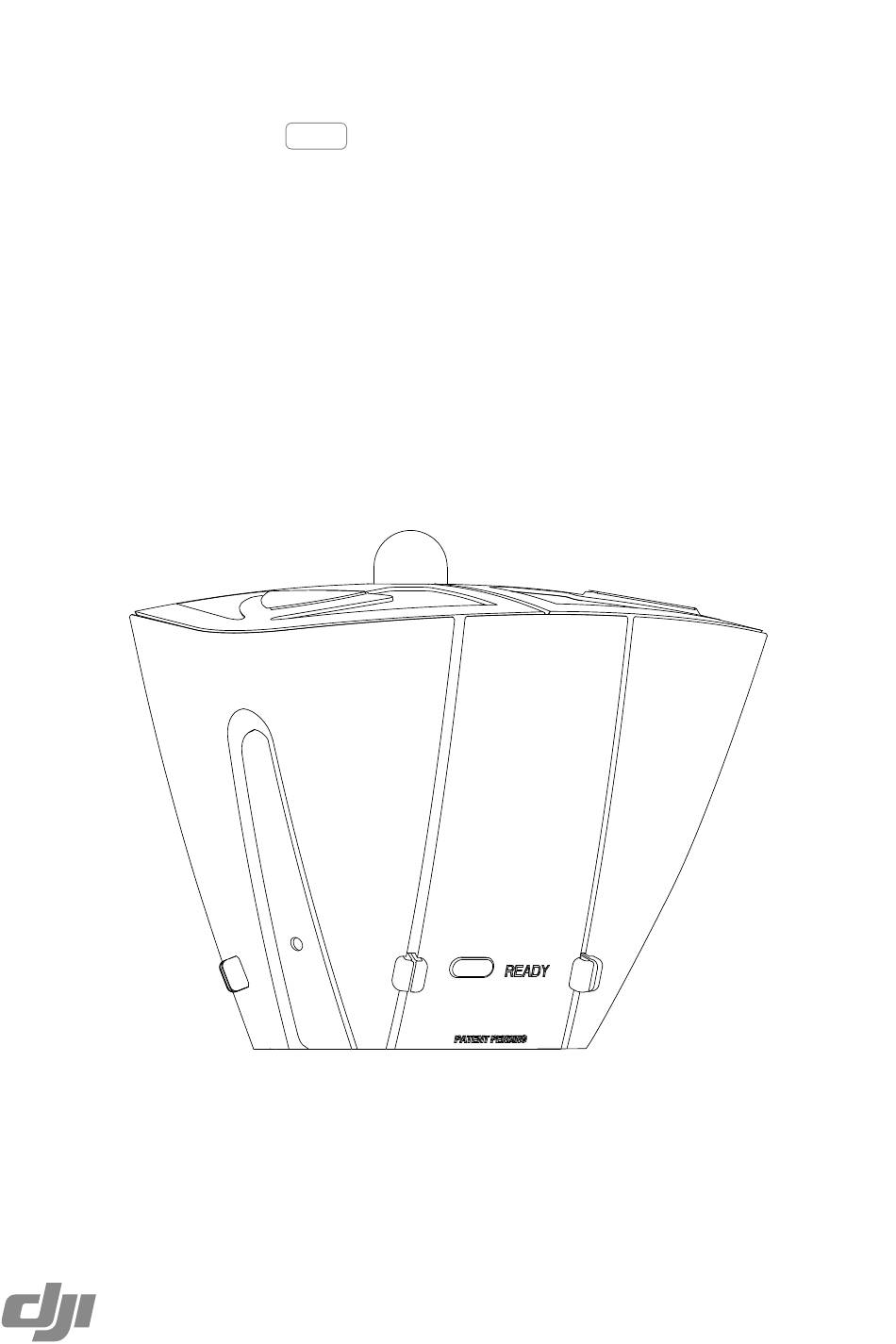

- Page 1 DJI DROPSAFE User Manual V1.0 2014.12...
-
Page 2: Table Of Contents
Configure Remote Controller Switches System Base Connection Setting Up the System Base for Deployment Setting Up the CO Canister Folding the Parachute Connecting DJI Dropsafe to Your Multirotor Install Backup Battery DJI Dropsafe System Activation Appendix Specifications System LED table ©... -
Page 3: Disclaimer
Disclaimer The DJI Dropsafe is designed to reduce the drop speed of your flight platform. There is no guarantee that it will protect your equipment, prevent injury, or prevent property damage. canisters are required and not included with the DJI Dropsafe. DJI assumes no liability for or damages... - Page 4 DJI DROPSAFE User Manual Winglet x3 Side Strip x3 System Base x1 (Including: spring and triggering pin) Manifold x1 Packing Tool x1 Connection Cable x4 Safety Pin x1 Trigger Compression Tool x1 Hex Screwdriver x1 Attachment Pad x2 Parachute Pack x1...
-
Page 5: System Introduction

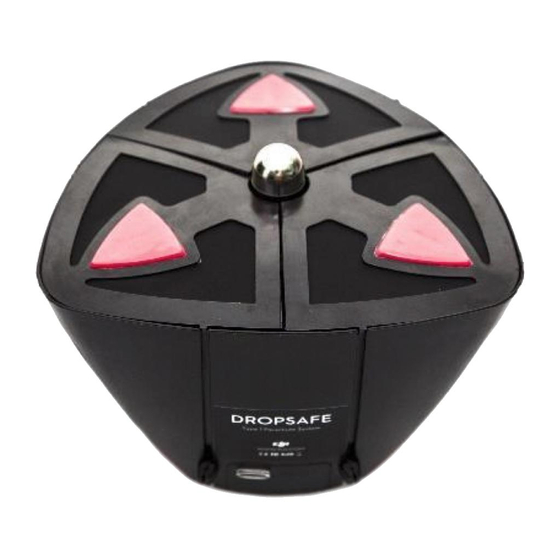

System Introduction System base serves as the major component for the DJI Dropsafe system. Features such as self-check, stopping motors, triggering CO canister are implemented by the system base and flight controller. Triggering safety pin is in place to prevent users from accidently triggering the system. Parachute can be deployed in less than 0.5 second. -
Page 6: Installing Dji Dropsafe System
Attachment Pad Stick one of the attachment pads onto the bottom of the DJI Dropsafe system base, and the other pad to the center of your aircraft’s upper plate. Then secure the system base to your aircraft by pressing the attachment pad on the system base against the attachment pad on the aircraft. -
Page 7: Setting Up The System Base For Deployment
DJI DROPSAFE User Manual Setting Up the System Base for Deployment Ensure the "activation switch" and "safety switch" on your remote controller are turned off. Ensure the spring and triggering pin are within the triggering housing unit. Follow the instructions below to set up the system base: Place the trigger compression tool into the triggering housing unit. - Page 8 DJI DROPSAFE User Manual 4. It is recommended to test the system before each deployment. Follow the steps below to complete the test: (1) Ensure triggering pin is locked in place and system is connected with flight controller. Unscrew the trigger compression tool for one round (do not unscrew for more than one round, otherwise triggering pin might be damaged when it is released).
-
Page 9: Setting Up The Co
Setting Up the CO Canister canisters are required and not included 90±2 mm with the DJI Dropsafe. Only use ISI 16g CO canisters or other 16g CO canisters with specifications as shown in the figure. Improper use of the 16g CO canisters, or using other CO 10±1 mm... -
Page 10: Folding The Parachute
Watch the video tutorial on how to fold the parachute at www.dji.com/product/ dropsafe/video before you fold the parachute for the first time. Failure to follow the folding instructions exactly may result in unsuccessful parachute deployment. Short String Connection String 1. - Page 11 DJI DROPSAFE User Manual 2. For example, S900 users should connect and secure each connection string to its specified position, as circled below: 3. For example, S1000 users should connect and secure each connection string to its specified position, as circled below.
-
Page 12: Install Backup Battery
The backup battery LED will display green when it is fully charged. DJI Dropsafe System Activation To activate the system and deploy the DJI Dropsafe, first toggle and hold the "safety switch" on the remote controller to the ON position. Then toggle the "activation switch" to activate and deploy the system. -
Page 13: Appendix
Signal not detected from the remote controller or flight Alternating green and red controller. The remote controller has been used within the nine — Solid green and blinking red second safety countdown. LEDs OFF Powered off, or reset required. © 2014 DJI. All Rights Reserved. - Page 14 User manual is subject to change without prior notice. You may visit DJI offical website to obtain the latest version of user manual. http://www.dji.com/product/dropsafe © 2014 DJI. All Rights Reserved.
