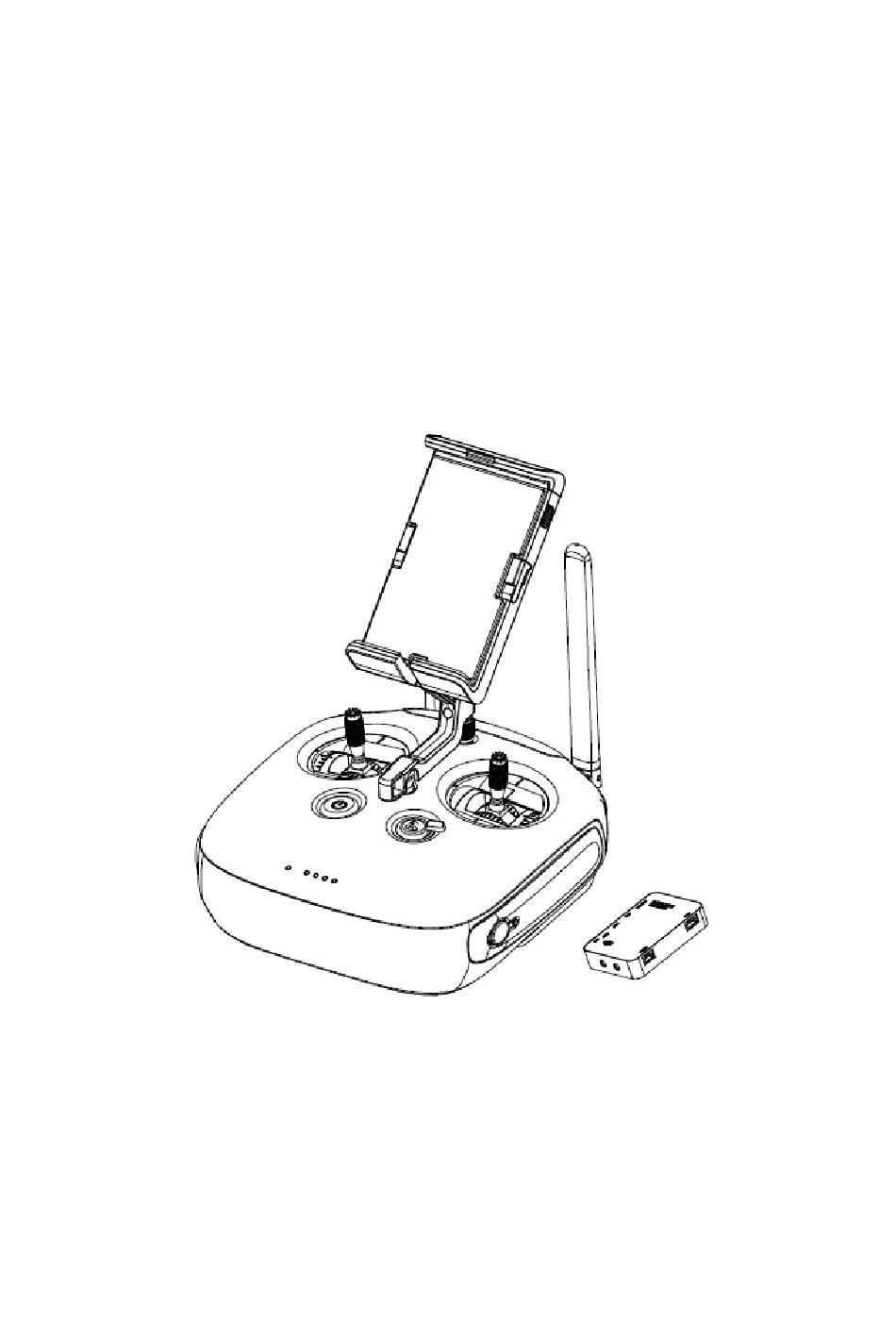

- Page 1 DA T A L I N K 3 Quick Start Guide V1.0 ...
- Page 2 Disclaimer Congratulations on purchasing your new DJI™ product. The information in this document affects your safety and your legal rights and responsibilities. Read this entire document carefully to ensure proper configuration before use. Failure to read and follow instructions and warnings in this document may result in serious injury to yourself or others, damage to your DJI product, or damage to other objects in the vicinity. This document and all other collateral documents are subject to change at the sole discretion of DJI. By using this product, you hereby signify that you have read this disclaimer and warning carefully and that you understand and agree to abide by the terms and conditions herein. You agree that you are solely responsible for your own conduct while using this product, and for any consequences thereof. You agree to use this product only for purposes that are proper and in accordance with all applicable laws, rules, and regulations, and all terms, precautions, practices, policies and guidelines DJI has made and may make available. DJI accepts no liability for damage, injury or any legal responsibility incurred directly or indirectly from the use of this product. The user shall observe safe and lawful practices including, but not limited to, those set forth in this document. Notwithstanding above, your statutory rights under applicable national legislation are not affected by this disclaimer. Warning 1. Always stay alert when using the DATALINK 3. Carelessness may result in serious harm to yourself and other people. 2. DJI provides User Manual for you to understand DATALINK 3. Be sure to read the user manual thoroughly and the quick start guide prior to operating your DATALINK 3. DA T A L I N K 3 DJI DATALINK 3 is a long range video downlink capable of transmitting data at distances up to 3 km*. It is compatible to DJI series flight controllers ** and other non‐DJI flight control lers***. DJI DATALINK 3 includes a ground system and an air system, which can be operated under the frequency of 2.4 GHz. The multi‐functional ports on the air system enable users to set SBUS, DBUS, CAN, and UART ...

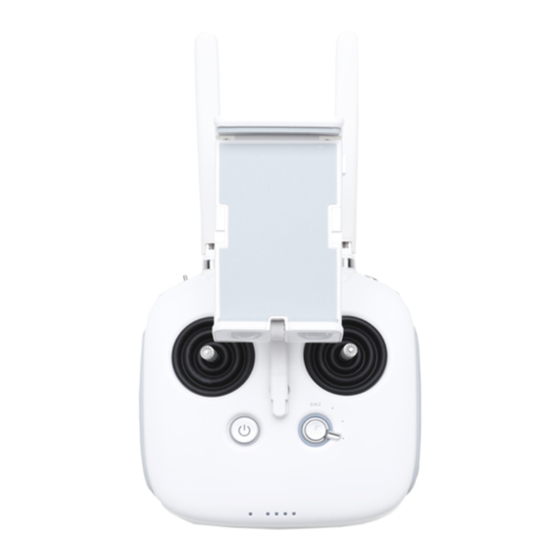

- Page 3 * The remote controller is able to reach its maximum transmission distance SRRC in a wide open area with no Electro‐Magnetic interference, and at an altitude of about 100 meters. **Refer to the Specifications for details on supported DJI flight controller series. ***Coming soon Ground System (C1 Remote Controller) 1. Power Button 13. Dial RW* 2. RTH Button 14. D Button* 1. 3. SW2 Switch* 15. SW1 Switch* 4. Status LED 16. A Button* 5. Battery Level LEDs 17. B Button* 6. Power Port 18. C1 Button* 7. Control Sticks 19. Micro USB Port 8. Mobile Device Holder ...
-
Page 4: Air System
Air System 5. Linking Button 1. Firmware Update Port Micro USB 6. Antenna Ports 2. CAN Port 7. Power Port 3. UART Port 8. DBUS/SBUS Port 1. Downloading MG‐FE or GS Pro Scan the QR code below or visit the App Store to download DJI's MG‐FE or GS Pro apps. MG‐FE GS Pro *DJI MG‐FE only supports some mobile devices with Android 4.4 or above. Refer to Specifications for more details. GS Pro is only supported on the iPad. ... - Page 5 2. Battery Level and Charging Press the power button once to check the battery level. Press and hold for 2 seconds to power on the remote controller. Low to High Please use the included charger to charge the remote controller, when the power level is low. It is recommended to charge the remote controller with the power off. Please recharge the battery at least every three months to ensure it remains in a fully charged state – the battery will deplete when stored for long periods. It takes about 4 hours to fully charge the remote controller. 3. Linking Example: DJI N3 Flight Controller. a. Insert the antennas into the ports on the side of the air system and snap into place. b. Connect the DBUS/SBUS port on the air system with the RF port on the DJI flight controller series using the provided DBUS cable. c. Power on the remote controller and press the C1, C2 and D buttons simultaneously. The Status LED will blink blue and make a warning sound, indicating that linking has started. d. Press the Linking Button on air system. Status LEDs on both the remote controller and the air system will be solid green when linking is complete. 4. Preparing Your Remote Controller ...
- Page 6 Unfold the remote controller a. Press the clamp on the mobile device holder. b. Adjust the mobile device hold to tighten the mobile device. c. Connect the mobile device and the remote controller via a Micro USB cable. Strong Weak 5. Flight DJI's series of Flight Controllers have a default flight mode is known as Mode 2. The left stick controls the aircraft's altitude and heading, while the right stick controls forward, backward, and left and right movements. ...
-
Page 7: Industrial Application
Combination stick command to start/stop the motors Push the left stick up slowly for take off Pull the left stick down slowly until you touch the ground. Hold down for a few seconds to stop the motors Refer to Datalink 3 User Manual for more operation information. 6. Industrial Application With numerous customizable buttons, which can be channel set by using compatible flight controller software, the C1 remote controller can be applied to agriculture, mapping and photography, and will support more industrial applications. The C1 Remote Controller does not support image transmission and does not have a GPS module. Please mount the GPS module on the remote controller when necessary. Refer to the DJI Datalink 3 User Manual. Specifications General • Max Transmission Distance unobstructed, free of interference : 3 km SRRC • Operating Frequency: 2.400GHz to 2.483GHz • Transmitter Power dBm : 20dBm • Supported DJI Flight Controllers: N3, A3, N3‐AG, A3‐AG • Supported Android Mobile Devices For MG‐FE : Android 4.4 and above ... - Page 8 • Weight: 33. 9 g Charge r • Voltage： 1 17.4V • Rated Powe er： 57 W SZ DJI TECHNOL OGY CO., LTD. hereb by declares that this de vice is in co ompliance w with the essentia al requirem ents and ot ther relevan...
- Page 9 FCC Compliance Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
