User Manual
v1.0
2023.11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DOCK 2 and is the answer not in the manual?

Questions and answers

Related Manuals for dji DOCK 2

Summary of Contents for dji DOCK 2

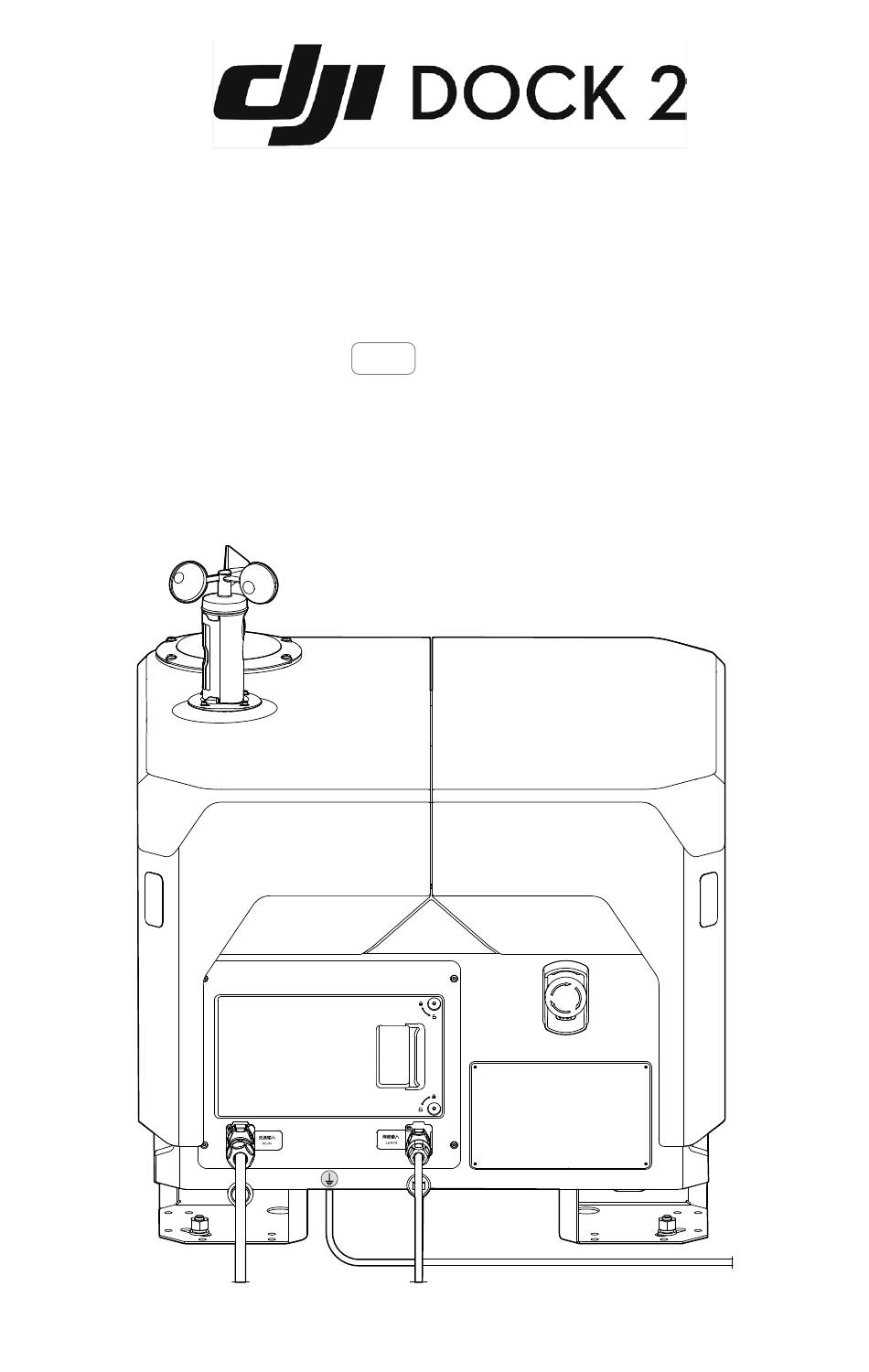

  • Page 1 User Manual v1.0 2023.11...

  • Page 2: Using This Manual

    This document is copyrighted by DJI with all rights reserved. Unless otherwise authorized by DJI, you are not eligible to use or allow others to use the document or any part of the document by reproducing, transferring, or selling the document. Users should only refer to this document and the content thereof as instructions to operate DJI UAV.

  • Page 3: Read Before Use

    • The operating temperature of DJI Dock is -13 ° to 45 ° C (-31 ° to 113 ° F), and the operating temperature of the aircraft is -20 ° to 45 ° C (-4 ° to 113 °...

  • Page 4: Table Of Contents

    DJI Dock 2 User Manual Table of Content Using this Manual Legends Read Before Use Download DJI Assistant 2 Video Tutorials Product Profile Introduction Feature Highlights Flight Safety Compliance with Regulations Environment and Wireless Communications Requirements Flight Restrictions and Unlocking...
  • Page 5 DJI Dock 2 User Manual Water Immersion Sensor Landing Pad Dock RTK Air Conditioning System Dock Network Connection IP Rating of the Dock Aircraft Overview Link 35 Flight Modes Vision Systems and Infrared Sensing System Detection Range Using the Vision System...

  • Page 6: Intelligent Flight Battery

    DJI Dock 2 User Manual Installation Requirements Connection Requirements IP Rating of the Aircraft Intelligent Flight Battery Battery Features Using the Battery Installing and Removing the Battery Checking Battery Level Warming the Battery Charging Mode Charging the Battery Charging via the dock...
  • Page 7 DJI Dock 2 User Manual Using DJI FlightHub 2 Using DJI Assistant 2 (Enterprise Series) Third-Party Cloud Platform Specifications Dock Aircraft © 2023 DJI All Rights Reserved...

  • Page 8: Product Profile

    [5] The maximum flight time was tested in a lab environment and is for reference only. Feature Highlights Gimbal and Camera: DJI Matrice 3D aircraft has a tele camera and a wide camera with a mechanical shutter, meeting the needs for high-precision mapping tasks. DJI Matrice...
  • Page 9 The aircraft will automatically takeoff according to the preset task plans, and the media files will be automatically uploaded to DJI FlightHub 2. Users can also gain aircraft control and payload control and control the aircraft, gimbal and payload remotely.

  • Page 10: Flight Safety

    DJI Dock 2 User Manual Flight Safety Compliance with Regulations • DO NOT operate in the vicinity of manned aircraft. DO NOT interfere with the operations of manned aircraft. Be alert and make sure there is no other aircraft in the operation area.

  • Page 11: Flight Restrictions And Unlocking

    • Only operate the dock and the aircraft for applications in the operating temperature range. The operating temperature of DJI Dock is -13° to 45° C (-31° to 113° F), and the operating temperature of the aircraft is -20° to 45° C (-4° to 113° F). [2] In low-...

  • Page 12: Geo Zones

    Zones around the globe is available on the official DJI website: https://fly-safe.dji.com/nfz/ nfz-query. The settings and alerts provided by DJI on operations within GEO Zones are only to assist the user in ensuring flight safety and DO NOT guarantee full compliance with all local laws and regulations.

  • Page 13: Buffer Zone

    DJI FlightHub 2 and stay alert. Warning Zones (Orange) The dock aircraft cannot take off, The aircraft’s altitude is limited and a prompt will appear in DJI Altitude Zones when flying inside an Altitude FlightHub 2 when the planned (Gray) Zone.
  • Page 14 Once the unlocking request is approved, the user may synchronize the unlocking license to the dock using the DJI Pilot 2 app to unlock the zone. The user can designate an unlocked period during which multiple flights can be operated.
  • Page 15 Maximum flight altitude restricts the aircraft flight altitude, while maximum flight distance restricts the aircraft flight radius around the dock. These limits can be set using the DJI FlightHub 2 for improved flight safety. The maximum flight altitude is 120 m (393.7 ft) by default.

  • Page 16: Dji Airsense

    FlightHub 2 users when DJI AirSense is disabled or not properly functioning. DJI FlightHub 2 collects all the DJI AirSense data reported by the dock aircraft in the project and displays the location of an approaching manned airplane or helicopter, as well as a warning message on the web page when there is a potential risk of collision.

  • Page 17: Flight Test Checklist

    • Modify the aircraft settings using the remote controller (sold separately) based on actual needs. Check the settings of the obstacle braking distance, warning distance, and gimbal camera settings in the DJI Pilot 2 app. © 2023 DJI All Rights Reserved...

  • Page 18: Dji Flighthub 2 Checklist

    • It is recommended to link the remote controller as controller B before flight tests for safety reasons. • To ensure flight precision, when importing flight routes to DJI FlightHub 2, make sure the RTK signal source of the flight route is the same as the signal source used to calibrate the dock RTK.
  • Page 19 The Emergency Stop Buttons is pressed. e. The dock power supply is disabled. f. The Intelligent Flight Battery level is below 30%. g. The aircraft satellite signal is weak (the aircraft satellite icon in DJI FlightHub 2 is red). h. Battery lifespan reached.

  • Page 20: Dock

    DJI Dock 2 User Manual Dock Overview 1. Wind Speed Gauge 7. Landing Pad 12. Electrical Cabinet 2. Wide Camera 8. Aircraft Orientation 13. LAN-IN Port Mark 3. Camera Auxiliary Lights 14. Mounting Base Brackets 9. Carrying Handle 4. Rainfall Gauge 15.

  • Page 21: Panel Description

    Power on/off the dock. 5. Backup Battery Switch Enable/Disable backup battery of the dock. 6. USB-C Port Connect to a computer to access DJI Assistant 2. 7. USB-A Port Connect the remote controller to the dock for dock deployment and set up.

  • Page 22: Electrical Cabinet Indicators

    DJI Dock 2 User Manual Electrical Cabinet Indicate the working status of the power supply, the backup Indicators battery, the wired network and the wireless network. 9. Link Button Press and hold the link button to link the dock and the aircraft.

  • Page 23: Backup Battery

    • After a power outage, DJI Dock 2 does not support functions like aircraft charging, air conditioning, dock cover heating, and wind speed gauge heating.

  • Page 24: Charging The Backup Battery

    DJI Dock 2 User Manual Charging the Backup Battery If the dock is stored for an extended period, make sure to charge the backup battery before use: 1. Loose the screw of the electrical cabinet door using a 2.5 mm Hex Key. Pull to open the electrical cabinet door.

  • Page 25: Opening And Closing The Dock Cover

    When conducting remote debugging, the dock cover can be opened or closed using DJI FlightHub 2 or the DJI Pilot 2 app to check the aircraft status and the component status inside the dock. The dock cover can also be controlled using the open/close button on the electrical cabinet.
  • Page 26 DJI Dock 2 User Manual Using DJI Pilot 2 Connect the remote controller to the dock. Run DJI Pilot 2 and tap Open Dock Cover. DJI Pilot 2 Using the Open/Close Button 1. Make sure the dock is powered on, and the dock cover status indicators are blinking.

  • Page 27: Dock Cover Status Indicator And Buzzer Alerts

    DJI Dock 2 User Manual Dock Cover Status Indicator and Buzzer Alerts Normal States Blinks white The dock functions properly, and the aircraft is standby. Blinks blue The dock is linking to the aircraft. Short beeps Blinks green The aircraft has taken off, and flight task in progress.

  • Page 28: Environmental Monitoring System

    DJI Dock 2 User Manual Environmental Monitoring System DJI Dock integrates multiple environment sensors to provide information on wind speed, rainfall, temperature, and humidity, allowing users to monitor real-time environment condition and ensure safe flight. Monitoring Camera and Auxiliary Lights The dock is equipped with two wide cameras and three camera auxiliary lights for monitoring.

  • Page 29: Wind Speed Gauge

    Users can view real-time wind speed in DJI FlightHub 2. To ensure flight safety, the aircraft cannot take off or land when the wind speed is above 8 m/s.

  • Page 30: Temperature And Humidity Sensor

    The dock features water immersion sensors, which can be used to detect whether the dock is immersed in water. If DJI FlightHub 2 prompts dock flooding, remove the water immediately and check whether the dock works properly. If the dock fails to work properly, make sure to push the AC power switch and backup battery switch into the off position, and contact DJI Support.
  • Page 31 DJI Dock 2 User Manual Landing Pad 1. Return Vent and Supply Vent Clean the supply vent and the return vent regularly to remove the dust. 2. Aircraft Orientation Mark: When placing the aircraft on the landing pad, make sure to align the aircraft heading with the aircraft orientation mark.

  • Page 32: Air Conditioning System

    If the dock is moved, the position needs to be recalibrated in DJI Pilot 2 using the remote controller. Refer to the Installation and Setup Manual for details.
  • Page 33 The dock will automatically switch to the 4G network if the wired network fails. [1] 4G network service is not available in some countries or regions. Please consult your local DJI authorized dealer or DJI Support for more information.
  • Page 34 [1] Matrice 3D and Matrice 3TD are equipped with different cameras. Refer to the actual product purchased. • Contact DJI or a DJI authorized dealer to replace the components of the product if damaged. DO NOT disassemble the product without the assistance of a DJI authorized dealer (except for components allowed to be disassembled by users in this guide), otherwise it will not be covered under warranty.
