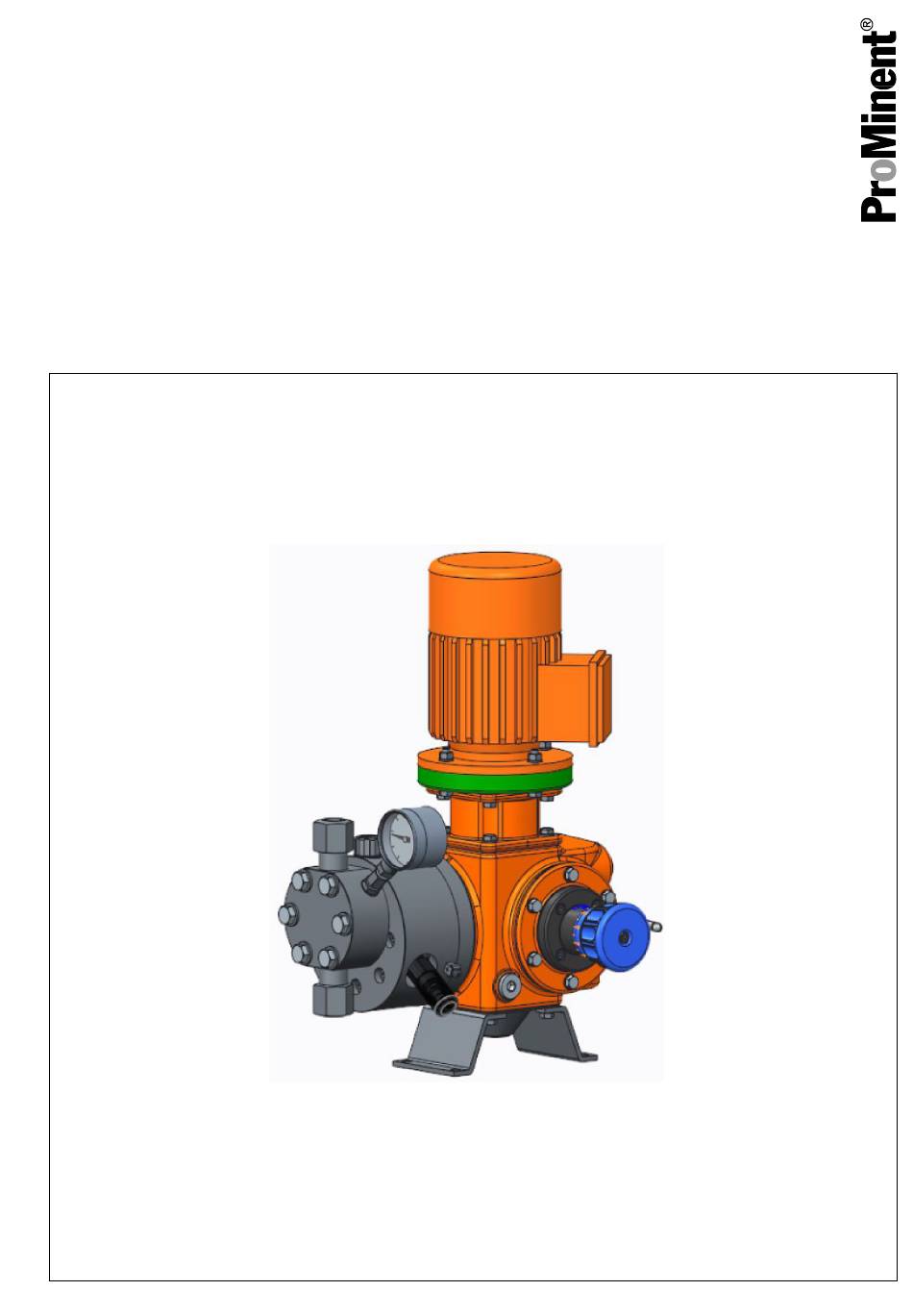

Operating instructions
Metering pump
Evolution E1Sa / E2Sa
These operating instructions form part of combined documentation and, as such, are only valid if used in conjunction with
the combined documentation.
Target group: trained, qualified personnel, unless otherwise required.
Please carefully read these operating instructions before use. · Do not discard.
The operator shall be liable for any damage caused by installation or operating errors.
The latest version of the operating instructions are available on our homepage.
999638
A3500
Original operating instructions (2006/42/EC)
EN
Version: BA ORL 004 11/24 EN
