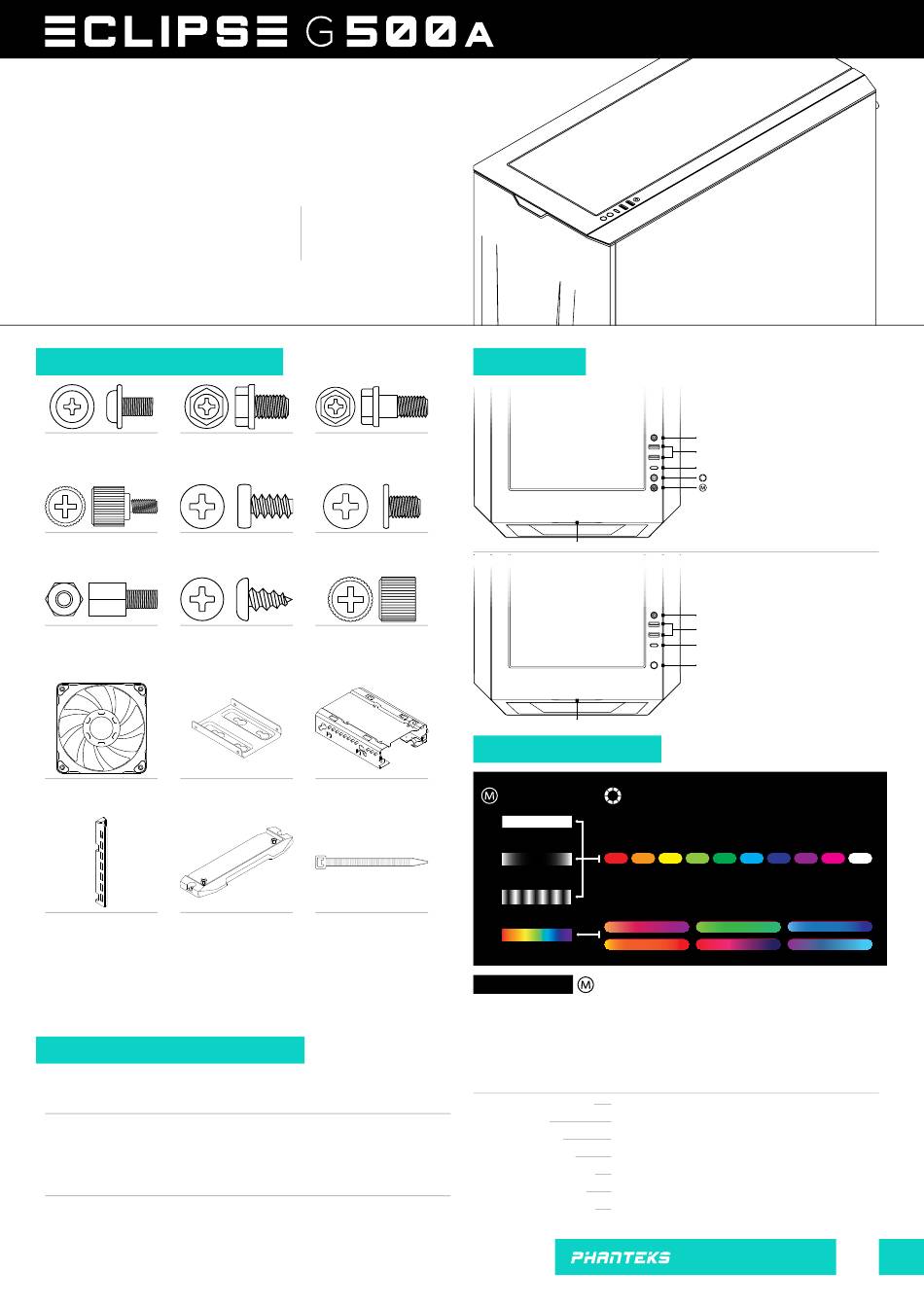

Phanteks ECLIPSE G500A Installation Manual

INSTRUCTIONS
Thank you for choosing Phanteks. This manual will guide you
through the installation process of the Eclipse G500A chassis. If
you have any questions, please contact us through our customer
service or social media.
This manual is for the following models:
PH-EC500GA_DBK01A D-RGB Satin Black
PH-EC500GA_DMW01A D-RGB Matte White
PH-EC500GA_BBK01
Performance
PH-EC500GA_DBK01B
D-RGB Fanless
Phanteks will not take responsibility for any damages incurred due to incorrect
installation or usage of this product.
INCLUDED ACCESSORIES
SSD + MOTHERBOARD
PSU SCREW
SCREW
7x
22X
THUMB SCREW FAN SCREW
12x 8x
MOTHERBOARD
RISER CABLE SCREW
STAND-OFF
3x
1X
M25-140MM FAN 2.5" SSD BRACKET
depending on model 3x pre-installed
ANTI-SAG BRACKET VERTICAL GPU MOUNT
1x 1x
FAN & RADIATOR SUPPORT
FANS FRONT
120mm 3x
140mm
3x
RADIATOR
120mm up to 360
140mm up to 420
3x 140mm D-RGB Fans Black
3x 140mm D-RGB Fans White
4x 140mm Fans Black
No Fans
HDD LOCKING SCREW
8x
CASE SCREW
6x
STANDOFF REMOVAL
TOOL
1X
3.5" HDD BRACKET
2x pre-installed
ZIP TIE
6x
TOP REAR
3x 1x
3x 1x
up to 360 up to 120
up to 280 up to 140
FRONT I/O
G500A | D-RGB
POWER BUTTON
G500A | PERFORMANCE & D-RGB FANLESS
POWER BUTTON
D-RGB CONTROLS
MODES COLORS
SOLID
BREATHING
SPARKLE
MUTLI-COLOR
Press and hold the MODE button for two seconds to turn
TURN OFF LEDs
off LEDs, press again to turn it ON
NOTE | D-RGB control buttons are deactivated when connected to a motherboard.
CLEARANCE
CPU Cooler Height 185 mm
GPU Length 435 mm
Power Supply 250 mm
Front Panel Fan 33 mm
Front 360 Radiator 95 mm
Top 360 Radiator 70 mm
Front 420 Radiator 142 x 475 mm
INSTALLATION GUIDE
VERSION 1.0
AUDIO / MIC
USB 3.0
USB C 3.1
COLOR BUTTON
MODE BUTTON
AUDIO / MIC
USB 3.0
USB C 3.1
RESET BUTTON
Only applicable for the following models:
PH-EC500GA_DBK01A & PH-EC500GA_DMW01A
195mm If all 4 bottom HDD positions used
Behind front panel
| www.phanteks.com
01
