- Page 1 E NT HOO PR O I I S ERVER ED I T IO N U S E R M A N U A L V 1 . 0...
- Page 3 Thank you f o r c h o o s i n g...
-
Page 4: Table Of Contents
TABLE OF CONTENTS ENTHOO PRO II SE 1. WHAT ’S INS IDE? Introduction Optional Upgrades Specifications Installing the 5.25 inch bay Exploded View Accessories 2. CHOOS E YOUR SE TUP 3. SUPPORT Configure your Enthoo Pro 2 Contact Us Getting started Warranty Installing the Motherboard Installing the Power Supply... -
Page 5: Introduction

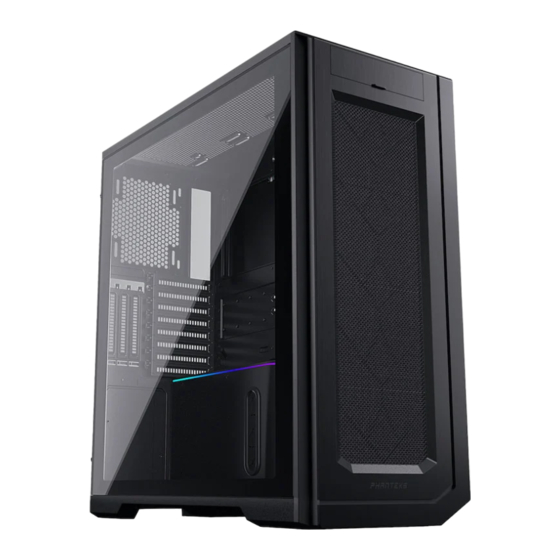

Welcome to Phanteks! The Enthoo Pro 2 has been designed with extreme performance in mind, featuring Phanteks’ innovative ‘High-Performance Fabric’ that sets a new airflow performance standard in the PC enclosure industry. With an extremely spacious and versatile interior design and state-of-the-art features, the Pro 2 is ready to house any high-end configuration. -
Page 6: Specifications
Internal 3.5” (4 included) 503 mm (19.95 in) GPU Clearance Internal 2.5” (11 included) SUPPO RT 120 MM 140 MM Front support@phanteks.com Contact (International) support@phanteksusa.com Contact (America) Rear 5 Years Warranty Right Side Left Side R A DIATOR 120 MM... -
Page 7: Exploded View
EXPLOADED VIEW ENTHOO PRO II SE 1. Chassis 2. Front Panel 3. Right Side Panel 4. Left Side Panel* 5. Server PSU Bracket 6. SSD Cover 7. Front Dust Filter 4* PH-ES620PC_BK version is not 8. Top Dust Filter equipped with a tempered glass panel 9. -
Page 8: Accessories
ACCESSORIES ENTHOO PRO II SE 3 . 5 ” M ODUL AR HD D B R ACKE T G PU SU PP ORT B R ACKE T FA N B R ACKE T - 4 included in accessory box Supports up to 4 GPU’s Supports - For 3.5”... - Page 9 CONFIGURE YOUR ENTHOO PRO II ENTHOO PRO II SE The Enthoo Pro 2 has a versatile chassis design, providing you with a myriad of options. With so many possibilities to pick from, you can use this overview to choose and plan the best configuration for your build. AIR COO LING- P14.
-
Page 10: Getting Started
GETTING STARTED ENTHOO PRO II SE PREPARATIONS The Enthoo Pro 2 case is designed to support installation in a standing position. Don’t turn on the power to your system until installation is complete. Discharge your body’s static electric charge by touching a grounded surface before performing any hardware procedure. Make sure to consult the manuals of your hardware before installation. - Page 11 GETTING STARTED ENTHOO PRO II SE R E MO V I NG LEF T S I D E PA NE L * LO O S E N : R E MO V I NG RI G H T S I DE PA N E L Align the tab in the slot when re-installing LO O S E N :...
-
Page 12: Installing The Motherboard
INSTALLING MOTHERBOARD ENTHOO PRO II SE Use the motherboard screws from the toolbox to install your motherboard on the R EQU IRE S: pre-installed stand-offs. S UP P O RTS ROG Dominus Extreme C621 AORUS XTREME S TAN D - O F F P O SI T IO N IN G AT X / E-AT X Pre-installed M icro AT X /SSI- EEB /SS I- CEB... -
Page 13: Installing The Power Supply
INSTALLING POWER SUPPLY ENTHOO PRO II SE Install the rubber pad onto the chassis to support the power supply. RE QUIRES : Secure the Power Supply with 4x PSU screws. -
Page 14: Installing A Server Power Supply
INSTALLING A SERVER POWER SUPPLY ENTHOO PRO II SE A server-grade power supply can be installed using the included RE QU IRE S: rear bracket (A) and holding bracket (B). First, install the rear bracket (A) with 4x PSU screws and place the power supply in its position. - Page 15 INSTALLING A SERVER POWER SUPPLY ENTHOO PRO II SE Secondly, the server-grade power supply is secured with the holding bracket from the bottom with 2x RE QU IRE S: PSU screws.
-
Page 16: Installing Fans
INSTALLING FANS ENTHOO PRO II SE Configure your airflow-path with this overview. Some fan locations allow you to choose between storage or cooling to offer more flexibility. FRO NT The left-side fan bracket is removed by removing the 4x screws and lifting it out the chassis. 1 4 0 1 2 0 TO P... -
Page 17: Repositioning Fan Bracket
REPOSITIONING FAN BRACKET ENTHOO PRO II SE The left-side fan bracket can be installed in a secondary position to pull air from the front of the chassis. Secure the fan bracket with 5x screws as shown. *This position will block the right side fan and HDD positions. -
Page 18: Installing Drives
INSTALLING DRIVES ENTHOO PRO II SE 2. 5” S S D IN S TA LL AT I O N RE QU IRE S: Three SSDs can be installed on the 3x dedicated SSD bracket and two on each of the 4x SSD covers for a total of 11 SSD drives. - Page 19 INSTALLING DRIVES ENTHOO PRO II SE MA I N COM PAR TME NT RE QUIRE S: A total of 10 Stackable HDD brackets can be installed on the side fan positions. Before installation please remove the SSD Covers. 1. Mount the bracket in the chassis.
- Page 20 ENTHOO PRO II SE 3 .5” HDD INS TA LL AT I O N RE QUIRE S: 4x Phanteks Stackable 3.5” HDD Brackets are included. Additional brackets are sold separately (PH-HDDKT_03). H DD I NSTA LL ATION B OT TO M COMPA RTM EN T 2x HDD Brackets can be positioned in the bottom compartment.
-
Page 21: Installing Water Cooling
INSTALLING WATER COOLING ENTHOO PRO II SE This overview shows all possible radiator form-factors, locations and clearances. 1 2 0 FORM FACTOR 1 4 0 FORM FACTOR SIDE max 120x460mm 1 2 0 FORM FACTOR max 135x530x32mm *max motherboard component height: 55mm REAR FRONT 1 2 0 FORM FACTOR... - Page 22 INSTALLING WATER COOLING ENTHOO PRO II SE R A DI ATOR CL E A R ANC E Some radiator clearances depend on other hardware installed. Subtracting the radiator and fan thickness shows the remaining clearance for other radiators. I NTERNA L D IMEN SI ON S : :510mm :530mm If the HDD trays are installed on the side fan...
-
Page 23: Installing Drain Port
DR AIN P O R T The Drain Port is installed in the Front Panel using a Passthrough Fitting and a Stop Fitting / Ball Valve. The port diameter is 20.5mm. Phanteks Passthrough fitting: PH-PTF_BK/CR_G1/4 Phanteks Stop fitting: PH-PG_BK/CR Phanteks Ball-Valve fitting:... -
Page 24: Installing Gpu Support Bracket
INSTALLING GPU SUPPORT BRACKET ENTHOO PRO II SE To prevent your GPU from tipping down you can install the GPU Support Bracket. RE QU IRE S: The bracket is adjustable to provide perfect support for different sized GPU’s. The GPU Support Bracket has 2 available positions if cables are in the way. -
Page 25: Connecting Front I/O
CONNECTING FRONT I/O ENTHOO PRO II SE Please consult the motherboard manual for additional instructions. Please make sure to consult your motherboard manual before connecting the front I/O. TO MOTHE RB OA RD POWE R B U T TON Power SW 4 X U SB 3 .0 USB 3.0 RE SE T B U T TON... -
Page 26: Cable Management
CABLE MANAGEMENT ENTHOO PRO II SE Use the double-loop Velcro ties to route your cables. Zip ties are included in the accessory bag to manage any excess cables. Use the double-loop Velcro ties to split the cables into 2 channels. Use the cable cover to hide all your excesive cables. -
Page 27: Dust Filters
DUST FILTERS ENTHOO PRO II SE The Enthoo Pro 2 is equipped with a front, bottom, side, top and PSU filter. We recommend to clean these filters every month to keep your cooling performance optimized. If cleaning the dust filters with water, make sure to properly dry them before placing them back. -
Page 28: Optional Upgrades
OPTIONAL UPGRADES ENTHOO PRO II SE PREM IUM T 30 - 1 2 0 FAN 3 .5 ” STACK ABLE H DD BRACKE TS PH-F120T30_BG / PH-F120T30_BG _3P PH-HDDKT_03 The T30-120 fan is the ultimate PC cooling For 3.5” or 2.5” Drive fan. -
Page 29: Installing The 5.25 Inch Bay
INSTALLING A 5.25” BAY ENTHOO PRO II SE I N S TA L L A N Y 5 . 2 5 ” D E V I C E S I N T O T H E 5. 2 5 ” B AY F I R S T P L AC E T H E 5 . -
Page 30: Contact Us
ENTHOO PRO II SE As a Phanteks customer, you are priority number one. We have a dedicated team of employees across the globe working hard every day to make sure we deliver the superior experience you deserve. We are here for you. If you have a question or a concern about our products, we have numerous ways you can reach us. -
Page 31: Warranty
PHANTEKS warrants its products to be free from defects in material and workmanship during the warranty period; when given normal, proper and intended usage. If a product proves to be defective in material or workmanship during the warranty period, PHANTEKS will, at its sole option, repair or replace the product with same product or similar product.
