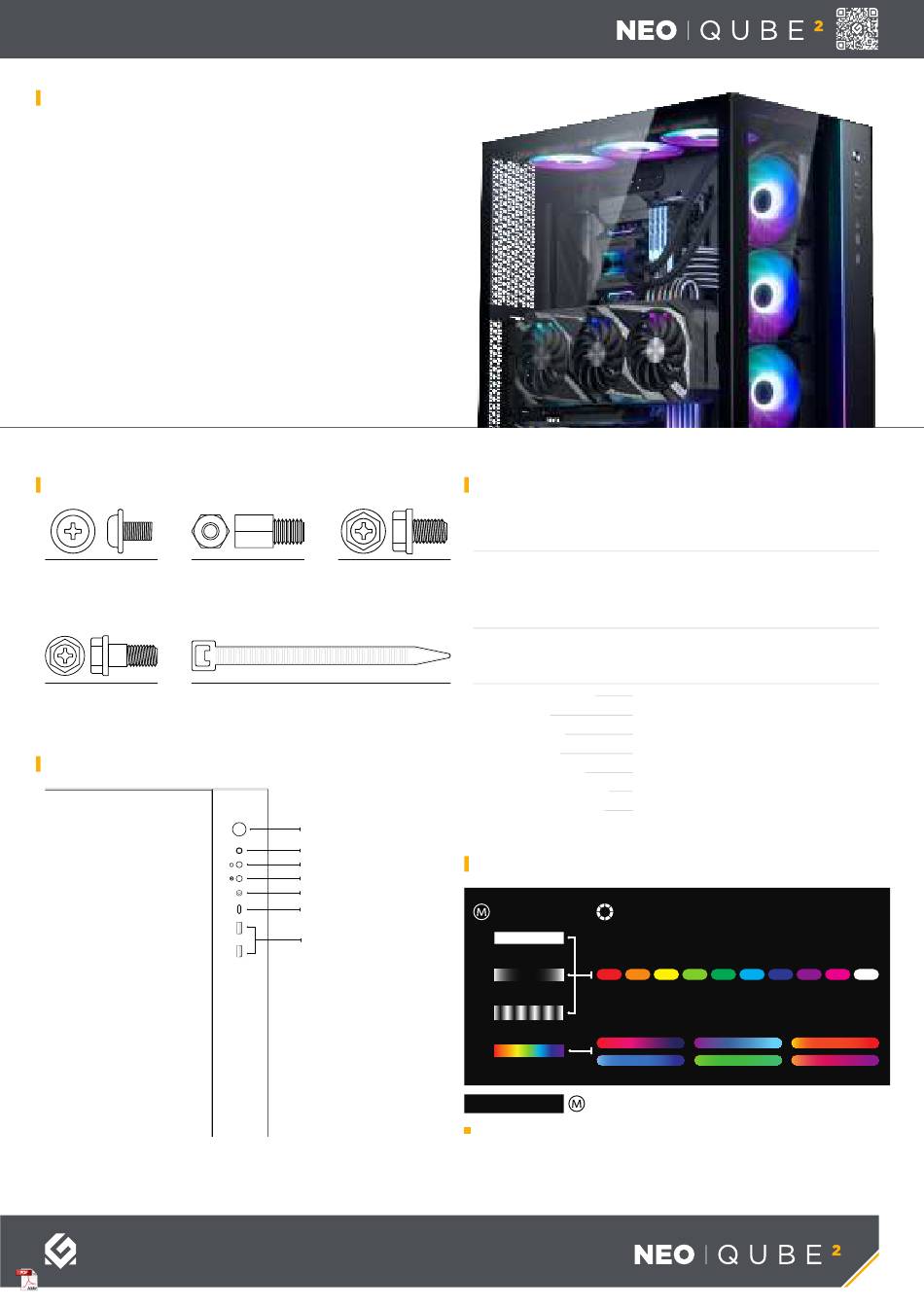

USER MANUAL
INTRODUCTION

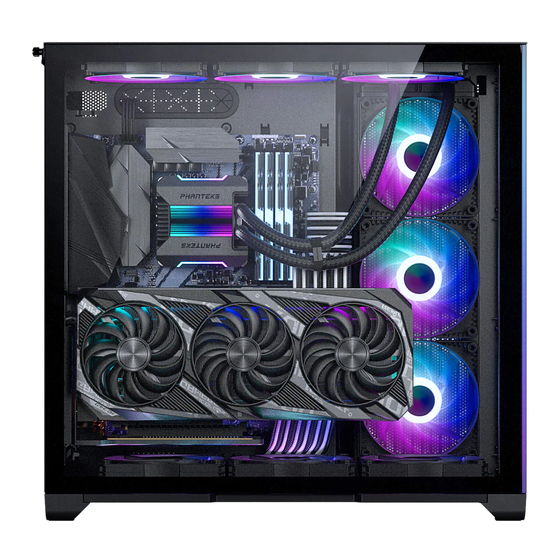

Thank you for choosing the Magnium Gear NEO
Qube 2. This manual will walk you through the
installation process and provides an overview of all
the features, clearances and accessories that the
NEO Qube 2 provides.
This manual is intended for:
- NEO | Qube 2
- NEO | Qube 2 IM
If you have any questions, suggestions or require customer
service, please check our website www.magnium-gear.com or
contact us through support@magnium-gear.com
INCLUDED ACCESSORIES
33x
5x
SSD & Motherboard
Motherboard Stand-off
Screw
8x
6x
HDD Screw
Zip Ties
FRONT I/O
* Becomes power button for dual-system, see
DUAL-SYSTEM section for more information.
MAGNIUMGEAR
WWW.MAGNIUM-GEAR.COM
VERSION 1.3
4x
PSU Screw
Power
Reset*
D-RGB color
D-RGB mode
Headphones & Mic
USB C
USB 3.0
FAN & RADIATOR SUPPORT
FANS
SIDE
120mm
3x
140mm
-
RADIATOR
120mm
up to 360 mm
140mm
-
CLEARANCE
CPU cooler height
148 mm
GPU length
410 mm
Side Radiator
128x400x50 mm
Top Radiator
140x430x75 mm
Bottom Radiator
130x410 mm
Power supply length
275 mm
E-ATX Motherboard
Up to 280 mm wide
D-RGB CONTROLS
MODES
COLORS
SOLID
BREATHING
SPARKLE
MUTLI-COLOR
Press and hold the MODE button for two seconds
TURN OFF LEDs
to turn off LEDs, press again to turn it ON
NOTE | D-RGB control buttons are deactivated if connected to a motherboard.
TOP
BOTTOM
3x
3x
2x
2x
up to 360 mm
up to 360 mm
up to 280 mm
-
01
