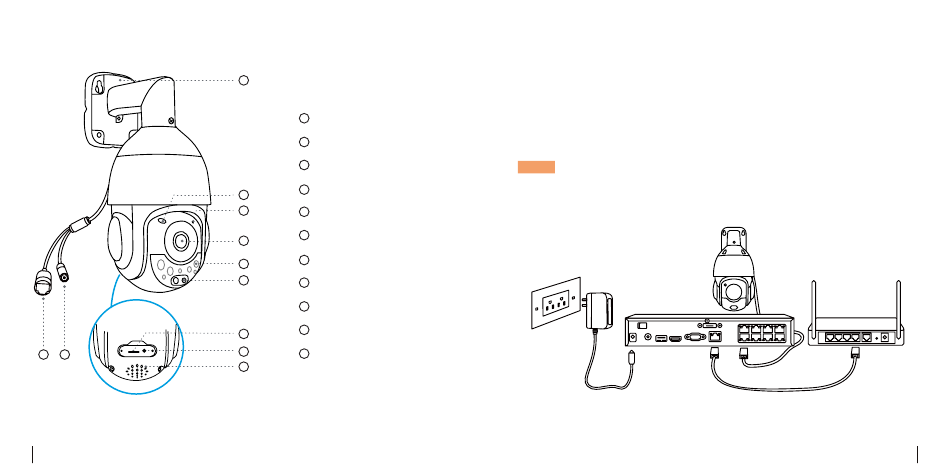

Camera Introduction
10 11
3 English
1
Bracket
1
Daylight Sensor
2
Microphone
3
Lens
4
2
IR LEDs
3
5
Spotlight
6
4
microSD Card Slot
7
5
Reset Button
6
8
Speaker
9
LAN Port
10
7
Power Port (Optional)
8
11
9
Connection Diagram
Before using the camera, please connect your camera as instructed
below to finish initial setup.
1. Connect the camera to a Reolink NVR (not included) with an Ethernet
cable.
2. Connect the NVR to your router, and then power on the NVR.
NOTE: The camera should be powered with a 12V DC adapter or a PoE
powering device such as PoE injector, PoE switch or Reolink NVR
(not included in the package).
Power Adapter
Reolink NVR
OFF ON
AUDIO
DC 48V OUT USB HDMI VGA
* You may also connect the camera to a PoE switch or PoE injector.
PoE IP Camera
Router
13 57
eSATA
LAN 24 68
Ethernet Cable
Ethernet Cable
