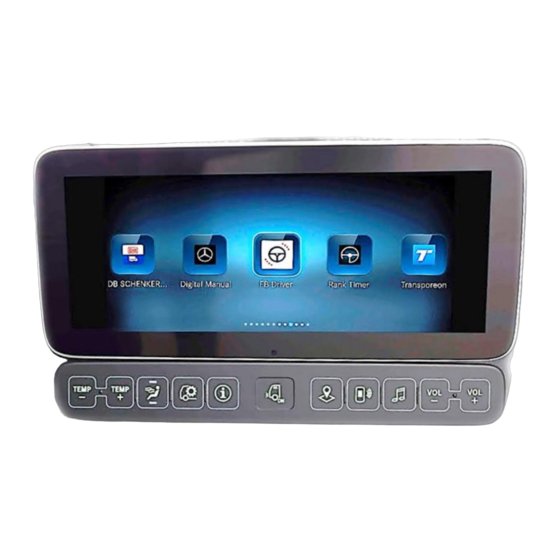

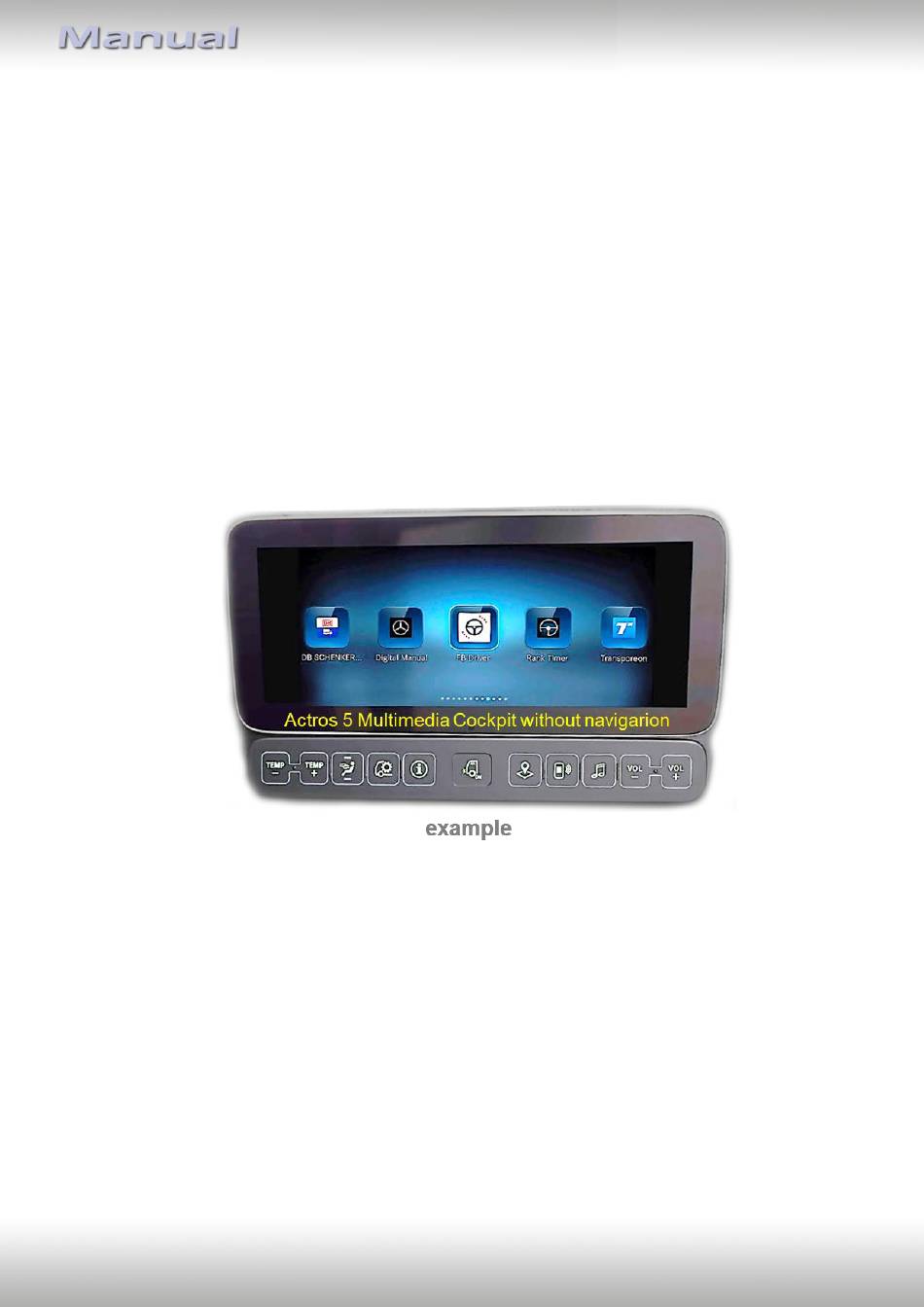

with Actros 5 Multimedia Cockpit
and 10.25inch monitor
Mercedes Benz vehicles
with Actros 5 Multimedia Radio Touch
and 10.25inch monitor
Video-inserter for front- and rear-view camera
Product features
• Video-inserter for factory-infotainment systems
• 1 CVBS Input for rear-view camera
• 1 CVBS Input for front camera
• 2 CVBS Video-inputs for after-market Video sources (e.g. DVD-Player, DVB-T Tuner)
• Automatic switching to rear-view camera input on engagement of the reverse gear
• Automatic front camera switching after reverse gear for 10 seconds
• Video-in-motion (ONLY for connected video-sources)
• Video-inputs NTSC and PAL compatible
Version 01.03.2022
Video inserter
RL4-MBMRT
Compatible with
without navigation
without navigation
and two more video inputs
HW:CAM(V100)/(V47)
RL4-MBMRT
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NavLinkz RL4-MBMRT
Summary of Contents for NavLinkz RL4-MBMRT
- Page 1 Video inserter RL4-MBMRT Compatible with Mercedes Benz vehicles with Actros 5 Multimedia Cockpit and 10.25inch monitor without navigation Mercedes Benz vehicles with Actros 5 Multimedia Radio Touch and 10.25inch monitor without navigation Video-inserter for front- and rear-view camera and two more video inputs Product features •...
-
Page 2: Table Of Contents
Power supply output 2.8. Connection - video-interface and external keypad 2.9. Connection - video-sources 2.10. Audio insertion 2.11. Picture settings and guide lines 3. Interface operation 4. Specifications 5. FAQ – Trouble Shooting-Interface functions 6. Technical support Version 01.03.2022 HW:CAM(V100)/(V47) RL4-MBMRT... -
Page 3: Prior To Installation
Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 01.03.2022 HW:CAM(V100)/(V47) RL4-MBMRT... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
To delay the switch-back an additional electronic part is required. After market front camera The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad. Version 01.03.2022 HW:CAM(V100)/(V47) RL4-MBMRT... -
Page 5: Boxes And Connectors - Video Interface
*enabled disabled for 10 seconds No function set to OFF Monitor selection 10.25inch monitor *The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. See the following chapters for detailed information. Version 01.03.2022 HW:CAM(V100)/(V47) RL4-MBMRT... -
Page 6: Adjustment - Power Supply Output (Dip 1)
1.4.5. Monitor selection (Dip 8) Dip switch 8 determines the type of monitor. For the 10.25inch monitor, the dip switch position is OFF. After each Dip-switch-change a power-reset of the interface box has to be performed! Version 01.03.2022 HW:CAM(V100)/(V47) RL4-MBMRT... -
Page 7: Settings - 6 Dip Switches (Top Of Box-Black)
If the necessary stabilized power supply for the interface is not taken directly from the battery, the chosen connection has to be checked for being constantly stabile. The interface needs a permanent 12V source! Version 01.03.2022 HW:CAM(V100)/(V47) RL4-MBMRT... - Page 8 2.1. Place of installation The video interface has to be installed near the MBUX head unit, which is located on the passenger side above the footwell. Version 01.03.2022 HW:CAM(V100)/(V47) RL4-MBMRT...
-
Page 9: Connection Schema
2.2. Connection schema Version 01.03.2022 HW:CAM(V100)/(V47) RL4-MBMRT... -
Page 10: Connection - Picture Signal Cable
Fakra connector and connect it to the male waterblue coloured double Fakra connector of the enclosed picture signal cable. Connect the picture signal cable’s waterblue coloured female double-Fakra connector to the head-unit’s previously become free green coloured double-Fakra connector. Version 01.03.2022 HW:CAM(V100)/(V47) RL4-MBMRT... -
Page 11: Installation With Connection To Can Bus Or Analogue (Without Can Bus)
2.4. Installation with connection to CAN bus or analogue (without CAN bus) Note: The RL4-MBMRT can be integrated via CAN bus as well as operated in analogue mode without CAN bus. When integrated via CAN bus by the 26pin PNP cable, the interface is switched on by the vehicle’s CAN-Bus. - Page 12 Attention: For analogue connection (without CAN bus), the violet wire of the 12-pin interface cable must also be connected to +12V or +24V ACC accessory power (see chapter „Connection – switching input by 12pin interface cable (with analogue connection without CAN-Bus)“. Version 01.03.2022 HW:CAM(V100)/(V47) RL4-MBMRT...
- Page 13 Both single grey coloured and blue coloured wires stay unconnected and have to be isolated. Attention: For analogue connection (without CAN bus), the violet wire of the 12-pin interface cable must also be connected to +12V or +24V ACC accessory power. (see following chapter). Version 01.03.2022 HW:CAM(V100)/(V47) RL4-MBMRT...
-
Page 14: Connection - Switching Input By 12Pin Power Cable (With Analogue Connection Without Can-Bus)
12pin interface cable, the MBUX screen is also switched on. Otherwise, the factory picture is black. When selecting the switch signal, please check whether the factory picture is available in all desired operating states. Version 01.03.2022 HW:CAM(V100)/(V47) RL4-MBMRT... -
Page 15: After-Market Rear-View Camera
52-pin connector. Connect the rear-view camera power cable to the red wire "ACC/front cam out +12V (max 3 A)" of the 12-pin interface cable. Connect the negative cable of the reversing camera to the vehicle’s negative Ground. Version 01.03.2022 HW:CAM(V100)/(V47) RL4-MBMRT... -
Page 16: After-Market Front Camera
Connect the rear-view camera power cable to the red wire "ACC/front cam out +12V (max 3 A)" of the 12-pin interface cable. Connect the negative cable of the front camera to the vehicle’s negative Ground ground. Version 01.03.2022 HW:CAM(V100)/(V47) RL4-MBMRT... -
Page 17: Power Supply Output
+12V (max. 3A) when reverse gear is engaged incl. 10 seconds delay after reverse gear is disengaged and +12V by manual switching to front camera by keypad (short press) Dip 1 OFF +12V (max. 3A) simulated ACC Version 01.03.2022 HW:CAM(V100)/(V47) RL4-MBMRT... -
Page 18: Connection - Video-Interface And External Keypad
Connect the female 4pin connector of the keypad to the male 4pin connector of the 12pin interface cable. Note: Even if switching through several video sources by the keypad mightn’t be required, for support events the connection and reachable availability is strongly recommended. Version 01.03.2022 HW:CAM(V100)/(V47) RL4-MBMRT... -
Page 19: Connection - Video-Sources
Connect the front camera’s video RCA connector to the 12pin interface cable’s female RCA connector „Front V3“. Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA connector “Left (V1)” ”Right (V2)”. Version 01.03.2022 HW:CAM(V100)/(V47) RL4-MBMRT... -
Page 20: Audio Insertion
The following settings are available: Contrast Brightness Saturation Position H (horizontal picture position) Position V (vertical picture position) IR-AV1/2 (no function) Guide L (no function) Guide R (no function) UI-CNTRL (no function) Size H/V (picture size horizontal/vertical) Version 01.03.2022 HW:CAM(V100)/(V47) RL4-MBMRT... -
Page 21: Interface Operation
7V - 25V Stand-by power drain Power 260mA @12V Video input 0.7V - 1V Video input formats NTSC/PAL Temperature range -40°C to +85°C Dimensions video-box 119 x 24 x 100 mm (W x H x D) Version 01.03.2022 HW:CAM(V100)/(V47) RL4-MBMRT... -
Page 22: Faq - Trouble Shooting-Interface Functions
Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 01.03.2022 HW:CAM(V100)/(V47) RL4-MBMRT... -
Page 23: Technical Support
6pin to 8pin cable and isolate both ends. Technical Support Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH...
