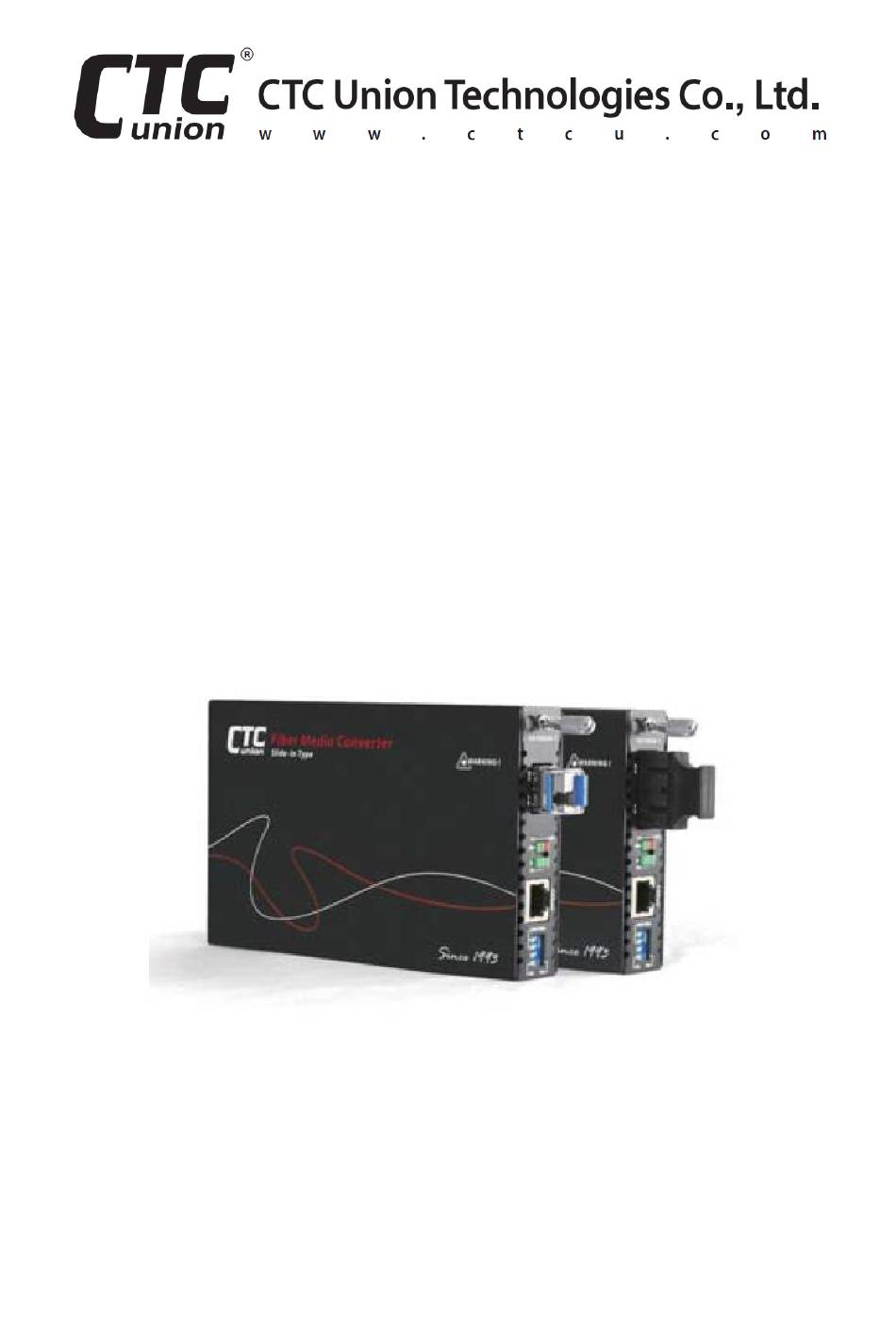

- Page 1 User Guide FRM220-10/100i FRM220-10/100iS 10/100Base-TX to 100Base-FX In-band Managed Fiber Media Converter 10/100Base-TX to 100Base-FX SFP In-band Managed Fiber Media Converter sales@ctcu.com...
- Page 2 8F, No. 60 Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2020 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
- Page 3 CTC Union Technologies makes no warranty, representation, or guarantee regarding the suitability of its products for any particular purpose, nor does CTC Union assume any liability arising out of the application or use of any product and specifically disclaims any and all liability, including without limitation any consequential or incidental damages.
- Page 4 Table of Contents Introduction .................. 5 Features ..................5 Specifications ................6 ....................... 6 TANDARDS 10/100BASE-TX RJ-45 C ..............6 ONNECTORS 100BASE-TX UTP C ..................6 ABLE ..................6 IBER PTIC ONNECTORS ....................6 NVIRONMENT ......................6 OWER ..................7 IMENSION AND EIGHT Panel .....................
- Page 5 FRM220 Platform Media Converter Chassis and available in a number of different models that also act as a stand-alone converter for placement in one-slot chassis. The FRM220-10/100i & FRM220-10/100iS are media converters for 10Base-T, 100Base-TX or 100Base-FX, data transmission over optical fiber media depending on your specific network needs. All media converters are available with either multi-mode or single-mode optical transceivers and with connectors for SC, ST, FC or SFP.
- Page 6 Cable type: 100Base-Tx; Category 5 or better Maximum cable distance: 100 meters (328 feet) Fiber Optic Connectors FRM220-10/100i: one 1x9 (SC, ST, FC) fixed fiber FRM220-10/100iS: one SFP slot with LC connectors is provided for optic cable connection (SFP transceiver not included) Environment ...
- Page 7 Dimension and Weight 10/100i(S)--CH01: 88 mm (W) × 168 mm (D) × 23 mm (H) 10/100i(S)--CH01/AC: 135 mm (W) × 212 mm (D) × 32 mm (H) 10/100i(S)--CH01/DC: 135 mm (W) × 222 mm (D) × 32 mm (H) ...
- Page 8 Panel Figure 1. Front Panel of FRM220-10/100i & FRM220-10/100iS Figure 2. Rear Panel of Stand-alone FRM220-10/100i(S)-DC12 FRM220-10/100i(S)-AC/DC48/AD/AA/DD...
- Page 9 Link-Fault-Pass through (LFP) Application Note When "link fault pass through" function is enabled, link status on TX port will inform the FX port of the same device and vice versa. From the link fault pass through explanation in the figure below, if link fail occurs on TX port (1), the local FX port sends non-idle pattern to notify the remote FX port (2).
- Page 10 LED Indicators Function State Status Power Converter has power. indicator Converter has no power. The fiber link is ok. Fiber link No link or the link is faulty. link/Act & activity Blinking Fiber link ok with activity. Far end is experiencing link Far End fault.
- Page 11 Installation Connect the Ethernet cable to the FRM220-10/100i(S) Series. The converter will sense whether to operate in Full or Half mode and will be indicated on the LED. Follow the connection examples below. Install the fiber converter with the DC power adapter provided (+12VDC, 1A) and connect the adapter to an AC outlet.
- Page 12 38400 baud 8 bits N no parity 1 Stop bit no flow control **************************************** *** CTC UNION TECHNOLOGIES CO.,LTD *** FRM220 10-100I Manager Ver:1.68 **************************************** <1>: Port Active [Enable] [Local] [Ver:1.100-1.688-0.000-0.000] UTP Link:[Up] Rx Active:[Off] <2>: Negotiation:[Auto ] <3>: Speed: [ 100 ] <4>: Duplex: [ Full ]...
- Page 13 Log in with Console Terminal The log in screen appears as follows: **************************************** *** CTC UNION TECHNOLOGIES CO.,LTD *** FRM220 10-100I Manager Ver:1.68 **************************************** Password Enter your password. If it is an initial installation, enter admin password. Functional Descriptions 1. Port Active: Use this to enable or disable this device 2.
- Page 14 Version Date Description 2020/9/25 Use new document format...
