CTC Union FRM220-10/100iS-2 User Manual

Introduction
The FRM220-10/100iS-2 is a dual channel (two in one) 10/100Base Ethernet to 100Base-FX
fiber slide-in card converter designed for central applications. With advanced features like
bandwidth control, this media converter is targeted for first mile equipment in metro LAN,
campus, enterprise and FTTx applications. By offering in-band management, this converter
can be completely controlled and monitored from a centrally located managed rack
controlling all converter settings including band-width control, duplex, and speed
configuration. This media converter is completely transparent to Layer 2 and Layer 3
protocols including IEEE 802.1q, VLAN tag, Q in Q, STP, IPX, IP, etc.
Features
■
2 independent 10/100BASE-TX to 100BASE-FX Converters
■
Compatible with FRM220 10/100i
■
2 independent channels OAM in-band management media converter
■
Auto-Cross over for MDI/MDIX at TP port
■
Supports far end fault function
■
Auto-Negotiation or forced mode at TP port
■
Supports link fault pass through (LFP) function
■
Supports flow control
■
Bandwidth control (32K or 512Kbps x N)
■
Supports Loop Back Test
■
Forward 2046 bytes (max.) packets in switch mode
■
Forward 9K jumbo packets in converter mode
■
Supports remote CPE power fail detection (dying gasp)
■
Supports Auto Laser Shutdown (ALS) function
■
Supports On-line remote F/W upgrade
s a l e s @ c t c u . c o m
Panel

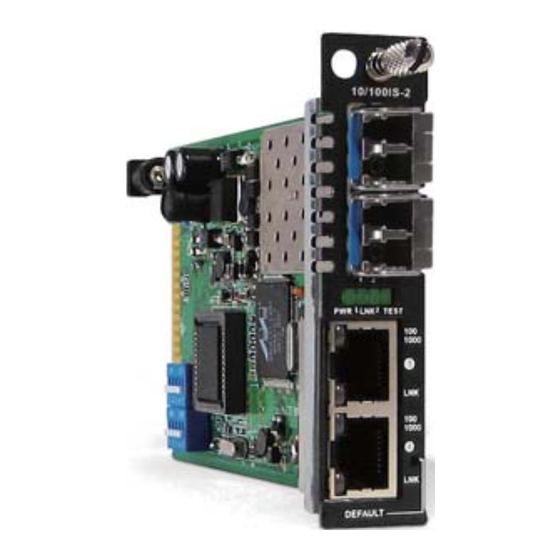

■ Figure #1. Front Panel of FRM220-10/100iS-2
■ Figure #2. Rear Panel of Stand-alone FRM220-10/100iS-2
FRM220-10/100IS-AC/DC48/AD/AA/DD
CH01 CH01-AA CH01-DD
AC Adapter
s a l e s @ c t c u . c o m
w w w . c t c u . c o m
CH01-AD CH01-DC CH01-AC
CH01M-AD
w w w . c t c u . c o m
CTC Union Technologies Co., Ltd.
w w w
User Guide
In-band Managed Fiber Media Converter
． Dual channels 10/100Base-TX / 100Base-FX
． FRM220-10/100iS-2
s a l e s @ c t c u . c o m
Specifications
Standards
IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, 100BASE-FX
Supports Full Duplex Ethernet mode
Supports Ethernet Packet up to 2046Bytes. In switch mode or jumbo
Packets ( >9K ) in converter mode.
10/100BASE-TX RJ-45 Connectors
Two RJ-45 connectors are provided for LAN port TX1, TX2
Auto MDI-X allows all UTP connections to be made using only a common straight-through
UTP cable.
RJ-45 Pin
1
2
3
6
100BASE-TX UTP Cable
Cable type: 100Base-Tx; Category 5 or better
Maximum cable distance: 100 meters (328 feet)
Fiber Optic Connectors
FRM220-10/100iS-2 : two SFP slots LC connectors are provided for FX1, FX2
Environment
Operating -- -10°C – 60°C, Storage -- -20°C – 70°C
Humidity -- 10 – 95%, (non-condensing)
Power
Adapter: 12VDC 1A, Built-in AC Power 100~240V, Built-in DC Power 18~72VDC
Consumption : < 5W
Dimension and Weight: ( W x D x H ) mm
- 10/100iS-2--CH01 : 88 × 168 × 23 mm
- 10/100iS-2--CH01/AC : 135 × 212 × 32 mm
- 10/100iS-2--CH01/DC : 135 × 222 × 32 mm
- 10/100iS-2--CH01/AD : 135 × 222 × 32 mm
- 10/100iS-2--CH01/AA : 135 × 212 × 32 mm
- 10/100iS-2--CH01/DD : 135 × 222 × 32 mm
Certification
FCC Part 15 Class A,CE Mark
s a l e s @ c t c u . c o m
. c t c u . c o
MDI-X type MDI type
Rx+ Tx+
Rx - Tx -
Tx+ Rx+
Tx - Rx -
- 10/100iS-2--CH01M/AC : 135 × 212 × 32 mm
- 10/100iS-2--CH01M/DC : 135 × 222 × 32 mm
- 10/100iS-2--CH01M/AD : 135 × 222 × 32 mm
- 10/100iS-2--CH01M/AA : 135 × 212 × 32 mm
- 10/100iS-2--CH01M/DD : 135 × 222 × 32 mm
