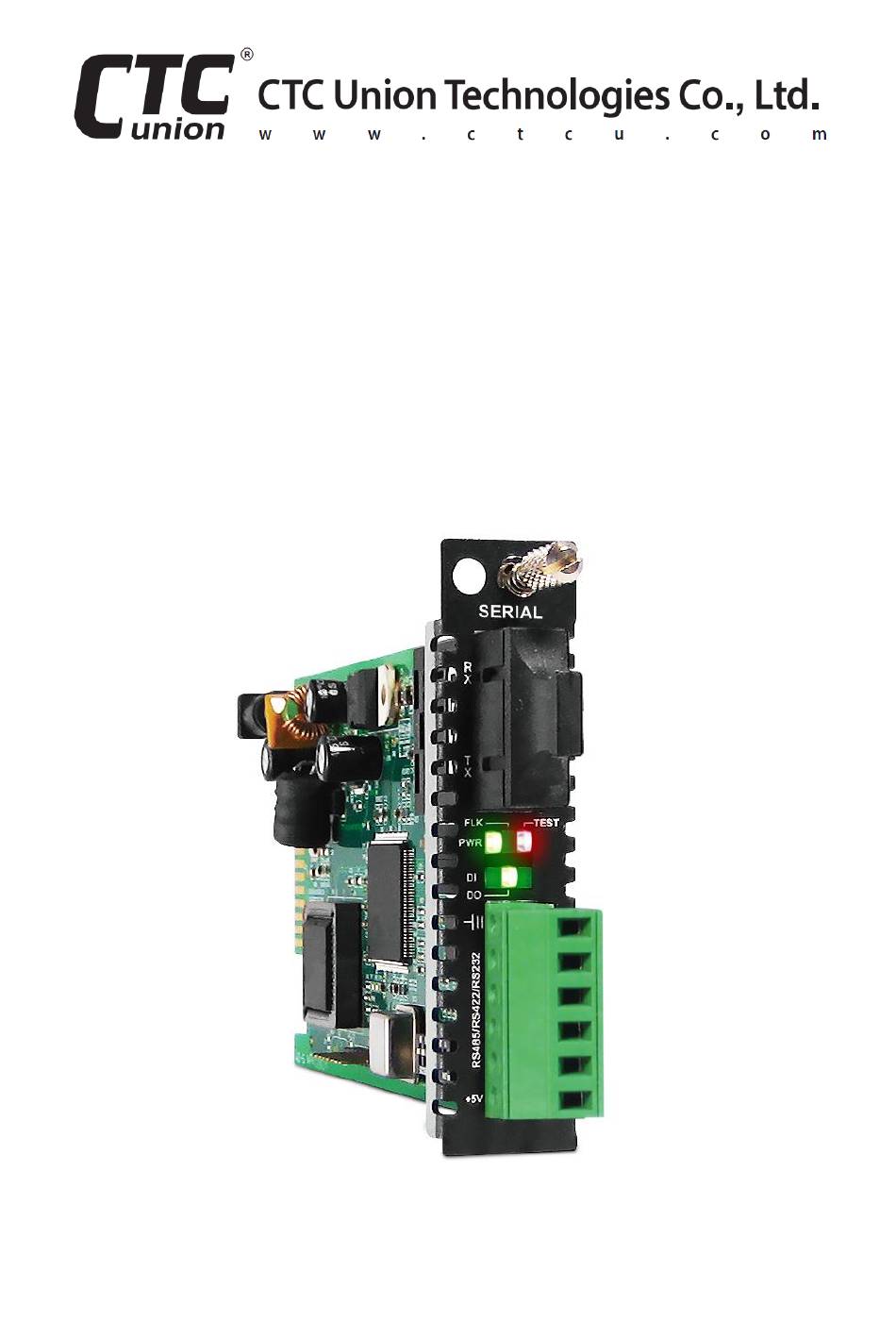

- Page 1 Quick Installation Guide FRM220-Serial FRM220-Serial/SFP RS-232, RS-422, RS-485 over Fiber Media Converter sales@ctcu.com...
- Page 2 8F, No. 60 Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2021 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
- Page 3 CTC Union Technologies makes no warranty, representation, or guarantee regarding the suitability of its products for any particular purpose, nor does CTC Union assume any liability arising out of the application or use of any product and specifically disclaims any and all liability, including without limitation any consequential or incidental damages.
-
Page 4: Table Of Contents
Table of Contents Introduction .................. 5 Features ..................5 Specifications ................5 ......................5 PTICAL ................. 5 ONNECTORS PECIFICATIONS DATA SIGNAL S ................5 PECIFICATIONS Installation ..................6 LED Indicators ................6 DIP Setting Table ................6 RS-485/422 T .................. 7 ERMINATION RS-485/422 P ................ -
Page 5: Introduction
2KM over multi-mode fiber or up to 120KM over single mode fiber. The unit is user-configurable for RS-232, 3 & 5 wire, RS-485, 2 & 4 wire or RS-422 4 wire. The FRM220-Serial secures data transmissions at speeds up to 256K for RS-232, or up to 1024Kbps for RS-485/422. -
Page 6: Installation
Installation Caution: Wear a grounding strap or maintain a physical contact with equipment ground when setting the DIP switch. Failure to do so may result in failure of the media converter due to electrostatic discharge (ESD). Follow the normal procedures for installing this line card as described in the FRM220 Chassis Quick Start Guide. -
Page 7: Rs-485/422 Termination
RS-485/422 Termination Termination is used to match impedance of a node to the impedance of the transmission line being used. When impedances are mismatched, the transmitted signal is not completely absorbed by the load and a portion is reflected back into the transmission line. This reflection may cause errors in the data. -
Page 8: Dip Switch
DIP Switch The 6 pole DIP switch is located on the serial converter's PCBA and is accessible from the front of the converter. Refer to the graphic for a brief description of each switch. Refer to Configuration Settings. I/F Setting (3) RS-485 Tx Termination on/off * (4) RS-485 Rx Termination on/off * (5) Rx (B)(-) 1KΩ... -
Page 9: Rs-232 5-Wire
RS-232 5-wire For RS-232 5 wire operation, TD, RD and SG are connected, plus 1 handshaking pair. Signal Connections Connection RS-232 RTS/CTS In RS-232 Data Out RS-232 RTS/CTS Out Set Interface 1 Off, 2 On RS-232 Data In sw. 3,4,5,6 must be off Signal Ground Data input- 5 3 -Data output... -
Page 10: Rs-485 4-Wire (Full Duplex)
RS-485 4-wire (Full Duplex) For RS-485 4 wire operation, Tx+, Tx-, Rx+ and Rx- are connected. Signal Connections Connection RS-485 Out+ RS-485 Out- Set Interface: 1&2 Off RS-485 In+ Set termination: 3&4 On RS-485 In- For noise suppression; Set 5&6 On Signal Ground 2 Tx+ Rx+ 4... - Page 11 Version Date Description 2020/5/29 Revise DIP switch New format 1.6a 2021/3/8 Revise Optical info in page 5...
