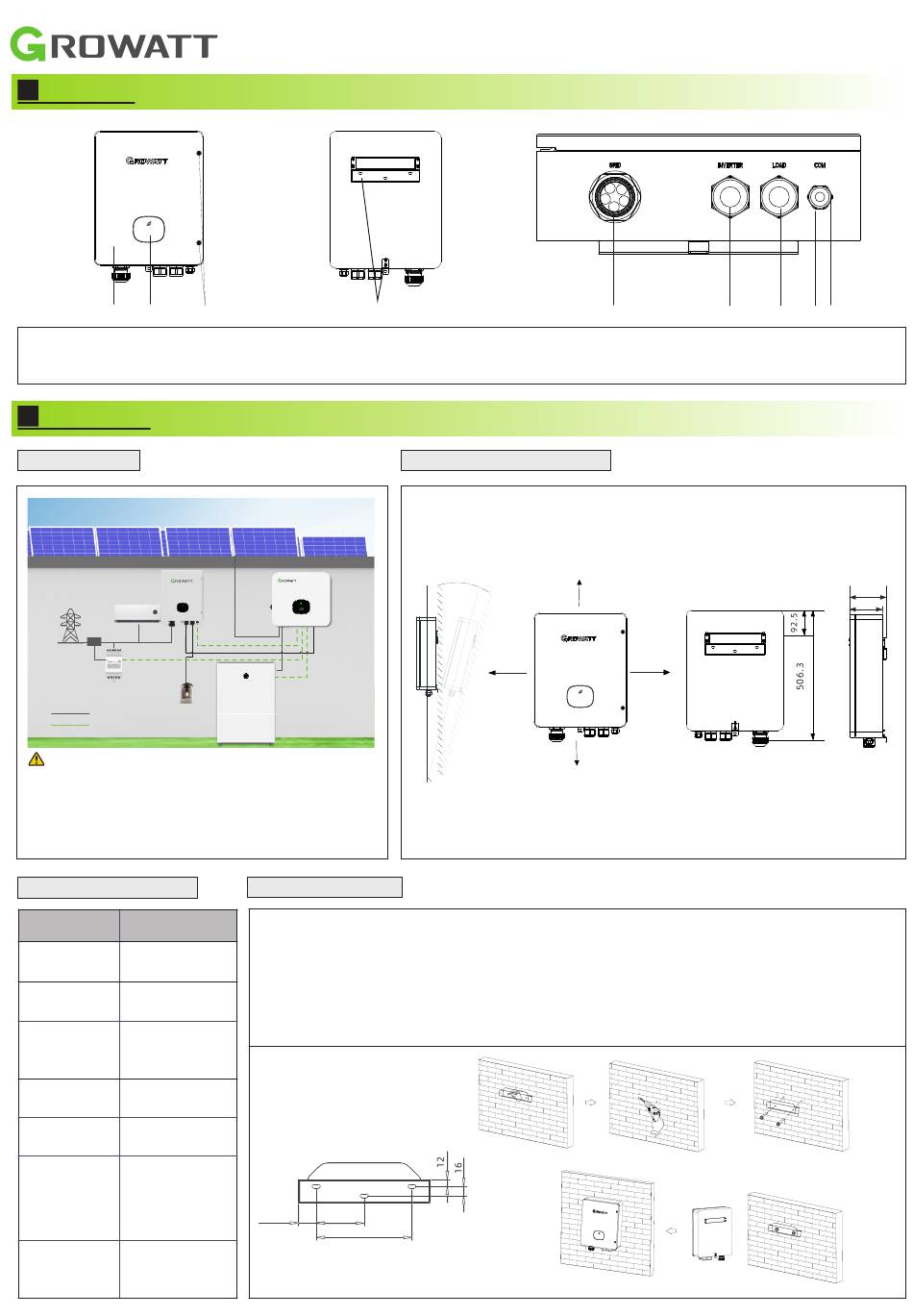

Growatt SYN 100-XH-30 Quick Manual

1
. Overview
2
1
(1) Front panel (2) LED indicator
(6) Inverter wiring port (7) Load wiring port
2.
Installation
System overview
Normal
Loads
CT
Meter
Critical Loads
Power cable
Communication cable
Note:
1. The critical load power depends on the power
rating of the inverter and battery.
2. The off-grid function is only available when the
XH inverter is paired with the APX battery system
and the backup box.
2.1
Electrical parameters
Model name SYN 100-XH-30
Three-phase
Grid type
four-wire system
Max. grid
125 a.c.A
current
Max.
continuous 90 a.c.A
grid current
Nominal grid
50/60Hz
frequency
Range of grid
45～65Hz
frequency
Max.
continuous
58 a.c.A
inverter input
current
Max. backup
output 58 a.c.A
current
4
3
(3) Screw for front panel
(8) COM wiring port
Inverter
Backup
1 0 K TL
Box
Battery
2.3
Installation steps
1. Choose a suitable installation position. The SYN 100-XH-30 can be mounted on a solid wall, a
stud frame or a pole and keep it free from direct sunlight.
2. To ensure heat dissipation, please maintain at least a 300 mm clearance between the SYN
100-XH-30 and other objects.
3. Place the mounting bracket against the wall/pole and mark the drilling hole positions.
4. Drill holes and mount the bracket. Ensure that the bracket is securely installed.
5. Install the SYN 100-XH-30 onto the mounting bracket.
30.5 82
164
Dimensions (Unit: mm)
(4) Mounting bracket
(9) Waterproof plugs
2.2
Installation requirements
≤15°
≥300
SYN 100-XH-30 Quick Guide
6
5
(5)Grid wiring port
≥300
365.0
≥300
≥500
7 9
8
Unit: mm
8.0
134.7
120.2
