1 Product Overview

1.1 Intended Use

Each ALP 5.0L consists of 100Ah cells which form a 51.2V voltage battery module

and sixteen serial connection (1P16S). A single cluster can connect up to 8

batteries in parallel to expand the capacity and power of the energy storage

system, and eight clusters can reach a maximum of 320kWh. Battery modules of

the same type can be connected in parallel regardless of its software version.

Specifically, the ALP battery system powers the loads through PCS at nighttime

without solar; when solar becomes available during daytime, solar energy

powers the loads as a priority and the surplus solar power is stored in the ALP

battery system.

1.2 Appearance

ALP 5.0L consists of the battery module (including cells and mechanical parts),

battery management system (BMS) as well as power and communication

terminals. Product appearance is shown as below.

1.2.1 Dimensions

690mm

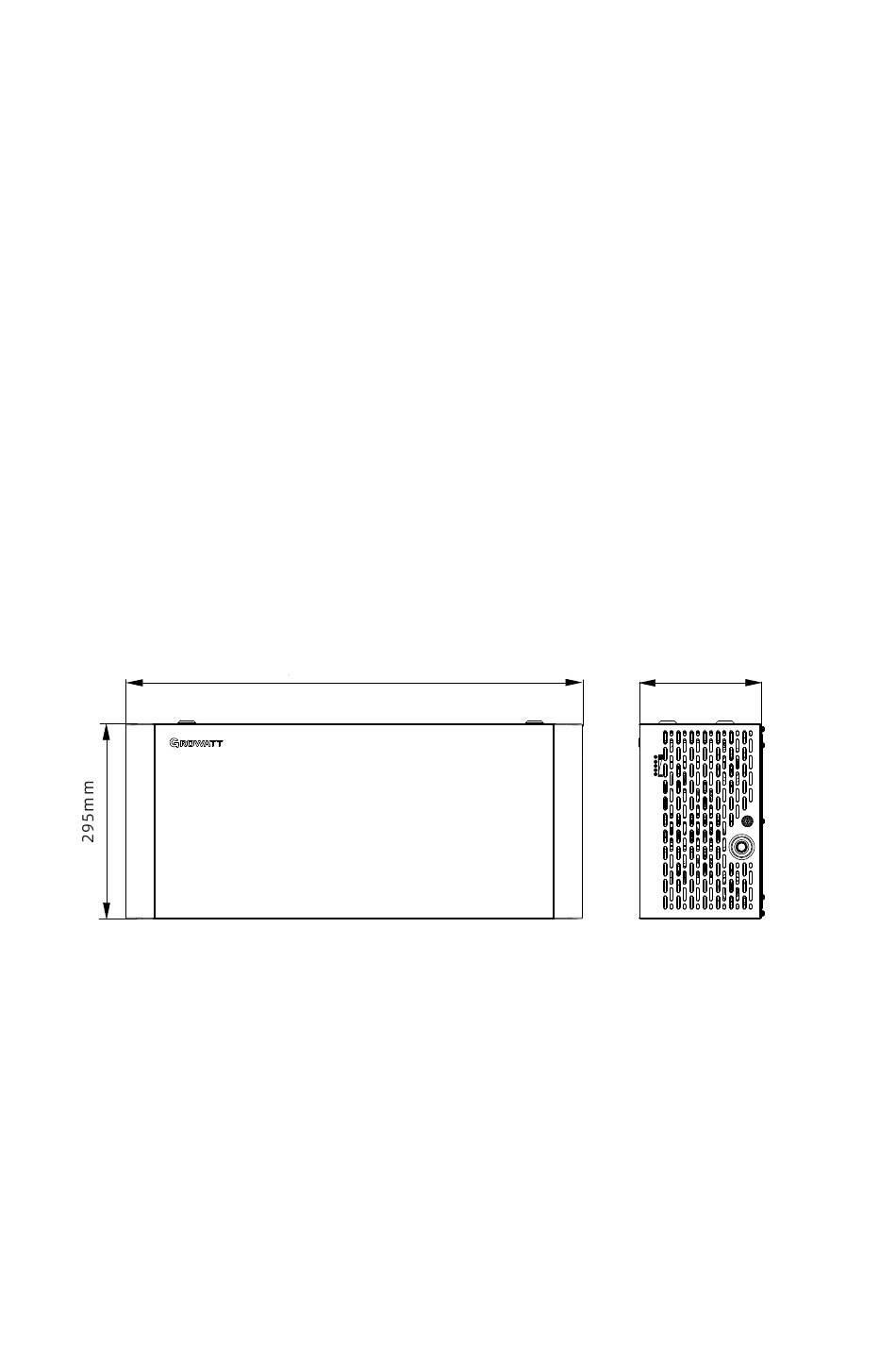

Fig 1.1: Dimensions of the battery module

185mm

POWER

Need help?

Do you have a question about the ALP5.0L-E2 LV and is the answer not in the manual?

Page 1 1 Product Overview 1.1 Intended Use Each ALP 5.0L consists of 100Ah cells which form a 51.2V voltage battery module and sixteen serial connection (1P16S). A single cluster can connect up to 8 batteries in parallel to expand the capacity and power of the energy storage system, and eight clusters can reach a maximum of 320kWh.
Page 2 1.2.2 Introduction to the battery operation panel Fig 1.2: Introduction to the battery operation panel Description Description Cluster-out communication LINK-IN CAN communication PCS CAN communication Negative terminal Power button USB interface LINK-OUT CAN communication Positive terminal GND terminal Cluster-in communication Fig 1.3: LED lights...
Page 3 Name Color Description Green Normal operation Failure or protection status LED 4 Blue 76%-100% LED 3 Blue 51%-75% LED 2 Blue 26%-50% LED 1 Blue 0%-25% 1.3 Working Principle and Function ALP 5.0L is an energy storage unit composed of electrochemical cells, the switch button, the battery management unit, power and signal terminals, and mechanical parts.
