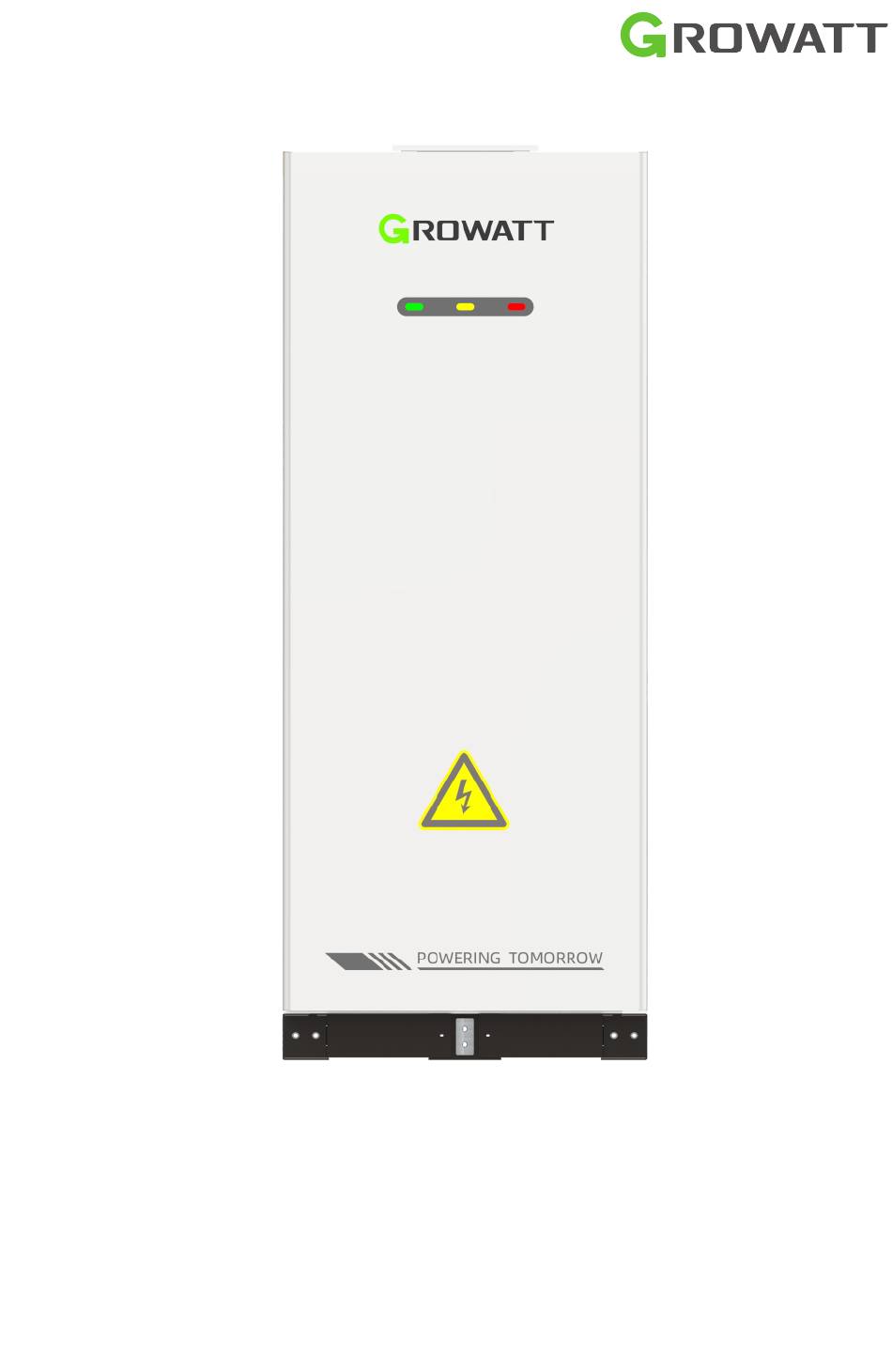

  • Page 1 AXE 50.0~60.0H-1HT-S1 High Voltage Battery System User Manual...
  • Page 2 About This Document This document introduces the AXE 50.0~60.0H-1HT-S1 High Voltage Battery System in terms of its installation, electrical connection, operation, commission, maintenance, and troubleshooting. Before installing and operating the AXE system, ensure that you are familiar with the product features, functions, and safety precautions provided in this document.
  • Page 3 Change history Version 00 First release...
  • Page 4: Table Of Contents

    Table of Contents 1 Product Overview ..............1 1.1 Intended Use ......................1 1.2 Appearance......................1 1.2.1 Battery Cabinet ....................1 1.2.2 Intra-cabinet Components ................3 1.2.3 AXE 1000100-C1 (Control Module) ..............4 1.2.4 AXE 5.0H-E1 EU (Battery Module) ..............5 Working Principle and Function .................
  • Page 5 5.2.1 Power-on procedure ..................25 5.2.2 Commissioning ....................26 5.2.3 Power-off procedure ..................26 Electrical schematic ..................26 Maintenance Guide ..............27 6.1 Preparation ......................27 Replacing the BM or the CM ................27 System Failure Information List and Troubleshooting Suggestions .....
  • Page 6: Product Overview

    1 Product Overview 1.1 Intended Use The entire AXE 5 .0~60.0H-1HT-S1 High Voltage Battery System includes a AXE 1000100-C1(high voltage controller) and multiple AXE 5.0H-E1 EU (battery pack). Each AXE 5.0H-E1 EU consists of 100Ah cells which form 51.2V voltage battery pack via one parallel and sixteen serial connection (1P16S).
  • Page 7 Component Description LED indicator Indicates the operating status of the energy storage of front system Green: running normally; yellow: alarm; red: fault LED indicator Indicates the operating status of the energy storage of back system Green: running normally; yellow: alarm; red: fault Lock Safety gear Air conditioner...
  • Page 8: Intra-Cabinet Components

    1.2.2 Intra-cabinet Components The Intra-cabinet components appearance of the product is shown below. Figure 1.3 The panels of the intra-cabinet components Position Module Description Temperature sensor Temperature detection Battery pack Energy storage device High voltage box Battery charge/discharge control device Water leak sensor Water leak detection...
  • Page 9: Axe 1000100-C1 (Control Module)

    Position Module Description Smoke sensor Smoke detection Hydrogen Exhaust Exhaust of combustible gases from System the cabinet Aerosol For firefighting Monitoring of door opening and Access Control Sensor closing status Combustible gas Combustible gas detection detection sensor Regulates temperature and humidity Air conditioner inside the Emergency stop...
  • Page 10: Axe 5.0H-E1 Eu (Battery Module)

    Position Item Description Start button To power on the energy storage system Connected to the communication port of COM3 communication the battery pack’s BM board ,FAN 24V power terminal supply port and heating film power line Connected to panel indicators, tripping COM2 communication control board and emergency stop switch, terminal...
  • Page 11: Working Principle And Function

    Position Item Description Positive battery pack Positive battery pack connector terminal For communication between battery COM1 communication packs, FAN power supply and Heating terminal film power line loop For communication between battery COM2 communication packs, FAN power supply and Heating terminal film power line loop 1.3 Working Principle and Function...
  • Page 12: Safety

    Before any installation or use of the battery system, please read all safety instructions carefully and always follow the relevant rules. Growatt is not responsible for any of the following circumstances or their consequences: Ÿ...
  • Page 13: Operation Precautions

    2.2.2 Operation Precautions Ÿ Do not touch the battery system with wet hands. Ÿ Do not disassemble the battery system without permission. Ÿ Do not crush, drop or pierce the battery pack and the high voltage controller. Ÿ Dispose the batteries according to local safety regulations. Ÿ...
  • Page 14 Symbols Description Heavy enough to cause severe injury Keep the Pack away from children Make sure the battery polarity well connected Do not expose to fire Observe the manual Figure 2.1 Nameplate...
  • Page 15 Energy Storage System AXE 50.0H-1HT-S1/512V/ □ 50kWh/50kW/≤0.9t/464-576V System Model/ Nominal Voltage/ Nominal Energy / AXE 55.0H-1HT-S1/563.2V/ □ Max Output Power/ 55kWh/55kW/≤0.95t/510.4-633.6V Weight /Operating Voltage Range AXE 60.0H-1HT-S1/614.4V/ □ 60kWh/60kW/≤1t/556.8-691.2V Battery Type LiFePO Max. Charge and Discharge Current 100A Operating Temperature -25℃~+55℃...
  • Page 16: Emergency Responses

    Damage to the shell is very dangerous, so special attention Damaged must be paid. They are no longer suitable for use and may be shell dangerous to personnel. If the battery case is damaged, please stop using it and contact Growatt or distributors.
  • Page 17: Storage And Transportation 3

    Storage and Transportation 3 3.1 Storage Requirements Ø Place the product follow the identification on the packing case during storage. Ø Do not put the product upside down or sidelong. Ø The defective product needs to be separated from other product. The storage environment requirements are as follows: Ø...
  • Page 18: Transportation Requirements

    3.2 Transportation Requirements Battery pack has been certified in UN38.3 (Section 38.3 of the sixth Revised Ø Edition of the Recommendations on the Transport of Dangerous Goods: Manual of Tests and Criteria) and SN/T 0370.2-2009 (Part 2: Performance Test of the Rules for the Inspection of Packaging for Exporting Dangerous Goods).
  • Page 19: Installation 4

    Installation 4 Ø The installation and use of batteries involve a lot of expertise. Therefore, please ensure that technicians have obtained relevant technical certificates before operation. Ø Ensure to read the Guidance before installation in order to understand product information and safety cautions. Operators should be well trained technicians and fully Ø...
  • Page 20: Basic Installation Requirements

    4.2 Basic Installation Requirements Energy Storage System Installation Environmental Requirement: The ESS may corrode if installed in areas with salt damage or pollution. The ESS is suitable for the following or better environments: 1) Outdoor environments more than 2000 meters away from the coast: Installation within 2000 meters of the coast is not recommended.
  • Page 21: Installation Tools

    Ø Multiple cabinets in parallel: A maximum of 4 cabinets can be configured in parallel and the cabinets can be mounted side by side with no gap in between. The figure below takes the configuration of three cabinets in parallel working with the PCS (WIT-30-55K-XHU) as an example: Top view Cabinet3...
  • Page 22: Installation Procedures

    4.4 Installation Procedures 4.4.1 Pre-installation Check Check the PACK package before open it. If any abnormity is detected, do not Ø open the package and contact your distributor. Check and confirm the PACK is powered off before installation. Ø Check the quantity of all parts inside according to the package list. If there is Ø...
  • Page 23: Transportation And Installation

    4.4.2 Transportation and Installation 4.4.2.1 Level the fundation Φ200mm PVC pipe catch Paint yellow and black crosswalk around basins using Φ100mm PE the exposed foundation on the ground. pipe to rainwater wells Cement mortar on the inner wall of cable trench C35 Concrete foundation Pre-embedded 40X4 Ground...
  • Page 24 4.4.2.3 Adopt lifting to transport the cabinet On-site transportation of cabinets can be used lifting or forklift according to the actual situation. Pass the lifting rope through the 4 rings on the top of the cabinet, use the lifting equipment to lift the cabinet by the lifting rope and move it to the designated position.
  • Page 25 Strap Figure 4.7 Forklift transport process 4.4.2.5 Preparation before installing cabinets Step 1: Check the appearance of the cabinet for good conditicon. Step 2: Loosen the screws. Remove the front and rear covers of the base. Step 3: Remove the pallet after the cabinet has been lifted. Remove the pallet Remove the front and rear covers of the base Figure 4.8 Cabinet installation preparations...
  • Page 26 4.4.2.6 Install the cabinet on the foundation Grounding point, fixed firmly with M12 screws. Ground Ground Ground Ground Connection point of cabinet and foundation, fixed firmly with M12 screws. Figure 4.9 Install the cabinet on the foundation process...
  • Page 27: Assembling Pcs

    4.5 Assembling PCS This cabinet is compatible with various PCS. Take connecting to the WIT30-55K as an example. Step 1: Assemble the PCS bracket Figure 4.10 Step 1 Assemble the PCS Step 2: Use the tool to lift the PCS and hang it on the bracket. Tighten the screws Figure 4.11 Step 2 Assemble the PCS...
  • Page 28 Step 3: The single cabinet side mount PCS is as follows, connecting the cables Ground Figure 4.12 Step 3 Assemble the PCS Step 4: WIT 29.9-50K-XHU supports the connection of up to 3 energy storage cabinets in parallel. Figure 4.13 Step 4 Assemble the PCS...
  • Page 29: Powering On And Off The Battery System

    Power on and off the Battery 5 System The installation and use of batteries need to be operated by Ø professional technicians. Do not contact any positions with potential difference. Ø Prohibition sign should be hung on the battery: " Non - Ø...
  • Page 30: Battery Cabinet Installation Inspection

    5.1.2 Battery cabinet installation inspection Cabinet inspection: Checking item Acceptance criteria Installation complies with the design requirements. Ÿ Installation The cabinet is level, and each door opens properly. Ÿ The surface of the cabinet is free from cracks, dents Ÿ Appearance and scratches.
  • Page 31: Commissioning

    5.2.2 Commissioning Prerequisites: All devices on site have passed the on-site tests. The system has been powered on and no alarm/fault is reported. The commissioning tools are available on site. 5.2.3 Power-off procedure Turn off the AC power supply, including the HVC and socket Turn off the main breaker of the auxiliary power supply in the AC distribution box.
  • Page 32: Maintenance Guide

    6 Maintenance Guide 6.1 Preparation Before maintenance, please make sure that the battery system is powered off and the DC circuit breaker is off. 6.2 Replacing the BM or the CM NOTE: Replace the battery if the following conditions occur: The internal circuit of the battery expansion module is faulty, the battery health reaches the end point, the battery appearance is deformed, damaged, or leaks.
  • Page 33 Error Indication Error Error cause Suggested actions FAULT START description Single cell 1. There is no safety threat; voltage 2. User should stop Charge over exceeding charging. Wait for the voltage threshold for battery system to protection protection automatically resolve the threshold.
  • Page 34: Extension

    Error Indication Error Error cause Suggested actions FAULT START description 1. Check whether the communication line between the battery pack and the battery pack is Interior Communication connected OK; Communicati loss between two 2. Check whether the on failure packs communication line between the high voltage controller and the battery...
  • Page 35: System Maintenance

    Note: 1. If not follow this guide, the battery system performance will be affected or even unable operate properly. 2. If the new battery module SOC and the existing system are not at same level,the battery system capacity will be limit and SOC jumps. 6.5 System Maintenance 6.5.1 Safety Precautions The interior of the energy storage cabinet contains lethal high voltage.
  • Page 36 Other Maintenance Items Inspection Procedure Maintenance Item Description Interval Component Routine inspection of all metal components Ÿ 6 months Inspection Verify equipment operating parameters Ÿ Clean dust from circuit boards and Ÿ Internal components 6 months Components Clean AC filter Ÿ...
  • Page 37: System Cleaning

    6.5.3 System Cleaning Regular cleaning is essential for outdoor energy storage cabinets to remove surface contaminants and internal dust. This enhances heat dissipation, reduced shell corrosion, reduces energy consumption, prolongs lifespan, and minimizes safety risks. 1) Exterior Cleaning: Ÿ Wipe surfaces with a cloth or mop. Avoid water entering vents. 2) Interior Cleaning: Ÿ...
  • Page 38: Technical Specifications

    7 Technical Specifications 7.1 AXE 1000100-C1 (Control Module) Items Specifications Model AXE 1000100-C1 Input/output voltage range 120V-1000Vdc Rated current 100A Operating ambient temperature -10~50℃ IP rating IP20 Communication method CAN/Daisy chain/RS485/USB Dimensions (W/D/H) W482*D580*H131mm Weight ≤15Kg Certification CE/IEC62619/IEC62477 Environment requirements RoHS 7.2 AXE 5.0H-E1 EU (Battery Module) Items...
  • Page 39: System Date

    Items Specifications Weight ≤47kg Installation Floor stand Ingress protection IP20 Cell safety certification IEC62619/UL1973 UN 38.3/IEC 62619/IEC 60730/IEC safety certification 62477/CE/ROSH Transportation test standard UN38.3 Environment requirements RoHS Battery designation IFpP/51/161/119/[1P16S]M/-10+50/90 6000 cycles Cycle life (@25±2℃,0.5C,60%EOL) 7.3 System Date System Model AXE 50.0H-1HT-S1 AXE 55.0H-1HT-S1 AXE 60.0H-1HT-S1 Energy Capacity 50kWh...
  • Page 40 System Model AXE 50.0H-1HT-S1 AXE 55.0H-1HT-S1 AXE 60.0H-1HT-S1 Operating ambient -10℃~50℃ temperature >95% Maximum support 12 units in series, series voltage Battery pack in difference series △V≤0.5V Humidity 5%~95% Temperature:-20℃~25℃/12 months; 25℃~35℃/9 months; Storage conditions 35℃~50℃/6 months; Humidity:5%~95%RH Cooling method Air-Cooling Installation Floor stand...
  • Page 41: Battery System Designation

    7.4 Battery System Designation Battery Mode Recommended charge instructions designation 1.Constant current 100A charging to 540V; IFpP/51/161/119/[(1 2.Constant current 50A charging to 550V; AXE 50.0H- P16S)10S]M/- 3.Constant current 25A charging to 550V; 1HT-S1 10+50/90 4.Constant current 10A charging to 550V; 5.Constant current 5A charging to 550V;...
  • Page 42 Appendix I LED indication Control Mechanism LED light definition High voltage Battery Battery cabinet light display box light display System Items RUNNING WARNING FAULT LED Status START LED Status LED Status LED Status Status StandBy Charge Discharge Update (T=1S) (T=1S) (T=0.4S) Fault Date (T=1S)
  • Page 43 LED light definition High voltage Battery Battery cabinet light display box light display System Items RUNNING WARNING FAULT LED Status START LED Status LED Status LED Status Status High temperature environment (T=2S) warning Cell Large voltage (T=2S) Warning difference warning Pack Large temperature (T=2S)
  • Page 44 LED light definition High voltage Battery Battery cabinet light display box light display System Items RUNNING WARNING FAULT LED Status START LED Status LED Status LED Status Status Relay high temperature (T=2S) protection High temperature environment (T=2S) protection Cell Large voltage (T=2S) difference...
  • Page 45 2. The 4th represents the software version code , refer to GROWATT controlled "Software code history table". 3. The 5th to 8th digits represent the supplier code. GROWATT is 0000, the supplier D is 0001, and other outsourced suppliers are 0002/0003... , and so on, please refer to the corresponding relationship table of the supplier code.
