Summary of Contents for 7RYMS AU01

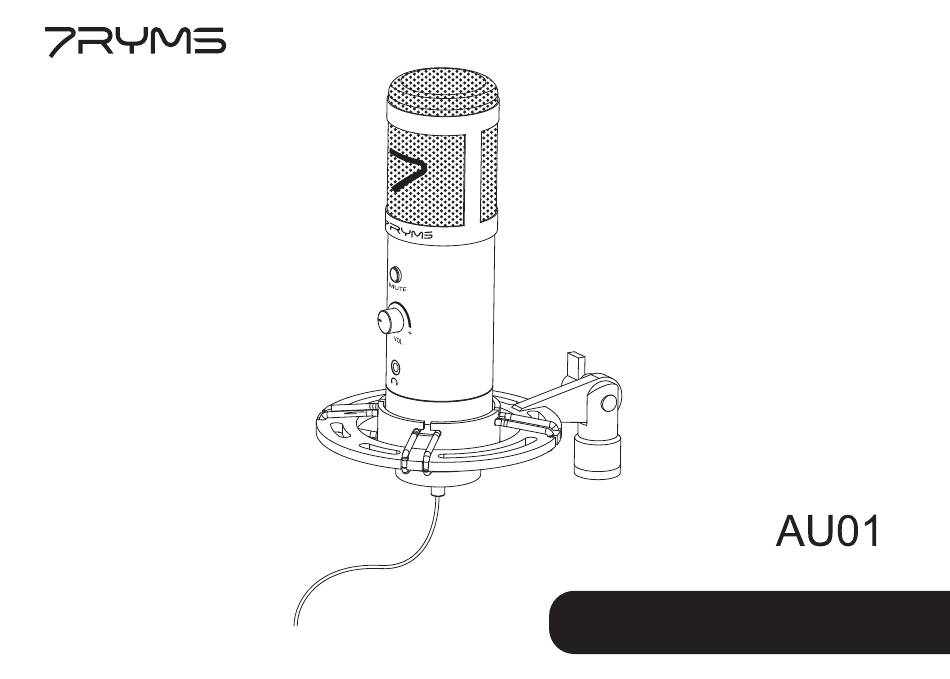

- Page 1 Mini Cardioid Condenser USB Microphone User manual...
- Page 3 Foreword Thanks for purchasing 7RYMS AU01 Main Features · 25mm USB Condenser Mic for Professional Studio Quality · Cardioid Pattern, Accurately Pickup · USB-C Digital Output, 48kHz/24bit Audio Recording, Intelligent Denoise · Zero-latency Monitoring and Muting Functions · Preamp Amplifier and Gain Control ·...
- Page 4 Tips When used in computer, please follow the steps below: ① Connect AU01 to the computer ② Click sound setting and set the "7Ryms_AU01" as the input and output device Sound Output Input Choose your output device Choose your input device...
- Page 5 Packing List 1. Microphone 2. Shock-mount 3. Windscreen 4. 2 in 1 Audio Cable 5. User Manual 6. Warranty Card Errun Electronic Technology www.7ryms-audio.com Product Model: Vendor's information Customer information Vendor: Customer Name: Vendor Tel: Address: Date of Purchase: Email Address:...
- Page 6 Components and Instruction Microphone: Capsule Mute Button ( Normal state: The blue light is on; Mute state: The red light is on ) Gain and Volume Control Knob (Adjust the microphone output gain and headphone monitoring volume) 3.5mm TRS/TRRS Headphone Monitor Port USB-C Audio Output Port...
- Page 7 Shock-mount: Locking Stud Locking Screw 3/8 Threaded Hole...
- Page 8 Usage Connect the microphone with smartphone/computer through 2 in 1 Audio Cable and related audio adapter cable/adapter; Choose whether to monitor according to your needs Adapter Adapter Cable Please purchase the corresponding USB-Lightning adapter cable/adapter by yourself When using with Lightning devices...
- Page 9 Specifications Polar Pattern Cardioid Pattern Sensitivity -37dB±2dB Frequency Response 20Hz ~ 20kHz Maximum SPL 120dB 70dB Equivalent Noise 24dBA Dynamic Range 96dB Sampling Rate 48kHz Bit Depth 24-bit Output Port USB-C Monitoring Port 3.5mm TRS/TRRS Weight 233g Dimension 48 x 52 x 157mm Working Temperature 0℃~+50℃...
- Page 11 迷你心型USB电容麦克风 用户使用说明书...
- Page 13 前言 感谢您购买七语AU01 产品主要功能 · 25mm电容咪头，专业棚级音质 · 内置声卡，支持所有系统的电脑和手机 · 心型指向，精准拾音 · 高密度防风棉，有效滤除风噪 · USB-C数字输出，48kHz/24bit录音，智能降噪 · 专业减震支架，减少震动噪音 · 零延迟实时监听及静音功能 · 全金属制造，稳固耐用 · 前置放大，无级增益可调 注意事项 搭配Lightning接口设备时，请自行购买对应的USB-Lightning转接线/转接头 为获得更好的录音效果，请将麦克风的正面对准音源 请勿将本设备放置在热源或干扰源附近使用，如散热器、烤箱、冰箱、空调、手机和WIFI热点旁边 本产品属于高精密仪器类产品，请避免使用时掉落、碰撞或重击 不要在雨中或潮湿的环境中使用该设备，否则会有短路的危险 请在干燥环境中对该产品进行保存...
- Page 14 提示 当用于电脑时，请按以下步骤进行操作： ①将AU01连接电脑 ②打开声音设置界面，选择“7Ryms_AU01”为输出和输入设备 声音 输出 输入 选择输出设备 选择输入设备 7Ryms_AU01 7Ryms_AU01...
- Page 15 包装清单 1. 麦克风 2. 减震架 3. 防风棉 4. 二合一音频连接线 5. 说明书 6. 保修卡 Errun Electronic Technology www.7ryms-audio.com Product Model: Vendor's information Customer information Vendor: Customer Name: Vendor Tel: Address: Date of Purchase: Email Address: Tel: Product SN: Vendor's Signature: WARRANTY CARD ①...
- Page 16 部件介绍及说明 麦克风： 咪头 静音按钮（正常亮蓝灯，静音亮红灯） 增益音量调节旋钮（调节麦克风输出增益和监听音量） 3.5mm TRS/TRRS耳机监听插孔 USB-C音频输出接口...
- Page 17 减震架： 锁紧螺杆 锁紧螺盘 3/8螺纹孔...
- Page 18 使用方法 通过二合一音频连接线和相关音频转接线/转接头连接麦克风和手机/电脑；根据个人需求选择是否监听 转接头 转接线 搭配Lightning接口设备时，请自行购买对应的USB-Lightning转接线/转接头...
- Page 19 技术规格 指向性 心型指向 咪头灵敏度 -37dB±2dB 20Hz ~ 20kHz 麦克风频率响应 120dB 最大声压级 70dB 信噪比 24dBA 等效噪声 96dB 动态范围 48kHz 采样率 24-bit 位深 USB-C 输出接口 监听接口 3.5mm TRS/TRRS 233g 产品重量 48 x 52 x 157mm 产品尺寸 0℃~+50℃ 工作温度 -20℃~+60℃ 储存温度...
