Summary of Contents for 7RYMS MinBo M2

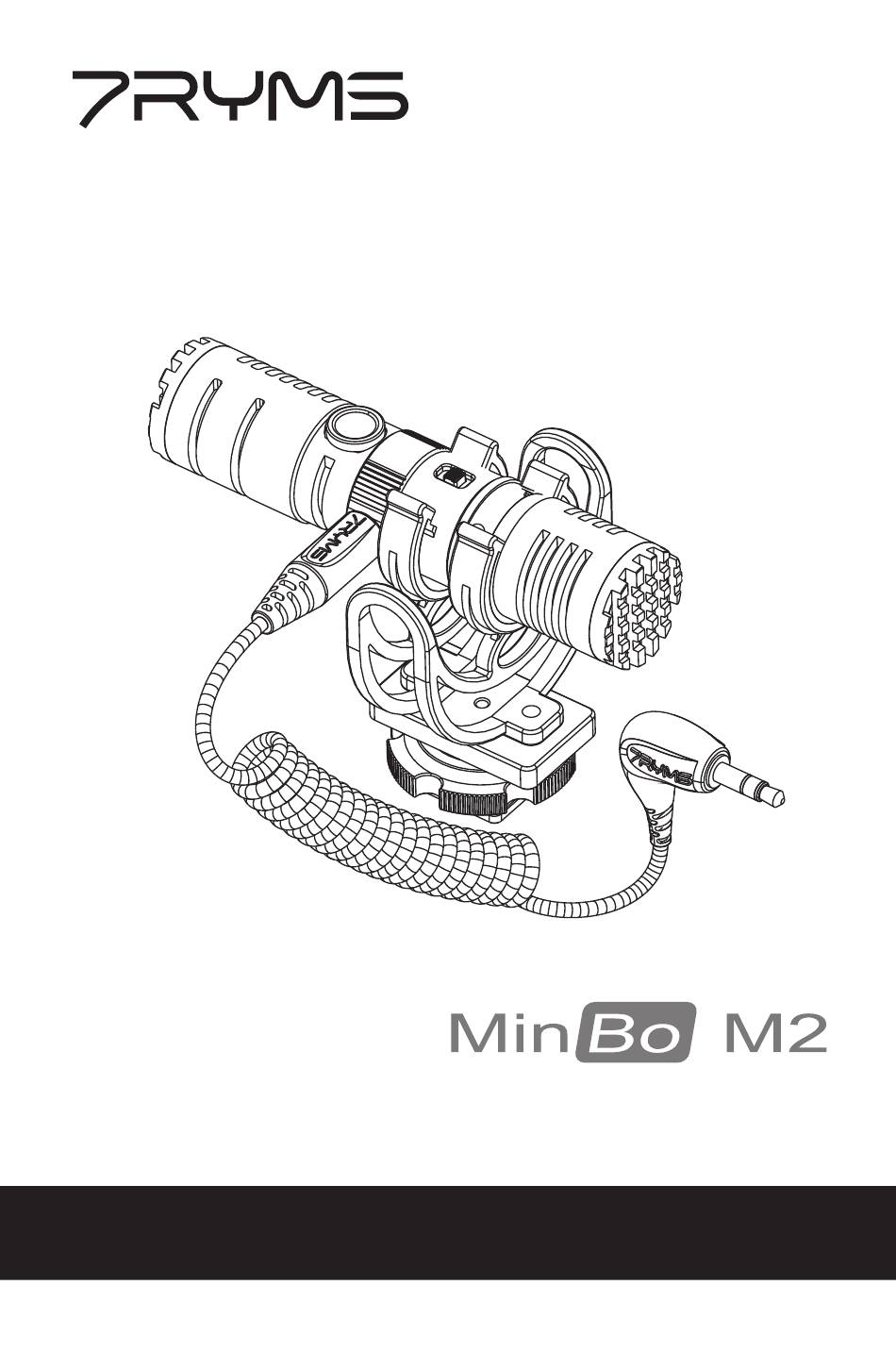

  • Page 1 Two-way Bi-directional Mini Shotgun Microphone (For 3.5mm TRS Interface Camera) User Manual...
  • Page 3 Foreword Thanks for purchasing 7RYMS Two-way Bi-directional Mini Shotgun Microphone (For 3.5mm TRS Interface Camera) To ensure bring you a good using experience, please read this manual book carefully before using and correctly install and operate Main Features . Front and Rear Two-way Mic Directional Design .
  • Page 4 2. Wind Mu x2 3. 3.5mm TRS - TRS Audio Cable 4. Carry Case 5. User Manual 6. Warranty Card ① ② ③ Errun Electronic Technology www.7ryms-audio.com Product Model: Vendor's information Customer information Vendor: Customer Name: Vendor Tel: Address: Date of Purchase:...
  • Page 5 Components Introduction Microphone 1. Front Mic Capsule 2. Pickup Mode Switch Button 3. 3.5mm TRS Audio Output Port 4. Rear Mic Capsule ① ② ③ ④...
  • Page 6 Installation and Operation 1.Install the microphone on the shock mount, and then connect the shock mount to hot shoe of camera through cold shoe of shock mount...
  • Page 7 2.Connect the microphone to the camera through the 3.5mm TRS-TRS audio cable...
  • Page 8 Function and Usage 1. 3.5mm TRS - TRS Audio Cable It can be inserted for audio output 2. Pickup Mode Switch Button Super Cardioid Pattern In the super cardioid pattern, When the front mic capsule is recording, the rear mic capsule is closed; Bi-directional Pattern In the Bi-directional pattern, the front and the rear mic capsule record simultaneously...
  • Page 9 Specification Polar Pattern Super Cardioid/Bi-directional Frequency Response 60Hz~20kHz >75dB Maximum SPL >105dB Receiving Sensitivity -33dB±2dB Working voltage 1V~10V DC Output Interface 3.5mm Dimension Φ22mm x 99mm Net Weight Operating Temperature 0~50℃...
  • Page 11 双向迷你枪式麦克风 ( 3.5mm TRS接口相机专用 ) 用户使用手册...
  • Page 13 前 言 感谢您购买七语MinBo M2双向迷你枪式麦克风。 为保证产品的顺畅使用,请在使用前严格阅读本说明 书,并正确组装及操作。 产品主要功能 .前后咪头设计 .专业级电容麦克风 .无电驱动,方便易用 .独特减震系统,超强减震 .全金属机身,超强屏蔽 注意事项 本产品属于高精密仪器类产品,请避免使用时掉落、 碰撞或重击 请勿将本设备放置在热源或干扰源附近使用,如散热 器、烤箱、WIFI热点、对讲机或其它无线设备旁边 如拾音距离较近或于户外使用时,请套上麦克风防风 毛,防止声音爆裂或降低风噪 不要在雨中或潮湿的环境中使用该设备,否则会有短 路的危险 请在干燥环境中对该产品进行保存...
  • Page 14 配件: 1. 减震架 2. 防风毛 X2 3. 3.5mm TRS-TRS音频线 4. 便携包 5. 说明书 6. 保修卡 ① ② ③ Errun Electronic Technology www.7ryms-audio.com Product Model: Vendor's information Customer information Vendor: Customer Name: Vendor Tel: Address: Date of Purchase: Email Address: Tel: 双向迷你枪式麦克风...
  • Page 15 部件介绍及说明 麦克风主体 1. 前拾音头 2. 拾音模式切换开关 3. 3.5mm TRS音频输出插口 4. 后拾音头 ① ① ② ② ③ ③ ④ ④...
  • Page 16 安装方法 1.将麦克风主体安装至减震架,再将减震架通过冷靴座安 装至相机热靴...
  • Page 17 2.通过3.5mm TRS-TRS音频线连接麦克风与相机即可完成 安装...
  • Page 18 功能与使用方法 1. 3.5mm TRS音频输出插口 可插入3.5mm TRS音频线进行音频输出 2. 拾音模式切换开关 超心型拾音模式 在超心型模式下,前拾音头录音,后拾音头关闭; 8字型拾音模式 在8字型模式下,前拾音头与后拾音头同时录音 (8字型拾音模式) (超心型拾音模式) (后拾音头关闭)
  • Page 19 技术参数 指向性 超心型/8字型 频响 60Hz~20kHz 信噪比 >75dB 最大声压级 >105dB 灵敏度 -33dB±2dB 工作电压 1V~10V DC 输出接口 3.5mm 尺寸 Φ22mm x 99mm 净重 工作温度 0~50℃...
  • Page 20 Email: support@7ryms.com The 7RYMS LOGO is trademark which is registered and owned by Errun Electronic Technology Co., Ltd...
