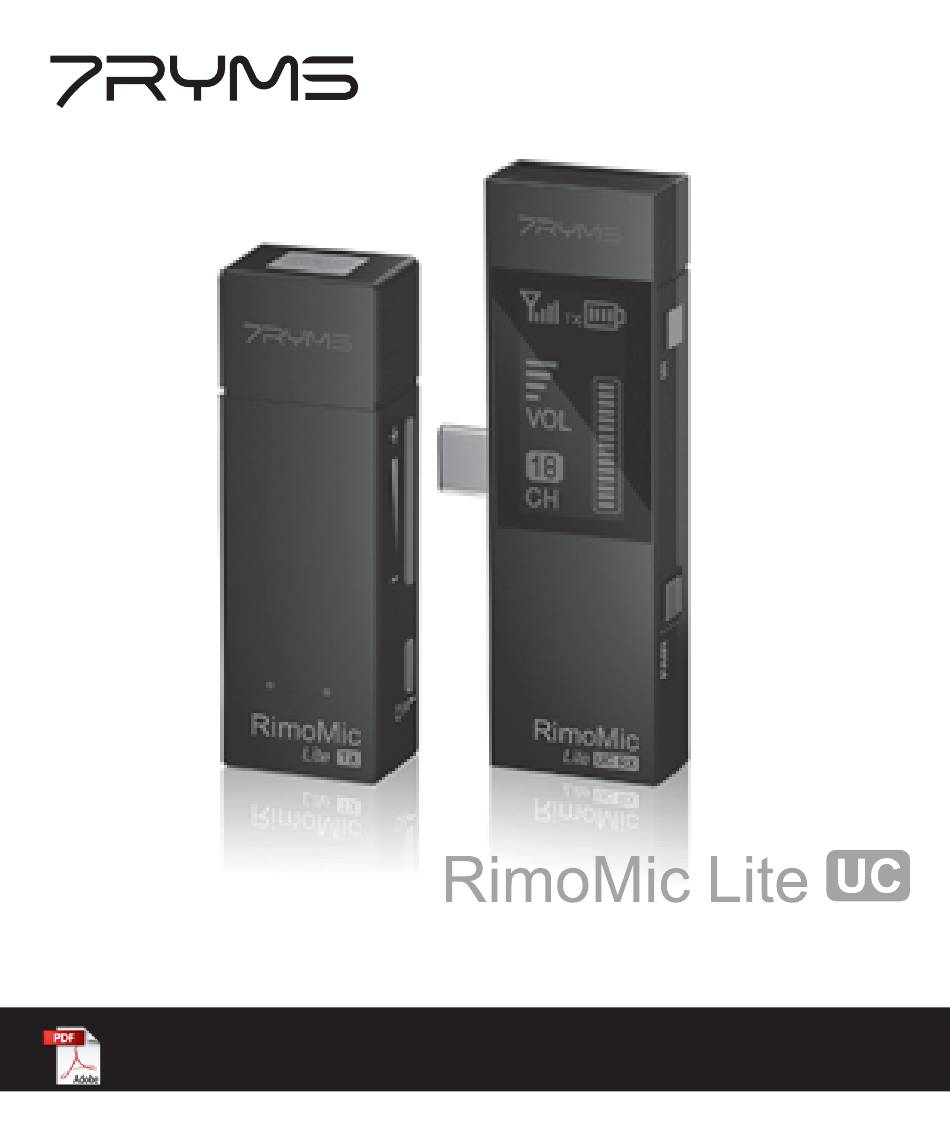

- Page 1 Streaming and Video Mini Wireless Microphone (For USB-C & USB-A Interface) User manual...
-
Page 2: Main Features
Foreword Thanks for purchasing 7RYMS RimoMic Lite UC Mini Wireless Microphone (For USB-C & USB-A Interface ) To ensure bring you a good using experience, please read this manual book carefully before using and correctly install and operate. Main Features . -
Page 3: Main Parts
Accessories: 1. USB C-USB A Adapter 2. Wind Muff 3. Charging Cable 4. Carry Case 5. User Manual 6. Warranty Card Errun Electronic Technology www.7ryms-audio.com Product Model: Vendor's information Customer information Vendor: Customer Name: Vendor Tel: Address: Date of Purchase:... -
Page 4: Components Introduction

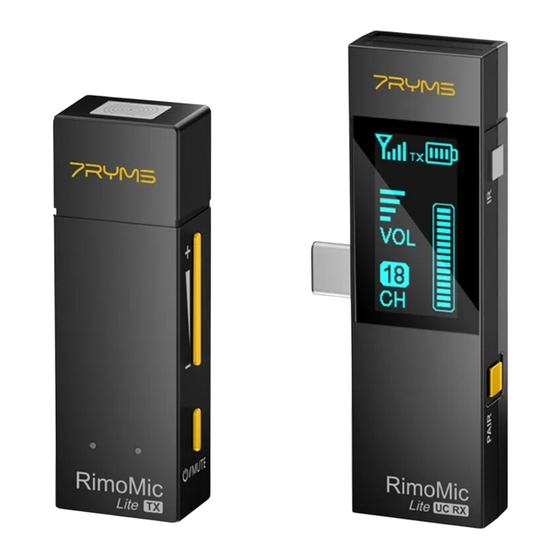

Components Introduction Transmitter(TX): 1. Internal Mic 2. Power/Low Cut Filter Indicator Light 3. Audio Status Indicator Light 4. Volume+ 5. Volume 6. Power/Low Cut Filter Button 7. Belt Clip 8. IR Sensor 9. USB-C Charging Port ① ⑦ ④ ② ⑤... - Page 5 Receiver (RX): 1. IPS Display Screen 2. USB-C Plug 3. IR Sensor 4. Pairing Button 5. 3.5mmTRS/TRRS Monitor Interface ① ② ③ ④ ⑤...
- Page 6 Installation and Operation Transmitter(TX): Install the transmitter on the collar through the belt clip so that the internal microphone points in the direction of the sound source Belt Clip Internal Mic For better hiding during use, it is recommended that the belt clip be fixed and used outwards...
- Page 7 Receiver (RX): 1. Work with Smartphone: Install the receiver to the mobile phone with USB-C interface through the USB-C plug.
- Page 8 2. Work with Computer: 2.1 For computer with USB-C port, insert the receiver into the computer USB-C port; 2.2 For computer with USB-A port, insert the receiver into the USB C-USB A adapter; Then insert the USB C-USB A adapter into the computer USB-A port USB C-USB A Adapter...
- Page 9 3. Pairing: After installing the receiver on the smartphone or computer, keep the receiver and transmitter's IR sensor closely aligned for paring (TX) (RX)
-
Page 10: Transmitter (Tx)
Function and Usage Transmitter (TX): 1. Internal Mic Point the internal Mic at the sound source to record 2. Power/Low Cut Filter Indicator Light Blue light keeps on after turn on the Transmitter; Purple light keeps on after turn on Low Cut Filter mode; Red light flicker when pairing or low power;... - Page 11 6. USB-C Charging Port Connect the transmitter and 5V power supply through the USB A-USB C charging cable for charging 7. IR Sensor It's paired successfully only when the receiver and transmitter's IR sensor are closely aligned...
-
Page 12: Receiver (Rx)
Receiver (RX): 1. IR Sensor It's paired successfully only when the receiver and transmitter's IR sensor are closely aligned 2. Pairing Button Long press to pair 3. 3.5mm TRS/TRRS Headphone Monitor Port Insert 3.5mm TRS/TRRS headphones to monitor... - Page 13 Screen Display Instruction: Signal Strength Transmitter Battery Status Volume Audio Dynamic Bar Current Channel...
- Page 14 In the Pairing After pairing, the new channel will be displayed...
- Page 15 This device operates on a no-interference, no-protection basis. Should the user seek to obtain protection from other radio services operating in the same TV bands, a radio licence is required. For further details, consult Innovation, Science and Economic Development Canada's Client Procedures Circular CPC-2-1-28, Voluntary Licensing of Licence-Exempt Wireless Microphones in the TV Bands.
- Page 16 Email: support@7ryms.com The 7RYMS LOGO is trademark which is registered and owned by Errun Electronic Technology Co., Ltd...
- Page 17 FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 18 ISED Statement ‐ English: This device complies with Industry Canada license ‐ exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
