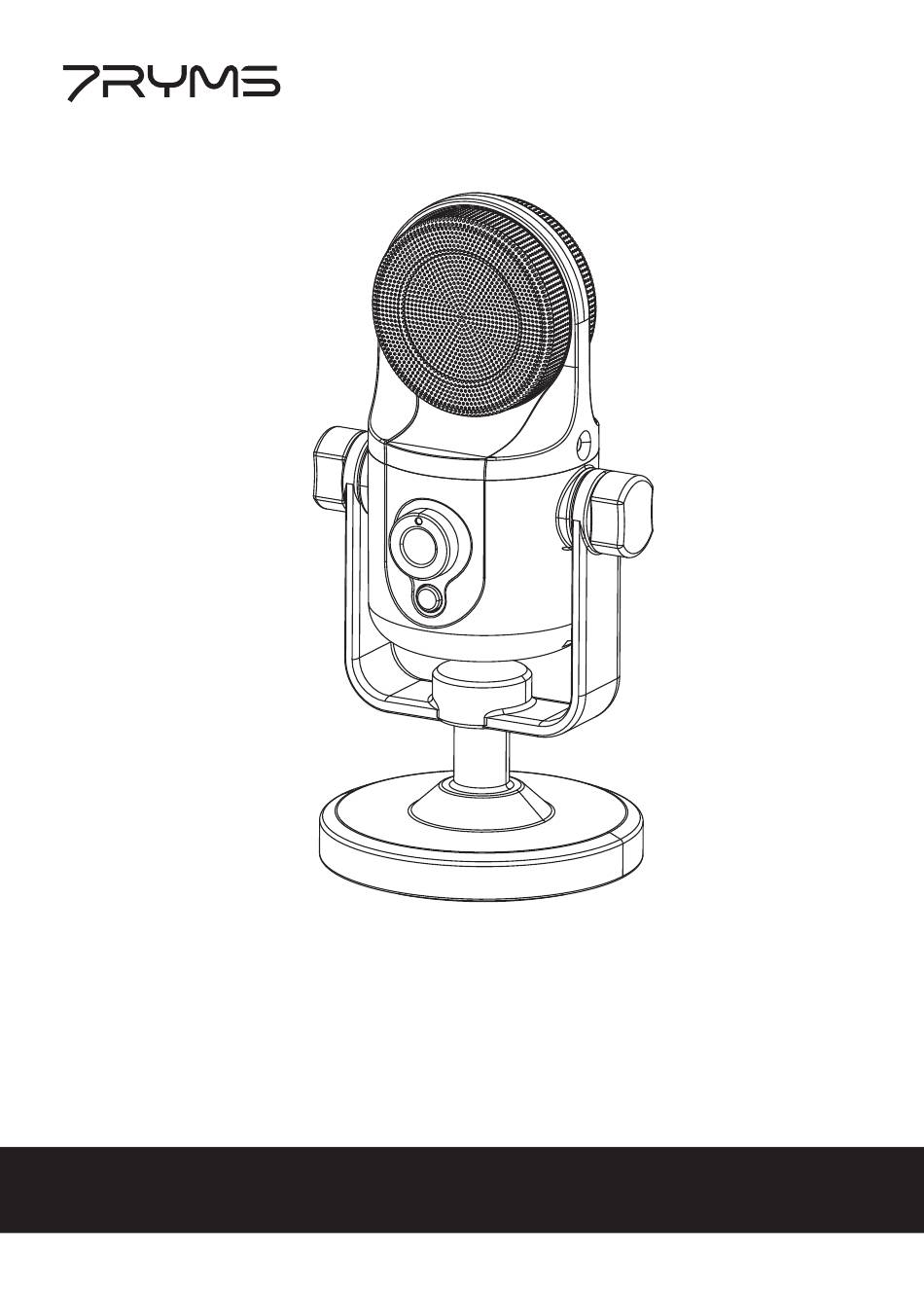

- Page 1 SR-USB MINI Mini Condenser USB Microphone User Guide...
- Page 3 Integrated 360-degree Swing Mount and Detachable Desk Stand Bottom Standard 3/8 Threaded Hole for Microphone Stand Tips SR-USB MINI is suitable for USB devices of Windows, MacOS, Android and iOS system, it is not available for smartphones or other recording devices with 3.5mm audio input port...
- Page 4 Product Model: Vendor's information Customer information Vendor: Customer Name: Vendor Tel: Address: Date of Purchase: Email Address: Tel: SR-USB MINI SR-USB MINI Product SN: Vendor's Signature: Mini Condenser USB Microphone Mini USB Microphone User Guide User Guide WARRANTY CARD ③...
- Page 5 Function introduction ③ ④ ① ② ⑤ Front Back Gain and Volume Control Knob: Adjust the microphone output ① gain and headphone monitoring volume Mute Button: The blue light indicates when the microphone works ② normally, the red light indicates when it is muted Headphone Monitor Port: Insert headphone to monitor ③...
- Page 6 Installation and Operation Use with USB-C Devices Connect the SR-USB MINI with smartphone/computer through 2 in 1 Audio Cable, and then insert the headphone into the headphone monitor port to monitor...
- Page 7 Use with USB-A Devices Connect SR-USB MINI and USB-A devices through 2 in 1 Audio Cable, and then insert the headphone into the headphone monitor port to monitor...
- Page 8 Use with Lightning Devices Connect SR-USB MINI and Lighting devices through 2 in 1 Audio Cable and related audio adapter cable/adapter; insert the headphone into the headphone monitor port to monitor Please purchase corresponding USB-Lightning adapter cable/adapter by yourself...
- Page 9 Specification Acoustic Principle Condenser Polar Pattern Cardioid Pattern Sensitivity -37dB±2dB 20Hz~20kHz Frequency Response Maximum SPL 120dB 70dB Equivalent Noise 24dBA Dynamic Range 96dB 48kHz Sampling Rate Bit Depth 24bit Output Port USB-C Monitoring Port 3.5mm TRS/TRRS Net Weight 260g 77 x 70 x 149mm Dimension Working Temperature 0℃...
- Page 11 SR-USB MINI 迷你桌面USB麦克风 用户指南...
- Page 13 前言 感谢您购买七语SR-USB MINI 产品功能 16mm电容咪头，专业棚级音质 心型指向，精准拾音 超低底噪、声音高度还原 零延迟实时监听及静音功能 内置防喷罩，有效滤除杂音 360度旋转方向可调、底座可拆卸 底部3/8标准螺纹孔可外接麦克风支架 注意事项 SR-USB MINI适配于USB接口（支持Windows,MacOS,安卓和 iOS系统）的设备，不支持3.5mm音频输入的手机或其他录音 设备 搭配Lightning接口设备时，建议使用USB-Lightning转接线/转接 头 为获得更好的录音效果，请将麦克风的正面对准音源...
- Page 14 Product Model: Vendor's information Customer information Vendor: Customer Name: Vendor Tel: Address: Date of Purchase: Email Address: Tel: SR-USB MINI SR-USB MINI Product SN: Vendor's Signature: Mini Condenser USB Microphone Mini USB Microphone User Guide User Guide WARRANTY CARD ③...
- Page 15 功能介绍 ③ ④ ① ② ⑤ 正面 背面 增益音量调节旋钮：调节麦克风输出增益和监听音量 ① 静音按钮：麦克风正常工作时显示蓝灯，静音时显示红灯 ② 耳机监听孔：插入耳机即可监听 ③ USB-C音频输出孔：通过二合一音频连接线和相关音频转接线/ ④ 转接头进行音频输出 3/8螺纹孔：可外接麦克风支架 ⑤...
- Page 16 使用方法 搭配USB-C接口设备使用 通过二合一音频连接线连接SR-USB MINI与USB-C接口设备； 再将耳机插入耳机监听孔进行监听...
- Page 17 搭配USB-A接口设备使用 通过二合一音频连接线连接SR-USB MINI与USB-A接口设备； 再将耳机插入耳机监听孔进行监听...
- Page 18 搭配Lightning接口设备使用 通过二合一音频连接线和相关音频转接线/转接头连接SR-USB MINI和Lightning接口设备；再将耳机插入耳机监听孔进行监听 请自行购买对应的USB-Lightning转接线/转接头...
- Page 19 技术规格 声学原理 电容式 指向性 心型指向 -37dB±2dB 咪头灵敏度 20Hz~20kHz 频率响应 120dB 最大声压级 70dB 信噪比 24dBA 等效噪声 96dB 动态范围 48kHz 采样率 24bit 位深 USB-C 输出接口 3.5mm TRS/TRRS 监听接口 260g 产品重量 77 x 70 x 149mm 产品尺寸 0℃ ~ 50℃ 工作温度 -20℃ ~ 60℃ 存储温度...
- Page 20 Website: 7ryms.com Facebook: 7RYMS Instagram: 7ryms_official YouTube: 7RYMS...
