Summary of Contents for 7RYMS MinBo Mini

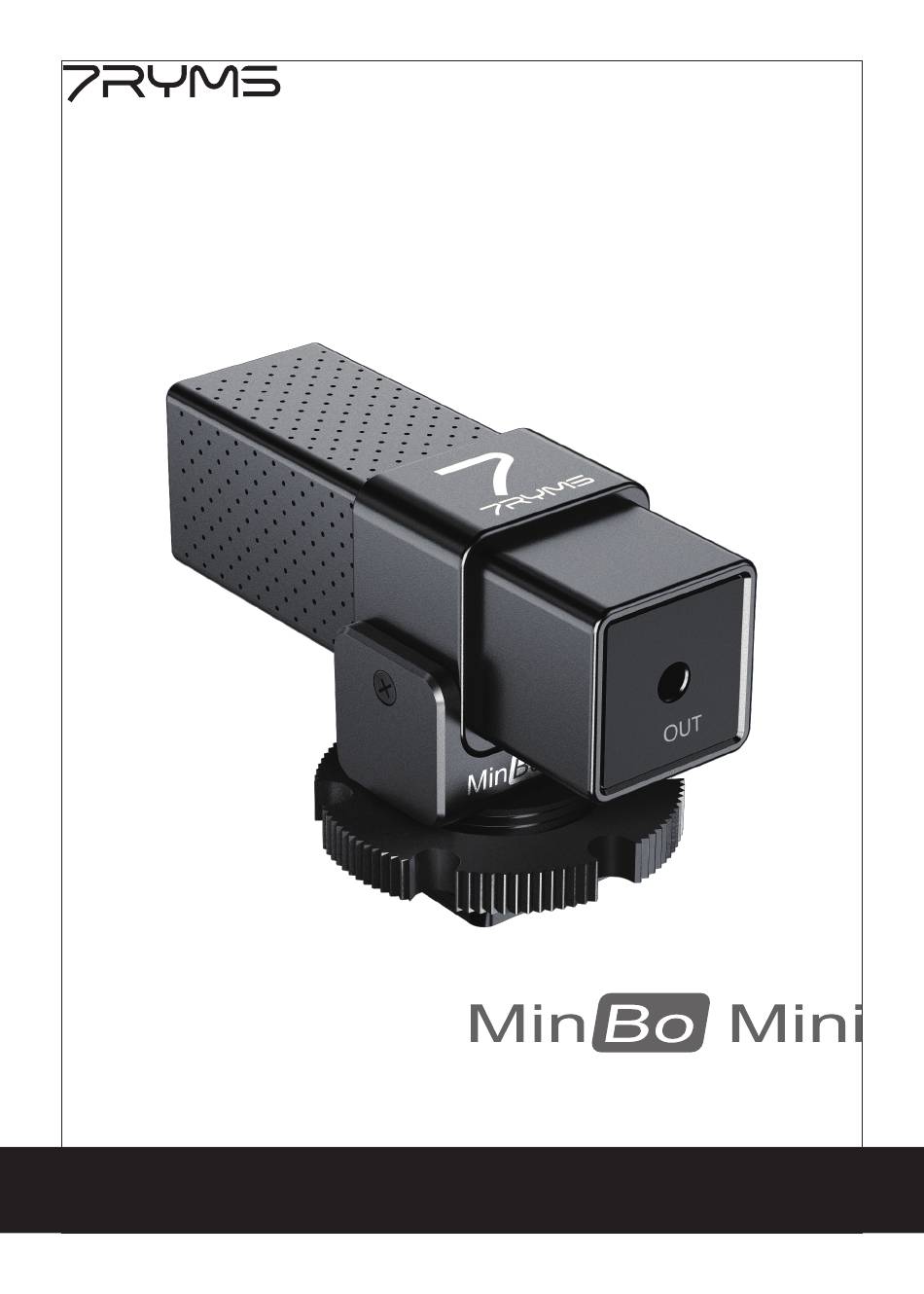

- Page 1 Compact Cardioid Condenser On-Camera Microphone User Guide...
- Page 2 Preface Thank you for purchasing MinBo Mini Features Mini and Light, Universal for Camera and Phone No Battery Required, Plug and Play Built-in Elastic Suspension for Better Shock Absorption Full Metal Made for Better Shielding Tips When using with USB devices, please equip the relevant...
-
Page 3: Item Checklist
Item Check List ① ② ③ Errun Electronic Technology www.7ryms-audio.com Product Model: Vendor's information Customer information Vendor: Customer Name: Vendor Tel: Address: Date of Purchase: Email Address: Tel: Product SN: Vendor's Signature: Compact Cardioid Condenser On-Camera Microphone WARRANTY CARD ④... - Page 4 Installation and Operation ① ② Mounting to Camera: MinBo Mini can be mounted to the camera via the built-in ① cold shoe mount Connect one end of the 3.5mm TRS-TRS audio cable ② into the MinBo Mini and the other end into the camera...
- Page 5 MinBo Mini and smartphone can be mounted to the ① smartphone holder (Please purchase the smartphone holder by yourself) ② Connect the one end 3.5mm TRS plug into the MinBo Mini and the other end 3.5mm TRRS plug into the smartphone...
-
Page 6: Specification
Specification Polar Pattern Cardioid Frequency Range 60Hz~20kHz Signal / Noise >60dB >100dB Maximum SPL Sensitivity -36dB±2dB Operation Voltage 1V~5V Output Interface 3.5mm TRS Dimension 60 x 25 x 40mm Weight 37.5g Working Temperature 0~50℃ Storage Temperature -10 ~ 60℃... - Page 7 迷你心型电容机顶麦 用户指南...
- Page 8 前言 感谢您购买七语MinBo Mini 产品功能 迷你轻便，通用于手机和相机 无电驱动，即插即用 内置弹性减震，卓越的减震效果 全金属制造，屏蔽性强 注意事项 搭配USB设备使用时，请自行配置相关音频转接线 配合Android（安卓）系统的手机使用时，录音模式下均可正 常工作，视频模式下大多数手机会出现不兼容情况（此时建议 使用第三方视频软件，如：抖音，快手等） 配合iOS系统手机使用时，在所有录音模式、视频模式以及第 三方视频软件下均可正常使用...
- Page 9 包装清单 ① ② ③ Errun Electronic Technology www.7ryms-audio.com Product Model: Vendor's information Customer information Vendor: Customer Name: Vendor Tel: Address: Date of Purchase: Email Address: Tel: Product SN: Vendor's Signature: Compact Cardioid Condenser On-Camera Microphone WARRANTY CARD ④ ⑤ ⑥...
- Page 10 使用方法 ① ② 搭配相机使用 通过冷靴座把MinBo Mini安装到相机上 ① 再通过3.5mm TRS-TRS音频连接线连接 MinBo Mini与相机 ②...
- Page 11 ① ② 搭配手机使用 ① 通过冷靴座将MinBo Mini安装到手机支架冷靴上（手机支架 请自行购买） ② 通过3.5mm TRS-TRRS音频连接线连接MinBo Mini和手机,3.5mm TRS插头连接到MinBo Mini,3.5mm TRRS插头连接到手机...
- Page 12 技术规格 指向性 心型 60Hz ~ 20kHz 频响 信噪比 >60dB 最大声压级 >100dB 灵敏度 -36dB ±2dB 1 ~ 5V 工作电压 输出接口 3.5mm TRS 40mm 尺寸 净重 37.5g 0 ~ 50℃ 工作温度 -10 ~ 60℃ 存储温度...
- Page 13 Email: support@7ryms.com The 7RYMS LOGO is trademark which is registered and owned by Errun Electronic Technology Co., Ltd...
