7RYMS iRay DW30 User Manual

2.4g dual-channel on-board recording wireless microphone
Hide thumbs

Advertisement

Quick Links

Download this manual
iRay DW30
2.4G Dual-channel On-board Recording Wireless Microphone
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the iRay DW30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for 7RYMS iRay DW30

Summary of Contents for 7RYMS iRay DW30

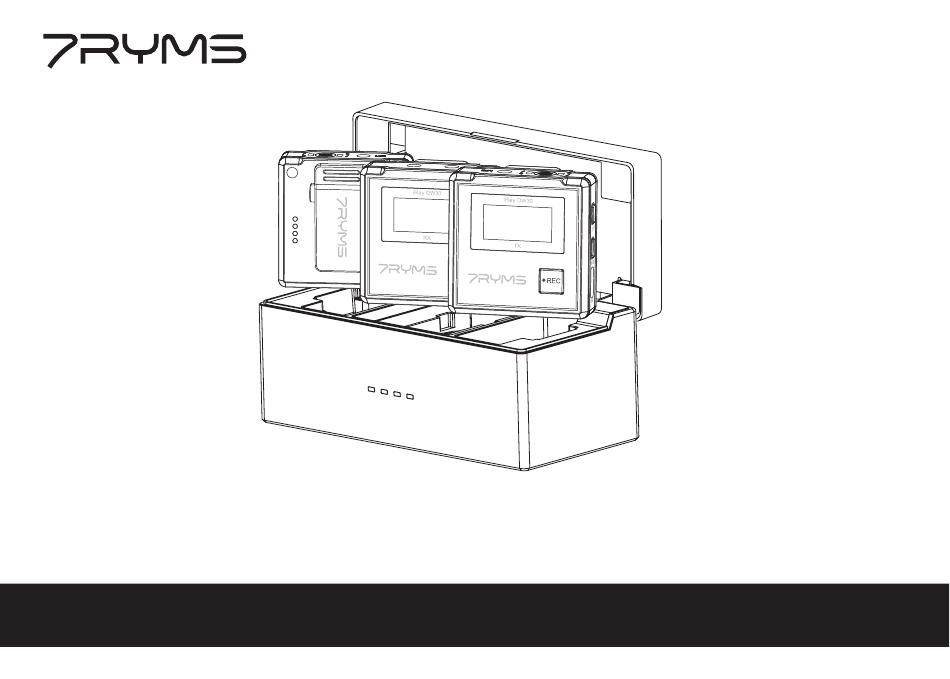

  • Page 1 DW30 2.4G Dual-channel On-board Recording Wireless Microphone User Manual...
  • Page 3 Foreword Thanks for purchasing 7RYMS iRay DW30 Main Features · 48kHz/16bit Audio Recording, One-key Intelligent Denoise · Support On-board Recording with 16G Internal Memory(About 48 Hours) · Support Recording File's High-speed Transmission and Copy · Digital&Analog Output Mode, Universal for Camera, Phone and Computer ·...
  • Page 4 Notice Due to 2.4G wireless characteristics, it is better to keep face to face when using it, and do not turn your back to the receiver, otherwise it is easy to generate breakpoints, which is a normal phenomenon Do not block the antenna position to avoid any poor signal generated Please notice that it can not realize STEREO function when in single-channel and safety mode When you need to continuously record, a new recording file will be saved every 2 hours of recording, and the total recording time is 48 hours.
  • Page 5 9. User Manual Errun Electronic Technology www.7ryms-audio.com Product Model: 10. Warranty Card Vendor's information Customer information Vendor: Customer Name: iRay DW30 Vendor Tel: Address: Date of Purchase: Email Address: Tel: 2.4G Dual-channel On-board Recording Wireless Microphone Product SN: Vendor's Signature:...
  • Page 6 Components and Instruction Transmitter (TX) 3.5mm TRS Port of External Mic Display Screen Internal Mic Locking Buckle of Wind Muff Power/Mute Button Pair/Denoise Button USB-C Charging Port REC Button Belt Clip Charging Pad...
  • Page 7 1. 3.5mm TRS Port of External Mic Insert the 3.5mm TRS Mic, and you can use the external lavalier microphone for recording. At this time, the internal microphone of the device is turned off automatically 2. Power/Mute Button Long press for On/Off; Short press for muting switch Long press the power button for 10 seconds to reset it when the transmitter is in crashes or unable to turn on 3.
  • Page 8 Receiver (RX) 3.5mm TRS/TRRS Monitoring Port Display Screen 3.5mm TRS Audio Output Port Pair/A Channel Output Gain Control Button Pair/B Channel Output Gain Control Button USB-C Charging/Audio Output Port Power/Mono/Stereo/Safety Switch Button Belt Clip Charging Pad...
  • Page 9 1. 3.5mm TRS/TRRS Monitoring Port Plug in 3.5mm TRS/TRRS headphones to monitor; When in Stereo mode, A is the left channel and B is the right channel 2. 3.5mm TRS Audio Output Port Plug in 3.5mm TRS-TRS/TRS-TRRS audio output cable to connect the receiver and the related device 3.
  • Page 10 Charging Case Charging Pad Reset Hole Power Indicator Light USB-C Charging Port 1. Power Indicator Light There are four power indicator lights, each of which represents 25% of the power 2. USB-C Charging Port Connect the charging case with the power supply via a USB-C charging cable 3.
  • Page 11 Screen Display Transmitter (TX) Unpaired Pairing Mute Paired Microphone Normal Working Signal Strength Transmitter’s Battery Level 00:26:07 Flash: Recording Recorded Time A/B Channel is Connected A/B Channel is not Connected A/B Channel Audio Dynamic Bar...
  • Page 12 Receiver (RX) Mono Mode Stereo Mode Safety Mode Receiver’s Battery Level A Channel is Connected B Channel is not Connected A/B Channel Audio Dynamic Bar Output Gain Mono Mode: Output a mixed audio track of A channel and B channel. Stereo Mode: Output two independent audio tracks of A channel and B channel.
  • Page 13 Installation and Usage Pairing Method (All have been paired by default. If you need to re-pair, please follow the instruction) Firstly, turn on the receiver and transmitter; secondly, long press the A/B pairing button of the receiver synchronously to make it enter the pairing state; and press the pair buttons of the transmitters for 3 seconds to make them enter the pairing state.
  • Page 14 Installation Method Transmitter(TX) 1. Choose internal/external mic according to personal needs External Mic Internal Mic 1. For better concealment during use, it is recommended that the belt clip fixed on the outside for use 2. The internal microphone will be automatically turned off when the external microphone is working...
  • Page 15 2. When using the internal mic, install the wind muff according to personal needs; Insert the wind muff into the locking buckle, and then tighten it clockwise...
  • Page 16 Otherwise, the recording files will get loss easily 4. Copy recording file according to your need iRay DW30 disk appears after iRay DW30 is connected with the computer, and then you can copy the recording file Devices with Removable Storage(1) iRay DW30 Please keep the TX turned on when copying recording files;...
  • Page 17 Receiver(RX) Analog Output Connect the camera and receiver via the 3.5mm TRS-TRS audio cable; connect the phone/computer and receiver via the 3.5mm TRS-TRRS audio cable; choose whether to monitor according to your needs.
  • Page 18 Digital Output Connect the mic and the phone/computer via the 3-in-1 audio cable and related OTG audio cables/adapters. Choose whether to monitor according to your needs.
  • Page 19 Specifications Transmitter (TX) Wireless Type 2.4GHz Antenna Ceramic Antenna Transmitting Power +10dBm -32dB±2dB Sensitivity Polar Pattern Omnidirectional Frequency Response 80Hz ~ 20kHz 70dB SPL(A-weighted,as per IEC651) Equivalent Noise 24dB SPL(A-weighted,as per IEC651) 110dB SPL(@ 1% THD) Dynamic Range 86dB SPL(A-weighted,as per IEC651) <20ms Latency Input Port...
  • Page 20 Receiver (RX) Wireless Type 2.4GHz Antenna Ceramic Antenna Transmitting Power +10dBm 70dB SPL(A-weighted,as per IEC651) Equivalent Noise 24dB SPL(A-weighted,as per IEC651) Dynamic Range 86dB SPL(A-weighted,as per IEC651) Latency <20ms Output Gain Range -6dB ~ +6dB Analog Output 3.5mm TRS Digital Output USB-C / 48kHz 16bits 3.5mm TRS/TRRS Monitoring Port...
  • Page 21 Charging Case Charging Time 2 Times Charging Port USB-C Battery Li-polymer 3000mAh 3.7V Net Weight 235g Dimension 124 x 60 x 60mm Working Temperature 0℃ ~ 50℃ Storage Temperature -20℃ ~ +60℃...
  • Page 23 DW30 2.4G双通道板载录音无线麦克风 使用说明书...
  • Page 25 前 言 感谢您购买七语iRay DW30 产品主要功能 ·48kHz/16bit录音，一键智能降噪 ·支持前置放大，6级增益可调 ·支持16G内存板载录音及高速传输拷贝（约48小时） ·支持实时监听，一键静音等功能 ·数字&模拟双输出模式，通用于相机、手机、电脑 ·内置和外置MIC两种输入方式 ·单声道/立体声/安全音轨模式，多音频模式输出选择 ·低音频延迟＜20ms，100m传输距离（空旷环境） ·多功能磁吸充电盒，充电收纳一体化设计 ·多功能磁吸背夹设计，便携易安装 ·LCD显示屏，可视化电量及音频动态监控...
  • Page 26 注意事项 由于2.4G无线特性，使用时尽量保持面对面，避免背对的情况，否则容易产生断点，属正常现象 使用时避免任何物体遮挡天线位置，以免信号不良 单通道及安全音轨模式下，立体声(STEREO)功能无法实现 当持续录音时，每录满2小时会新存为一个录音文件，总录音时长为48小时，当16G内存录满时，新录音 文件会覆盖旧录音文件 录音功能和拷贝功能不可同时使用 本产品属于高精密仪器类产品，请避免使用时掉落、碰撞或重击 请勿将本设备放置在热源或干扰源附近使用，如散热器、烤箱或其它无线设备旁边 如拾音距离较近或于户外使用时，请套上麦克风防风毛，防止声音爆裂或降低风噪 不要在雨中或潮湿的环境中使用该设备，否则会有短路的危险 请在干燥环境中对该产品进行保存 天线位置 天线位置 （发射器） （接收器）...
  • Page 27 9. 说明书 10. 保修卡 Errun Electronic Technology www.7ryms-audio.com Product Model: Vendor's information Customer information Vendor: Customer Name: iRay DW30 Vendor Tel: Address: Date of Purchase: Email Address: Tel: 2.4G Dual-channel On-board Recording Wireless Microphone Product SN: Vendor's Signature: User Manual WARRANTY CARD ⑦...
  • Page 28 部件介绍及说明 发射器 (TX) 3.5mm TRS外置麦克风接口 显示屏 内置麦克风 防风毛卡扣 电源/静音按键 配对/降噪按键 USB-C充电接口 录音按键 背夹 充电触点...
  • Page 29 1. 3.5mm TRS外置麦克风接口 插入3.5mm TRS麦克风，即可使用外置领夹麦克风录音，此时本机的内置麦克风自动关闭 2. 电源/静音按键 长按开机/关机，短按切换静音 如出现死机/无法开机等异常现象，长按电源键10秒即可重置复位 3. 录音按键 在屏幕亮显的情况下长按进行录音或者停止录音 4. 配对/降噪按键 长按进入配对状态；单击开启/关闭降噪 5. USB-C充电接口 通过三合一充电线连接发射器与电源进行充电...
  • Page 30 接收器 （RX） 3.5mm TRS/TRRS耳机监听接口 显示屏 3.5mm TRS音频输出接口 配对/A通道输出增益调节按键 配对/B通道输出增益调节按键 USB-C充电/音频输出接口 电源/单声道/立体声/安全音轨切换按键 背夹 充电触点...
  • Page 31 1. 3.5mm TRS/TRRS耳机监听接口 插入3.5mm TRS/TRRS耳机即可监听；立体声模式下，A为左声道，B为右声道 2. 3.5mm TRS音频输出接口 通过3.5mm TRS-TRS/TRS-TRRS音频输出线连接相应设备 3. 配对&A/B通道输出增益调节按键: 同时长按A/B配对按键进入配对状态；短按可循环调节A/B通道输出增益 4. USB-C充电/音频输出接口 通过三合一充电/音频输出线连接接收器和相应的设备进行充电/数字输出 5. 电源/单声道/立体声/安全音轨切换按键 长按开机/关机；短按进行单声道、立体声与安全音轨模式切换；单通道及安全音轨模式下，立体声 (STEREO)功能 无法实现 如出现死机/无法开机等异常现象，长按电源键10秒即可重置复位...
  • Page 32 充电盒 充电触点 复位孔 USB-C充电接口 电量指示灯 1.电量指示灯 共有四格电量，每格代表25%电量 2. USB-C充电接口 通过USB-C充电线连接充电盒与电源进行充电 3.复位孔 如出现无法充电等异常现象，使用复位针插入复位孔即可重置 充电盒打开时，接收器亮屏显示发射器和接收器的电量...
  • Page 33 屏幕显示 发射器（TX） 未配对 配对中 静音 已配对 麦克风正常工作 信号强度 发射器电池电量 00:26:07 闪烁：正在录音 已录音时长 A/B通道已连接 A/B通道未连接 A/B通道音频动态条...
  • Page 34 接收器（RX） Mono: 单声道 Stereo: 立体声 Safety: 安全音轨 接收器电池电量 A通道已连接 B通道未连接 A/B通道音频动态条 输出增益 Mono: 单声道，输出AB两路通道合并的音轨 Stereo: 立体声，输出A和B两路独立音轨 Safety: 安全音轨，输出AB两路单声道音频，一路为正常音频，一路为正常音频降低-6dB后的安全音频...
  • Page 35 安装与使用方法 配对方法 （出厂已默认配对，如遇特殊情况需重新配对可参考以下配对方法） 将接收器和发射器开机后，同时长按接收器A/B配对按键进入配对状态，再长按发射器的配对键3秒进入配对 状态。先配对成功的发射器为A通道（左声道），后配对成功的发射器为B通道（右声道） 先配对 配对按键 左声道 右声道 后配对 接收器（RX） 发射器（TX）...
  • Page 36 安装方法 发射器（TX） 1.根据个人需求选择使用内置/外置麦克风 外置麦克风 内置麦克风 1.当使用内置麦克风时，为了更好的隐蔽性，建议将背夹朝外固定使用 2.当使用外置麦克风时，内置麦克风会自动关闭...
  • Page 37 2.当使用内置麦克风时，根据个人需求安装防风毛；将防风毛插入防风毛卡扣，再顺时针拧紧固定...
  • Page 38 3.根据个人需求选择是否开启录音功能 在屏幕亮显的情况下长按REC进行录音或停止录音 00:00:00 1.持续录音时，每录满2小时会新存为一个录音文件，总录音时长为 48小时，当16G内存录满时，新录音文件会覆盖旧录音文件 2.请先将内录功能关闭后再将发射器放入充电盒，否则容易导致 录音文件丢失 4.根据个人需求选择是否拷贝录音文件 通过TX的USB-C接口连接电脑后出现一个盘符iRay DW30，录制的音频文件可从盘符中拷出 iRay DW30 拷贝录音文件时，TX需保持开机状态，否则将无法拷贝； 8GB可用， 共8GB 连接TX的USB-C接口后，单击录音按键进入U盘...
  • Page 39 接收器（RX） 模拟输出 搭配相机使用时，通过3.5mm TRS-TRS音频连接线连接即可；搭配手机或电脑使用时，通过3.5mm TRS-TRRS音频连接线连接即可，可根据个人需求选择是否进行监听。...
  • Page 40 数字输出 通过USB C-USB C/USB C-USB A音频连接线和相关OTG音频转接线/转接头连接接收器和手机/电脑，可根 据个人需求选择是否进行监听。...
  • Page 41 技术规格 发射器（TX） 2.4GHz 无线类型 天线 陶瓷天线 +10dBm 发射功率 -32dB±2dB 麦克风灵敏度 麦克风指向性 全指向 80Hz ~ 20kHz 麦克风频率响应 70dB SPL(A-weighted,as per IEC651) 系统信噪比 24dB SPL(A-weighted,as per IEC651) 系统等效噪声 110dB SPL(@ 1% THD) 最大声压级 86dB SPL(A-weighted,as per IEC651) 动态范围 <20ms 声音延迟 3.5mm TRS 外置输入接口...
  • Page 42 接收器（RX） 2.4GHz 无线类型 天线 陶瓷天线 +10dBm 发射功率 70dB SPL(A-weighted,as per IEC651) 系统信噪比 24dB SPL(A-weighted,as per IEC651) 系统等效噪声 86dB SPL(A-weighted,as per IEC651) 动态范围 <20ms 声音延迟 -6dB ~ +6dB 输出调节范围 3.5mm TRS 模拟输出 USB-C / 48kHz 16bits 数字输出 3.5mm TRS/TRRS 监听接口 锂聚合物 230mAh 3.7V 电池...
  • Page 43 充电盒 2次 充电次数 USB-C 充电接口 锂聚合物 3000mAh 3.7V 电池 235g 净重 124 x 60 x 60mm 尺寸 0℃ ~ 50℃ 工作温度 -20℃ ~ +60℃ 存储温度...
