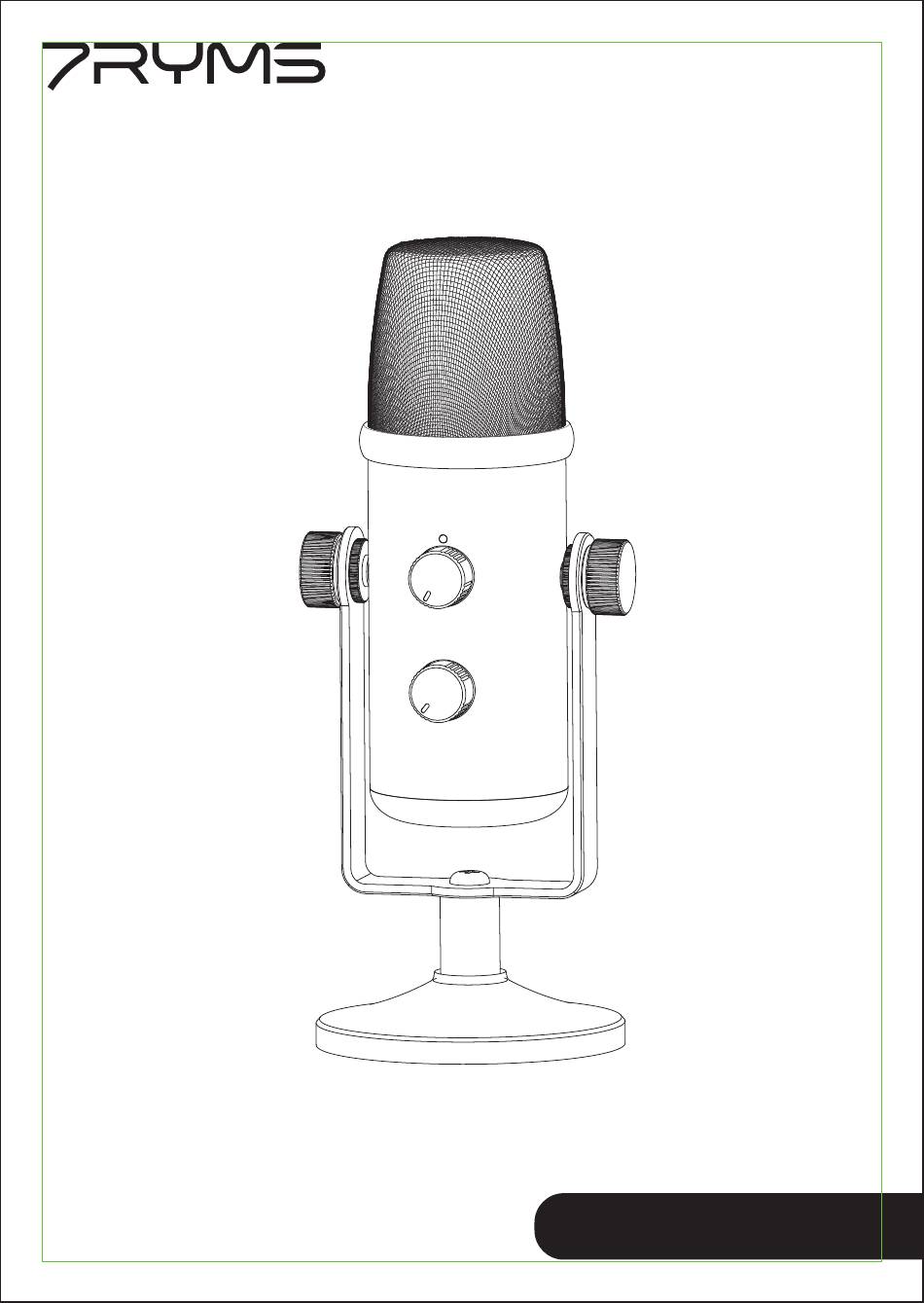

- Page 1 AT20 Cardioid Condenser USB Microphone User manual...
- Page 3 . Full Metal Material, Excellent Shielding Performance Notice Please aim the front ‘7RYMS’ logo of the microphone at the sound source for better recording Turn the gain control knob to appropriate position for the best recording, adjust to the maximum gain may...
- Page 4 Components and Instruction ① ② ⑤ ③ ④ ⑥ 1. Mic Capsule 2. Working Status/Muting Indicator The indicator shows blue when working normally; it shows red when muting 3. Gain Adjustment Knob/Muting Button Turn to adjust gain of the mic; press to turn on/o muting 4.
- Page 5 Installation and Usage 1. Adjust the angle of the microphone according to your needs 2. Connect the microphone with phones/computers through 2 in 1 audio cable and related adapter/adapter cable. Choose whether to monitor according to your needs Adapter Adapter Cable Please purchase the Lightning to USB adapter with OTG function by yourself when using with Lighting devices...
- Page 6 Specifications Condenser Acoustic Principle Polar Pattern Cardioid Sensitivity -37dB±2dB Frequency Response 20Hz ~ 20kHz Maximum SPL 120dB SPL (@ 1% THD) 70dB SPL(A-weighted,as per IEC651) 24dB SPL(A-weighted,as per IEC651) Equivalent Noise Dynamic Range 96dB SPL(A-weighted,as per IEC651) Sampling Rate 48kHz Bit Depth 24-bit Output Interface...
- Page 9 AT20 心型电容USB麦克风 用户使用说明书...
- Page 11 前言 感谢您购买AT20 产品主要功能 . 48kHz/24bit录音，专业棚级音质 . 支持实时监听，一键静音 . 16mm心型指向电容咪头，精准拾音 . 机内防风和减震设计，有效滤除杂音 . USB-C数字输出，广泛兼容电脑、手机 . 全金属材质，优异屏蔽性能 . 支持无级增益及监听音量独立调节 注意事项 请将声源对准正面的’7RYMS’ logo以获得更好的录音效果 请将麦克风增益旋钮调至合适的位置使用，以获得最佳声音效果，调至最大增益有可能出现声音过曝的情况 请勿将本设备放置在热源或干扰源附近使用，如散热器、烤箱、冰箱、空调等 本产品属于高精密仪器类产品，请避免使用时掉落、碰撞或重击 不要在雨中或潮湿的环境中使用该设备，否则会有短路的危险 请在干燥环境中对该产品进行保存 包装清单 主体： 麦克风 配件： Errun Electronic Technology www.7ryms-audio.com Product Model: Vendor's information Customer information Vendor:...
- Page 12 部件介绍及说明 ① ② ⑤ ③ ④ ⑥ 1. 麦克风咪头 2. 麦克风工作/静音指示灯 正常工作时蓝灯长亮，静音时红灯长亮 3. 增益调节旋钮/静音按键 旋转调节麦克风增益，短按开启/关闭静音 4. 监听音量调节旋钮 旋转调节监听音量 5. 3.5mm TRS/TRRS监听耳机接口 6. USB-C音频输出接口...
- Page 13 安装与使用方法 1.根据个人需求调节麦克风的角度 2.通过二合一音频连接线和相关音频转接线/转接头连接麦克风和手机/电脑；根据个人需求选择是否监听 转接头 转接线 搭配Lightning接口设备时，请自行购买支持OTG功能的USB-Lightning转接线/转接头...
- Page 14 技术规格 电容式 声学原理 心型指向 指向性 -37dB±2dB 咪头灵敏度 20Hz ~ 20kHz 麦克风频率范围 120dB SPL (@ 1% THD) 最大声压级 70dB SPL(A-weighted,as per IEC651) 信噪比 24dB SPL(A-weighted,as per IEC651) 等效噪声 96dB SPL(A-weighted,as per IEC651) 动态范围 48kHz 采样率 24-bit 位深 USB-C 输出接口 3.5mm TRS/TRRS 监听接口...
