7RYMS iRa UW10 User Manual

Broadcasting-level multi-functional mini uhf wireless microphone
Hide thumbs

Advertisement

Quick Links

Download this manual
Broadcasting-Level Multi-functional Mini UHF Wireless Microphone
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the iRa UW10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for 7RYMS iRa UW10

Summary of Contents for 7RYMS iRa UW10

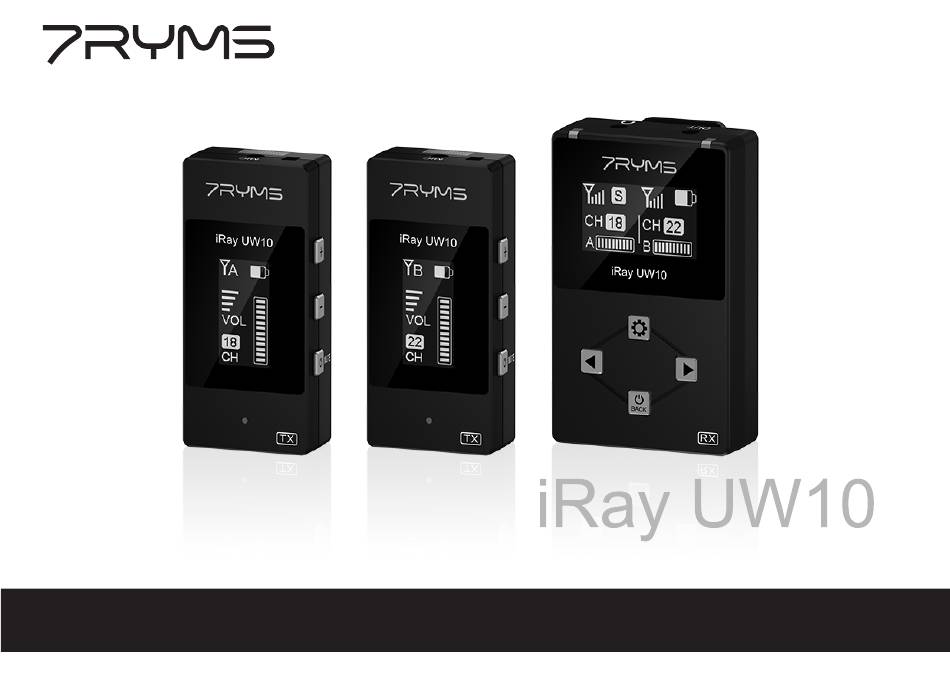

  • Page 1 Broadcasting-Level Multi-functional Mini UHF Wireless Microphone User Manual...

  • Page 3: Fcc Statement

    FCC statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part15 of the FCC Rules.
  • Page 4 This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.

  • Page 5: Main Features

    Foreword Thanks for purchasing 7RYMS iRay UW10 Main Features 1. Dual-channel UHF Wireless Microphone, Mini and Portable 2. Internal and External MIC Two Input Modes 3. Built-in Antenna, Working Distance is Up to 50m 4. 24 Channels Used for Multi-receiver Monitoring and Shooting 5.

  • Page 6: Packing List

    9. User Manual 10. Warranty Card ③ ④ ⑤ ⑥ Purchase Options: iRay UW10 (A) ①x2+②+③x2+④x2+⑤+⑥+⑦+⑧+⑨+⑩ Errun Electronic Technology www.7ryms-audio.com Product Model: iRay UW10 (B) Vendor's information Customer information Vendor: Customer Name: Vendor Tel: Address: Date of Purchase: Email Address:...
  • Page 7 Components and Instruction Transmitter (TX) 3.5mm TRS Port of External Mic Internal Mic External Mic Locking Buckle Volume+ Volume- Power / Muting Switch Button IPS Screen Power Indicator Light Belt Clip IR Sensor USB-C Charging Port...

  • Page 8: Function Introduction

    Function Introduction: 1. Power / Muting Switch Button Long press for On/O ; Short press for Muting 2. Volume+ Short press to increase the volume 3. Volume- Short press to reduce the volume 4. Internal Mic Turn the Mic to the sound source 5.
  • Page 9 Screen Display Instruction: Symbol of Group A/B is Transmitter paired successfully Battery Status Volume Audio Dynamic Bar Channel of Group A/B...
  • Page 10 Receiver (RX) Group A Working Status Indicator 3.5mm TRS/TRRS Monitoring Port 3.5mm TRS Audio Output Port Group B Working Status Indicator IPS Screen Menu Button Menu Switch Button+ Power/Back Switch Button Menu Switch Button- Belt Clip USB-C Charging Port IR Sensor...
  • Page 11 Function Introduction: 1. Power/Back Switch Button Long press for On/O ; Short press to back to previous menu 2. Menu Button Short press to enter menu and make operation 3. Menu Switch Button Short press to switch menu 4. Group A/B Working Status Indicator Blue light keeps on after paired successfully 5.
  • Page 12 Screen Display Instruction: S(Stereo): Group A is left channel and Group B is right channel M(Mono): The sound sources of group A and group B are mixed Group A Signal Strength Group B Signal Strength Receiver Battery Status Channel of Channel of Group A Group B...
  • Page 13 Installation and Usage Pairing Method Short press the receiver button to enter menu, then choose Auto/Manu Pair, and pair through the IR Sensor （Auto Pair: Group A/B） （Manu Pair: Group A/B） IR Sensor IR Sensor （Receiver） （Transmitter） 1. It is recommended to keep a distance of more than one meter between the two transmitters during pairing, otherwise the pairing will easily fail 2.

  • Page 14: Installation

    Installation Transmitter(TX) Use the internal/external mic according to your need Internal Mic External Mic 1. For better concealment during use, it is recommended that the belt clip is fixed and used outwards 2. When using an external microphone, the internal microphone is automatically turned o...
  • Page 15 Receiver (RX) 1. Work with Camera Fix the receiver through the belt clip to the camera's hot shoe mount, then connect the receiver with camera through the 3.5mm TRS-TRS audio cable; Choose whether to monitor according to your needs TRS Plug 3.5mm TRS-TRS Audio Cable...
  • Page 16 Work with Smartphone/Computer Connect the receiver with smartphone/computer through the 3.5mm TRS-TRRS audio cable and related audio adapter cable; Choose whether to monitor according to your needs Audio adapter cable TRS Plug TRRS Plug Please purchase the related audio adapter cable by yourself...

  • Page 17: Specifications

    Specifications Transmitter (TX) Antenna PCB Antenna Polar Pattern Omnidirectional Frequency Response 80Hz ~ 20kHz Sound Pressure Level 100dB Signal/Noise 70dB Equivalent Noise 24dBA Sound Delay <20ms Audio Distortion <0.5% External Mic Input Interface 3.5mm TRS Battery Li-ion Battery 440mAh 3.7V Battery Life 4 Hours Net Weight...
  • Page 18 Receiver (RX) Antenna PCB Antenna Signal/Noise 70dB Equivalent Noise 24dBA Sound Delay <20ms Audio Distortion <0.5% Audio Output Interface 3.5mm TRS Monitor Interface 3.5mm TRS/TRRS Battery Li-ion Battery 500mAh 3.7V Battery Life 4 Hours Net Weight Dimension 40 x 22 x 64mm Operating Temperature 0℃...

  • Page 19: Transmitter (Tx)

    Transmitter (TX) Channels 24 x 2 Group A Wireless Frequency 541.125MHz ~ 546.875MHz Group B Wireless Frequency 547.125MHz ~ 552.875MHz Transmitting Power 15dBm Receiver (RX) Channels 24 x 2 Group A Wireless Frequency 541.125MHz ~ 546.875MHz Group B Wireless Frequency 547.125MHz ~ 552.875MHz Receiving Sensitivity -90dBm...
  • Page 21 广电级迷你多功能UHF无线麦克风 用户使用手册...
  • Page 23 前 言 感谢您购买七语iRay UW10 产品主要功能 . 双通道UHF无线麦克风，迷你便携 . 可视化电量、音量、音频动态检测条 . 内置/外置麦克风双收音模式选择 . 一键静音、M/S切换、4级音量调节 . 内置天线，传输距离高达50m . 外置麦克风防脱设计，牢固易用 . 24频道，支持多接收监听，多机位拍摄 . 多功能背夹设计，小巧精悍 . 可手动/自动配对，支持屏显翻转 注意事项 1.本产品属于高精密仪器类产品，请避免使用时掉落、碰撞或重击 2.请勿将本设备放置在热源或干扰源附近使用，如散热器、烤箱、冰箱、空调等 3.不要在雨中或潮湿的环境中使用该设备，否则会有短路的危险...
  • Page 24 9. 说明书 10. 保修卡 ③ ④ ⑤ ⑥ 搭配选择： iRay UW10 (A) ①x2+②+③x2+④x2+⑤+⑥+⑦+⑧+⑨+⑩ Errun Electronic Technology www.7ryms-audio.com Product Model: Vendor's information Customer information Vendor: Customer Name: Vendor Tel: Address: Date of Purchase: Email Address: Broadcasting-Level Multi-functional Mini UHF Wireless Microphone...
  • Page 25 部件介绍及说明 发射器 (TX): 3.5mm TRS外置麦克风插孔 内置麦克风 外置麦克风插头卡扣 音量+ 音量- 电源/静音切换按键 IPS显示屏 电源指示灯 背夹 红外对码窗 USB-C充电插口...
  • Page 26 发射器功能介绍: 1. 电源/静音切换按键 长按开机/关机；短按切换静音 2. 音量+ 短按增加音量 3. 音量- 短按减小音量 4. 内置麦克风 将内置麦克风对准音源即可拾音 5. 3.5mm TRS外置麦克风插孔 插入3.5mm TRS无线专用领夹麦克风即可进行录音 6. 红外对码窗 配对时发射器与接收器的红外对码窗相对才能进行有效配对 7. 电源指示灯 开机长亮 8. USB-C充电插口 通过充电线连接发射器与外接电源进行充电...
  • Page 27 发射器屏幕显示: A/B通道连接成功符号 发射器电池电量 音量 音频动态条 A/B通道频道...
  • Page 28 接收器 （RX） : A通道工作状态指示灯 3.5mm TRS/TRRS耳机监听插孔 3.5mm TRS音频输出插孔 B通道工作状态指示灯 IPS显示屏 功能菜单按键 功能菜单切换按键+ 电源/菜单返回按键 功能菜单切换按键- 背夹 USB-C充电插口 红外对码窗...
  • Page 29 接收器功能介绍: 1. 电源/菜单返回按键 长按开机/关机；短按返回上一级菜单 2. 功能菜单按键 短按进入功能菜单及相关操作 3. 功能菜单切换按键 短按切换功能菜单 4. A/B通道工作状态指示灯 配对成功后蓝灯常亮 5. 3.5mm TRS音频输出插孔 通过3.5mm TRS-TRRS音频连接线与手机进行连接；通过3.5mm TRS-TRS音频连接线与相机进行连接 6. 3.5mm TRS/TRRS耳机监听插孔 插入3.5mm TRS/TRRS耳机即可监听 7. 红外对码窗 配对时发射器与接收器的红外对码窗相对才能进行有效配对 8. USB-C充电插口 通过充电线连接接收器与外接电源进行充电...
  • Page 30 接收器屏幕显示: S （立体声）：立体声模式下A通道为左声道，B通道为右声道 M （单声道）：单声道模式下AB通道的音源混合输出 A通道信号强度 B通道信号强度 接收器电池电量 A通道频道 B通道频道 A通道音频动态条 B通道音频动态条...
  • Page 31 安装与使用方法 配对方式 短按接收器 进入菜单界面，选择自动/手动配对，保持接收器和发射器的红外对码窗口相对 即可成功配对 （接收器自动配对：工作组 A/B） （接收器手动配对：工作组 A/B） 红外对码窗 红外对码窗 （接收器） （发射器） 1.对码时两个发射器之间建议保持一米以上的距离，否则容易造成误对码 2.自动配对会选择最适合当下环境的频道，手动配对则为自己选定频道...
  • Page 32 安装方法 发射器（TX） 根据个人需求选择使用内置/外置麦克风 内置麦克风 外置麦克风 1.在使用内置麦克风时，为了更好的隐蔽性，建议将背夹朝外固定使用 2.当使用外置麦克风时，内置麦克风会自动关闭...
  • Page 33 接收器（RX） 1.搭配相机 把接收器通过背夹夹到相机的热靴座固定；通过3.5mm TRS-TRS音频连接线连接接收器和相机； 根据个人需求选择是否监听 三节TRS插头 3.5mm TRS-TRS音频连接线...
  • Page 34 2.搭配手机/电脑 通过3.5mmTRS-TRRS音频连接线和相关音频转接线连接接收器和手机/电脑；根据个人需求选择是否 监听 转接线 三节TRS插头 四节TRRS插头 请自行购买相关音频转接线...
  • Page 35 技术规格 发射器（TX） PCB天线 天线 麦克风指向性 全指向 80Hz ~ 20kHz 麦克风频响 100dB 声压级 70dB 系统信噪比 24dBA 系统等效噪声 <20ms 声音延迟 音频失真 <0.5% 外置输入接口 3.5mm TRS 电池 锂聚合物 440mAh 3.7V 4小时 续航时间 净重 尺寸 28 x 25 x 60mm 0℃ ~ 50℃ 工作温度 -20℃...
  • Page 36 接收器（RX） 天线 PCB天线 系统信噪比 70dB 系统等效噪声 24dBA <20ms 声音延迟 <0.5% 音频失真 3.5mm TRS 音频输出接口 3.5mm TRS/TRRS 监听接口 锂聚合物 500mAh 3.7V 电池 续航时间 4小时 净重 尺寸 40 x 22 x 64mm 0℃ ~ 50℃ 工作温度 -20℃ ~ 60℃ 存储温度...
  • Page 37 发射器（TX） 频道数 24 x 2 Group A 载波频率 541.125MHz ~ 546.875MHz Group B 载波频率 547.125MHz ~ 552.875MHz 发射功率 15dBm 接收器（RX） 频道数 24 x 2 Group A 载波频率 541.125MHz ~ 546.875MHz Group B 载波频率 547.125MHz ~ 552.875MHz 接收灵敏度 -90dBm...
  • Page 40 Email: support@7ryms.com The 7RYMS LOGO is trademark which is registered and owned by Errun Electronic Technology Co., Ltd...
