heat-timer Mini-MOD-CNC Installation And Operation Manual page 49

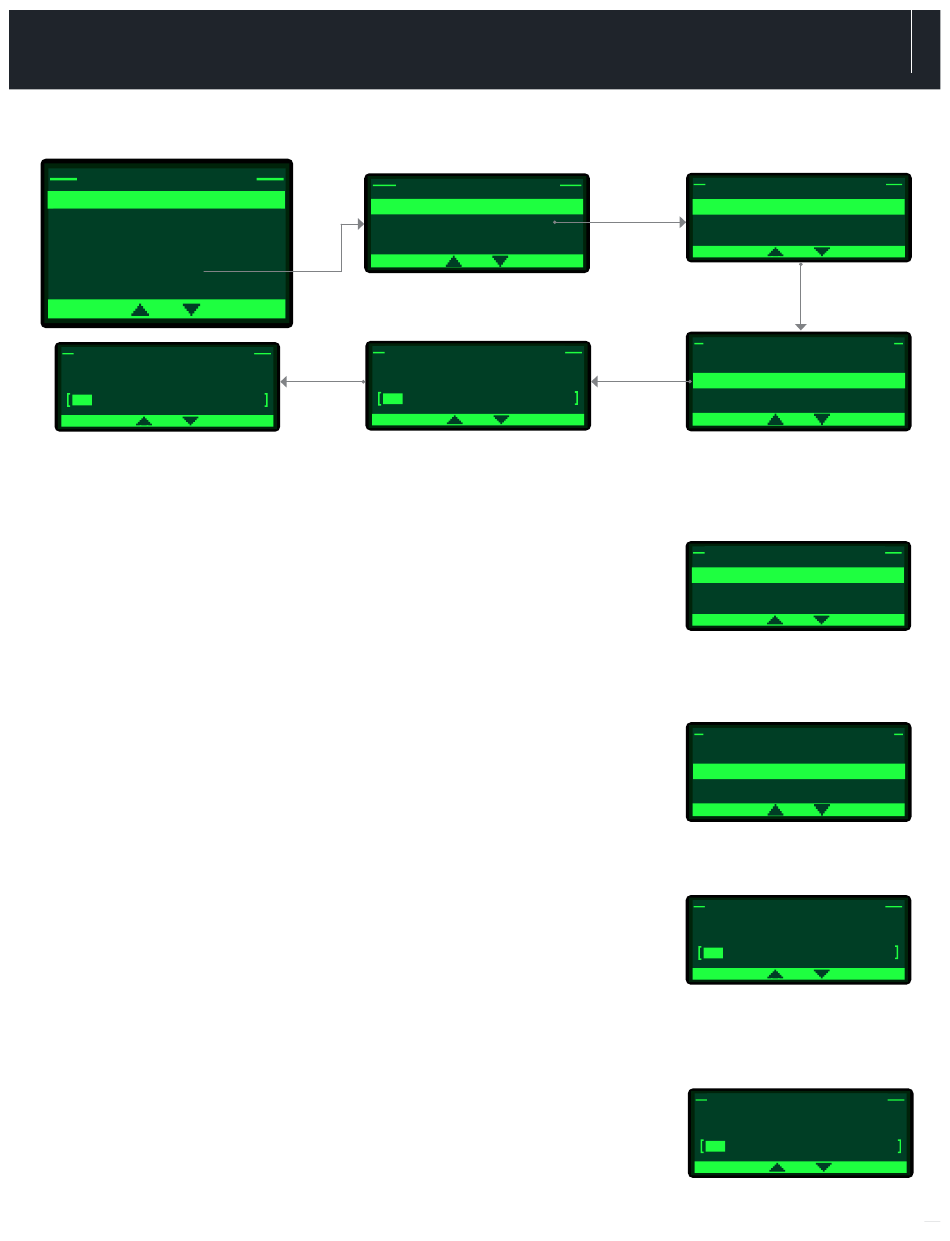

BACNET MSTP STARTUP MENU
SETTINGS
Season
System Target
<System Settings>
<Maintenance>
<System Startup>
BACK
BACNET ID
477000
BACK
When using the Mini-MOD-CNC in a BACnet MS/TP network, the use of BACnet Interface Module is required (P/N926781-00).
In addition, each of the Boiler Type and Sensor Type Startup menu option will offer a different list of BACnet variables. See
"BOILER TYPE" on page 22. See "SENSOR TYPE" on page 20. Also, see the BACnet Variable list on page 48.
BACNET MODE
Button: MENU/<System Startup>/.... Sensor Fault/BACnet Mode
• This menu option enables or disables the BACnet MSTP capability. When enabled,
additional BACnet settings shall be available for further customizing.
• Note that if this option was enabled while no BACnet communication is present, the BACnet
error message will supersede other messages. See "DISPLAY MESSAGES" on page 41.
BACNET BAUD RATE
Button: MENU/<System Startup>/.... Sensor Fault/BACnet Mode/
BACnet Baudrate
• For the control to communicate over a BACnet MS/TP network, it must use the same
Baud rate as the rest of the network. The control offers three Baud Rates.
• If communication was not successful, the baud rate could be the cause. Check with the
network administrator for the network baud rate. Then match it on the control.
MS/TP ADDRESS
Button: MENU/<System Startup>/.... /BACnet Mode/BACnet Baudrate/
MSTP Address
• Each device on the MS/TP network must have a unique address.
• This is the MS/TP address on a RS485 network. Its MS/TP range is 1 though 127.
• The MS/TP address must be provided by the Network Administrator.
BACNET ID
Button: MENU/<System Startup>/.... / MSTP Address / BACnet ID
• The BACnet ID is a unique 32 bit number that identifies the control within the BACnet
network. No two ID shall be the same even if dealing across networks.
059102-00 REV. C
Winter
No
140°F
Yes
BACK
SELECT
BACK
SAVE
Enable, Disable
9600, 19200, 38400
1 to 127
1 to 4,000,000
ARE YOU SURE?
SAVE
MS/TP ADDRESS
64
SAVE
Default: Disable
Default: 19200
Default: 64
Default: 477,000
22
BACNET
BACNET MODE
Disable
Enable
BACK
BACNET BAUDRATE
9600
19200
38400
BACK SAVE
BACNET MODE
Disable
Enable
BACK
BACNET BAUDRATE
9600
19200
38400
BACK SAVE
MS/TP ADDRESS
64
BACK
BACNET ID
477000
BACK
HEAT-TIMER CORP.
SAVE
SAVE
SAVE
SAVE
|
49
