heat-timer Mini-MOD-CNC Installation And Operation Manual page 12

Each of the Mini-MOD-CNC or Mini-Extension consists of three
primary enclosure components.
• The Enclosure Display Module: contains the display, buttons,
LEDs and electric wiring terminals. It has two screws to hold it
to the base. A program configuration switch, used to adjust
Mini-MOD-CNC settings, is placed above the terminals. This
switch is enclosed with the enclosure wiring cover for security.
Wiring terminals are of the plug-in type to ease installation
and removal.
• The Enclosure Base: contains the holes to mount and hold the
control against the wall or any flat surface. All other enclosure
components mount on the base. The bottom section of the
Enclosure Base contains the wiring chamber with knockouts on the
bottom to ease installation.
• The Enclosure Wiring Cover: seals the wires from the external
environment. It has two screws to hold it the base and a hole
to secure a lock on the wiring enclosure. A plastic web that
separates the wiring chamber into high and low volt sections has
been provided.
MOUNTING THE ENCLOSURE
• Select a location near the equipment to be controlled.
• The surface should be flat and sufficiently wide and strong to hold
the Mini-MOD-CNC or the Mini-Extension.
• Keep the control away from extreme heat, cold, or humidity.
Ambient operating temperature is from 20 to 120°F.
• Remove the Enclosure Wiring Cover from the control enclosure by
removing the two bottom screws.
• Remove the Enclosure Display Module by removing the enclosure
middle screws.
• Screw the Enclosure Base to the surface through the upper and
lower mounting holes on the back of the enclosure.
• Replace the Enclosure Display Module and replace the enclosure
middle screws.
• Do not replace the enclosure wiring cover until all wiring
is done.
• When purchasing a padlock for the enclosure, the maximum shank
diameter should not exceed ¼."
|
12 HEAT-TIMER CORP.
08
INSTALLATION

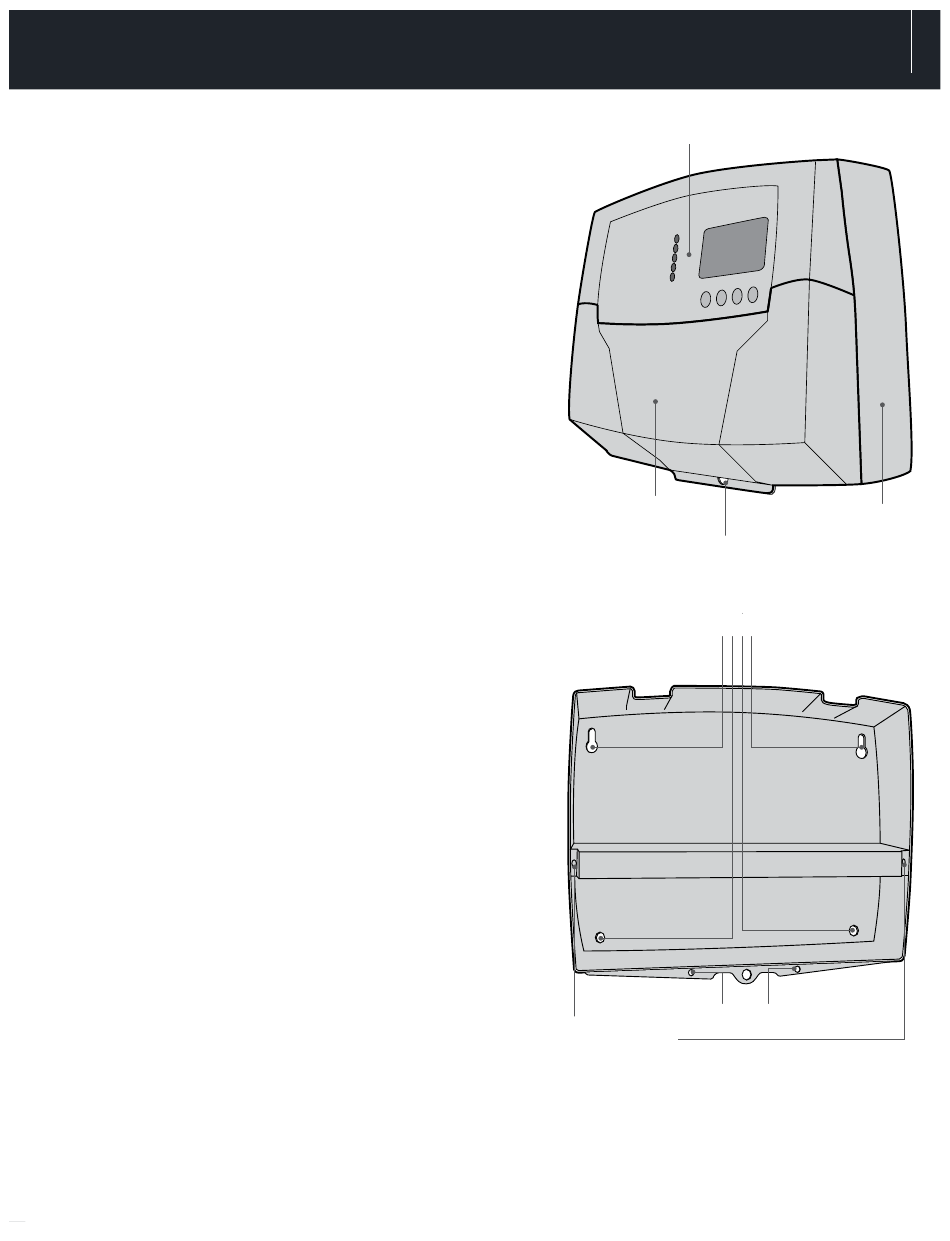

Enclosure Display Module
Enclosure Wiring
Cover
Hole for optional lock
Mounting Holes
Wiring Cover
Display
Mounting Holes
Enclosure Base
