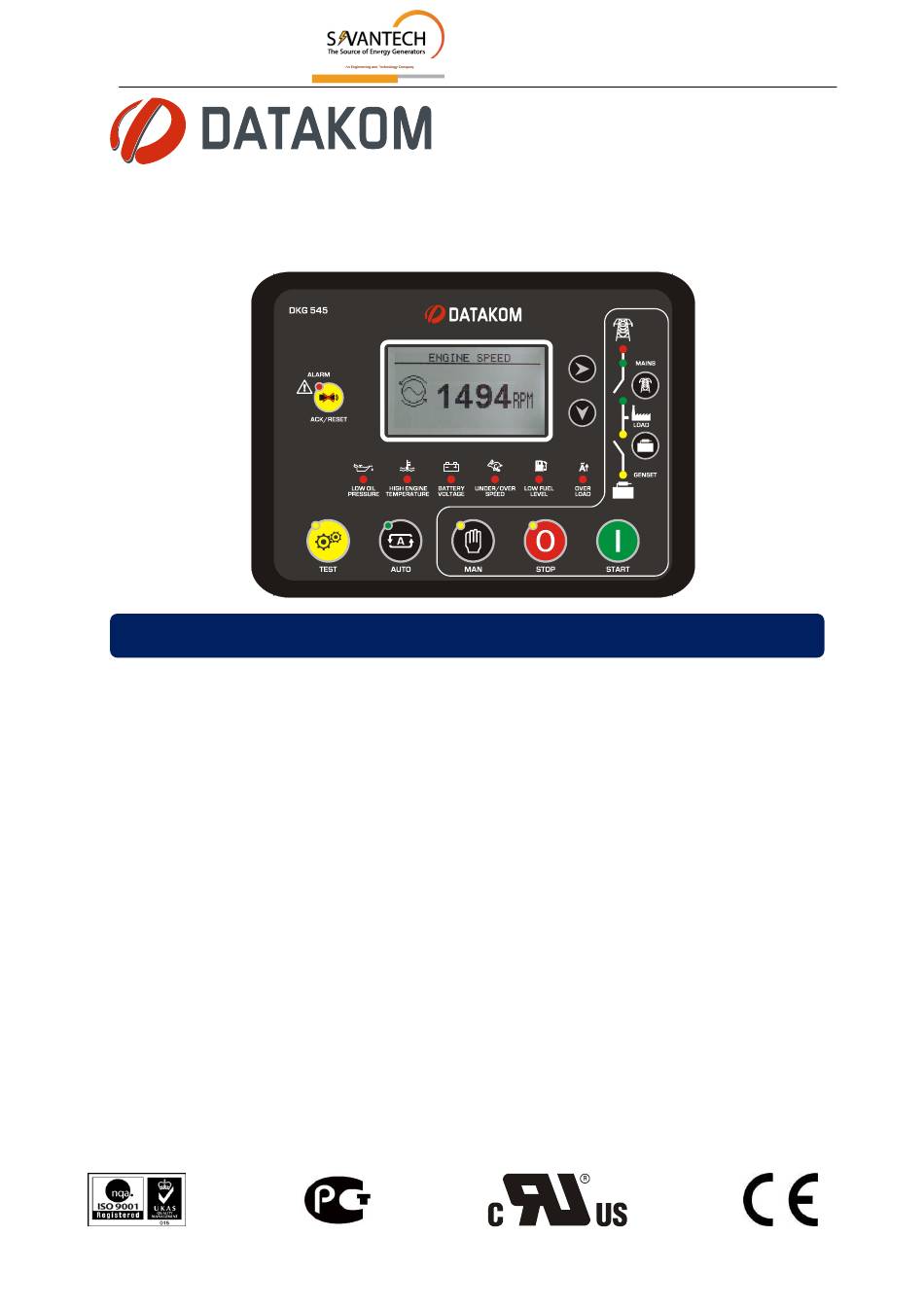

DKG-545 User Manual
AUTOMATIC MAINS FAILURE UNIT
Automatic mains failure
Engine control
Generator protection
Built in alarms and warning
Manual control enabled
Magnetic pickup input
Dual genset mutual standby operation
Load shedding, dummy load
Gas engine support
Engine idle speed control
True RMS measurements
3 phase mains voltage inputs
3 phase genset voltage inputs
3 phase genset/load CT inputs
Engine oil pressure measurement
Engine coolant temperature measurement
Fuel level measurement
Oil temperature measurement
Canopy temperature measurement
Canopy temperature measurement
Genset active power measurement
Genset power factor measurement
Engine rpm display
Periodic maintenance request indicator
Engine hours counter
Event logging with date-time stamp and complete
measurement values
Remote Panel Feature
4-20mA Oil pressure measurement
FEATURES
Stores last 100 events
Statistical counters
Battery backed-up real time clock
3 level password protection
Programmable parameters
Return to factory settings enabled
RS-232/ RS-485 selectable serial port
Firmware downloadable from serial port
Free MS-Windows Remote monitoring SW:
-local and modem connection
-monitoring, download of parameters
-networking via modems
GSM and PSTN modem support
GSM-SMS sending on fault
Modem calls on fault
MODBUS communication
128x64 graphic LCD display
Multiple language support
Customer logo display
Analogue inputs: 5
Digital inputs: 9
Digital outputs: 7
Input / output expansion capability
Remote Start operation available
Engine Idle speed control
Survives cranking dropouts
Sealed front panel
Plug-in connection system for easy replacement
Dimensions (202x148x48mm)
V-11
DKG-545
