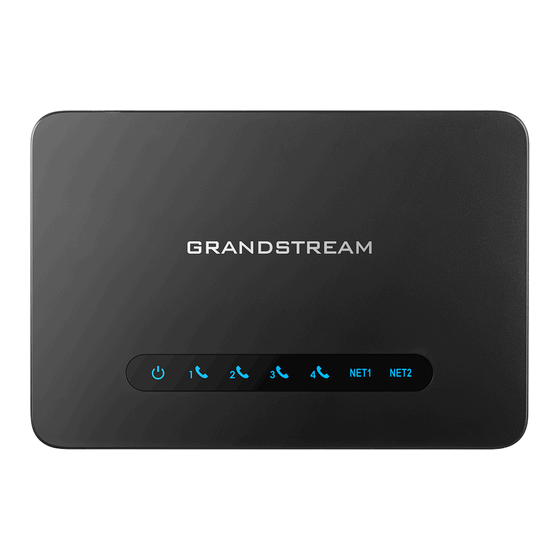

Grandstream Networks HT81 V2 Series User Manual

Hide thumbs Also See for HT81 V2 Series:

Advertisement

Quick Links

Download this manual
Grandstream Networks, Inc.
HT81x V2 - User Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the HT81 V2 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Grandstream Networks HT81 V2 Series

Summary of Contents for Grandstream Networks HT81 V2 Series

  • Page 1 Grandstream Networks, Inc. HT81x V2 - User Guide...
  • Page 2 PRODUCT OVERVIEW The HT81x V2 analog telephone adapters (ATA) allow users to create a high-quality and manageable IP telephony solution for residential and office environments. Their ultra-compact size, voice quality, advanced VoIP functionality, security protection, and auto provisioning options enable users to take advantage of VoIP on analog phones and allow service providers to offer high-quality IP service.
  • Page 3 POWER, NET1, NET2, PHONE1, PHONE2, PHONE3, PHONE4, PHONE 5, PHONE 6, PHONE 7 and PHONE 8 for HT818 V2. Factory Reset Yes. Button Voice, Fax, Modem Telephony Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way Features conference.
  • Page 4 Humidity: 10 – 90% Non-condensing. Dimension : 36 x 120 x 180 mm (H x W x D) Dimensions and Weight Weight: 353.33g for HT812 V2, 423.5g for HT814 V2 and 356g for HT818 V2. Compliance Compliance FCC/CE/RCM. HT81x V2 Technical Specifications GETTING STARTED This chapter provides basic installation instructions including the list of the packaging contents and also information for obtaining the best performance with the HT81x V2.
  • Page 5 HT814 V2 Package Contents HT818 V2 Package Contents Check the package before installation. If you find anything missing, contact your system administrator. HT81x V2 Ports Description The following figure describes the different ports on the back panel of the HT81x V2.
  • Page 6 HT812 V2 Ports Port Description Power socket. Used to power HT812 V2 (12V) NET1 port. Can be configured as LAN or WAN port on the HT812 V2. By default, it is considered a WAN port. NET2 port. Can be configured as LAN or WAN port on the HT812 V2. By default, it is considered a LAN port. FXS ports to connect analog phones / fax machines to HT812 V2 using RJ11 telephone cable.
  • Page 7 Factory reset button. Press for 7 seconds to reset to factory default settings. HT818 V2 Ports Port Description Power socket. Used to power HT818 V2 (12V) NET1 port. Can be configured as LAN or WAN port on the HT818 V2. By default, it is considered a WAN port. NET2 port.
  • Page 8 3. Insert the power adapter into the HT81x V2 and connect it to a wall outlet and make sure to respect the technical specifications of the power adapter used. 4. The Power, NET2 and FXS LEDs will be solidly lit when the HT81x V2 is ready for use. Note: HT81x V2 supports switching the working mode of NET1 and NET2 on Web User interface.
  • Page 9 The NET2 LED lights up when The HT812 V2 is connected to your network through the NET2 NET2 LED port. The phone LEDs indicate status of the respective FXS port-phone on the back panel ● OFF – Unregistered Phone LED 1-2 ●...
  • Page 10 HT818 V2 LEDs Pattern LED Lights Status The Power LED lights up when The HT818 V2 is powered on and it flashes when the HT818 Power LED V2 is booting up The NET1 LED lights up when The HT818 V2 is connected to your network through the NET1 NET1 LED port.
  • Page 11 3. Press 02 and the current IP address will be announced. Understanding HT81x V2 Interactive Voice Prompt Response Menu The HT81x V2 have a built-in voice prompt menu for simple device configuration which lists actions, commands, menu choices, and descriptions. The IVR menu works with any phone connected to the HT81x V2. Pick up the handset and dial “***” to use the IVR menu.
  • Page 12 Announces current Config Server Path IP Configuration Server IP Address address. Enter 12-digit new IP address. Upgrade protocol for firmware and Upgrade Protocol configuration update. Press “9” to toggle between TFTP/HTTP/HTTP /FTP/FTPS Firmware Version Announces Firmware version information. Firmware upgrade mode. Press “9” to toggle among the following three options: Always check Firmware Upgrade...
  • Page 13 Google Chrome: version 58.0.3 or higher. Mozilla Firefox: version 53.0.2 or higher. Safari: version 5.1.4 or higher. Opera: version 44.0.2 or higher. Accessing the Web UI The HT81x V2 can be connected via NET1 port or NET2 port, by default, NET1 is WAN (DHCP Client) and NET2 is LAN (DHCP Server).
  • Page 14 User User Level Password Web Pages Allowed View all pages but can only End User Level user modify basic settings random password located at the back of Browse all pages and Administrator Level admin the unit modify all settings View all pages but no Viewer Level viewer viewer...
  • Page 15 3. Press Login to access your settings. 4. Go to System Settings Security Settings User Info Management and enter the new end-user password. 5. Confirm the new end-user password. 6. Press Apply at the bottom of the page to save your new settings. User Level Password Note After first time log in attempt, the user will be forced to change his initial user level password defined by the administrator.
  • Page 16 Configuring HT81x V2 through Voice Prompts As mentioned previously, The HT81x V2 have a built-in voice prompt menu for simple device configuration. Please refer to “Understanding HT81x V2 Interactive Voice Prompt Response Menu” for more information about IVR and how to access its menu.
  • Page 17 Register a SIP Account The HT81x V2 support Profiles that can configure two SIP servers, Please refer to the following steps in order to register your accounts via web user interface. Access your HT81x V2 web UI by entering its IP address in your favorite browser. Enter your admin password (default: found on the sticker on the back of the unit).
  • Page 18 Register SIP Account After applying your configuration, your account will register to your SIP Server, you can verify if it has been correctly registered with your SIP server from your HT81x V2 web interface under Status Port Status Registration (If it displays Registered, it means that your account is fully registered, otherwise it will display Not Registered so in this case you must double check the settings or contact your provider).
  • Page 19 Enable SRTP per call. Meaning it's only valid for the current call. Disable SRTP per call. Meaning it's only valid for the current call. Block Caller ID (for all subsequent calls) Send Caller ID (for all subsequent calls) Direct IP Calling. Dial “*47” + “IP address”. No dial tone is played in the middle. Disable Call Waiting (for all subsequent calls) Enable Call Waiting (for all subsequent calls) Block Caller ID (per call).
  • Page 20 Flash/ Toggles between active call and incoming call (call waiting tone). If not in conversation, flash/hook will switch to a new channel for a new call. Hook Pressing pound sign will serve as Re-Dial key. HT81x V2 Call Features CALL OPERATIONS Placing a Phone Call To make the outgoing calls using your HT81x V2 1.
  • Page 21 Note: No dial tone will be played between steps 1 and 2 and destination ports can be specified using “*” (encoding for “:”) followed by the port number. Examples of Direct IP Calls: a) If the target IP address is 192.168.0.160, the dialing convention is *47 or Voice Prompt with option 47, then 192*168*0*160, followed by pressing the “#”...
  • Page 22 When attended transfer fails and A hangs up, the HT81x V2 will ring back user A to remind A that B is still on the call. A can pick up the phone to resume conversation with B 3-Way conferencing The HT81x V2 supports Bellcore style 3-way Conference. To perform the 3-way conference, we assume that the call is established between phone A and B are in conversation.
  • Page 23 To retrieve the new voice mail messages received, please refer to following steps: 1. Pick up the handset of the connected phone (stutter tone will be played). 2. Press *** (press the star key three times) to access the IVR menu and wait until you hear “Enter the menu option “. 3.
  • Page 24 • DTMF via RTP (RFC2833) • DTMF via SIP INFO Set priority of DTMF methods according to your preference. This setting should be based on your server DTMF setting. Preferred Vocoder (Codec) The HT81x V2 support following voice codecs. On Profile pages, choose the order of your favorite codecs: PCMU/A (or G711µ/a) G729 A/B G723.1...
  • Page 25 Firmware Upgrade Page Upgrading via Local Directory 1. Download the firmware file from the Grandstream web site 2. Unzip it and copy the file in to a folder in your PC 3. From the HT81x V2 web interface Maintenance �� Upgrade Firmware you can browse your hard drive and select the folder you previously saved the file.
  • Page 26 End users can also choose to download a free HTTP server from https://httpd.apache.org/ or use a Microsoft IIS web server. Firmware and Configuration File Prefix and Postfix Firmware Prefix and Postfix allow the device to download the firmware name with the matching Prefix and Postfix. This makes it possible to store all the firmware with different version in one single directory.
  • Page 27 Automatic Upgrade Managing Device using GDMS Cloud The GDMS Device Management System is a cloud solution from Grandstream that facilitates the provisioning and management of Grandstream devices, including the HT8xx ATAs. The platform enables users to centralize the control and management of multiple HT8xx devices, deployed across various locations, on a single interface.
  • Page 28 download a generic cfg<Model>.xml file and then download cfg.xml. The configuration file name should be in lower case letters. HT818 supports DHCP option 67 allowing to provide custom name for the provisioning file. If DHCP option 67 is used, the following file download sequence will be applied: Step 1: <option 67 bootfile>...
  • Page 29 This will redirect you to a web page displaying a list of certification names and details, with their corresponding expiration dates: RESTORE FACTORY DEFAULT SETTINGS Restoring the Factory Default Settings will delete all configuration information on the phone. Please backup or print all the settings before you restore to the factory default settings.
  • Page 30 Mapping 22 (press the “2” key twice, “A” will show on the LCD) 2222 33 (press the “3” key twice, “D” will show on the LCD) 3333 MAC Address Key Mapping For example: if the MAC address is 000b8200e395, it should be keyed in as “0002228200333395” Reset from Web Interface (Reset Type) 1.
  • Page 31 CHANGE LOG This section documents significant changes from previous versions of the admin guide for HT81x V2. Only major new features or major document updates are listed here. Minor updates for corrections or editing are not documented here. Firmware Version 1.0.1.14 This is the initial Firmware.
