Grandstream Networks HT814 Installation Manual

Ata device

Hide thumbs Also See for HT814:

Grandstream HT814/HT818

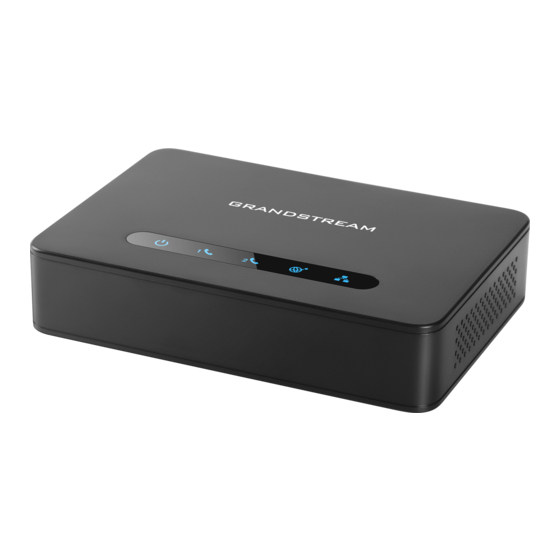

The Grandstream HT814 is a four-port FXS and HT818 is an eight-port FXS Analog Telephone Adapter (ATA) device

packaged in a compact chassis. These devices can be used for the following purposes:

● Fax machine on FXS port

● Local or remote phone on FXS port

Overview of the Installation Process

The HT814 and HT818 are normally pre-configured for use with our StarCloud+ telephone system. In most cases,

the installer can connect the HT814 or HT818 to the customer's network along with the appropriate analog

telephone connections.

If the provided configuration needs to be changed, it is possible to field-program the HT814 or HT818 using the

instructions covered later in this guide.

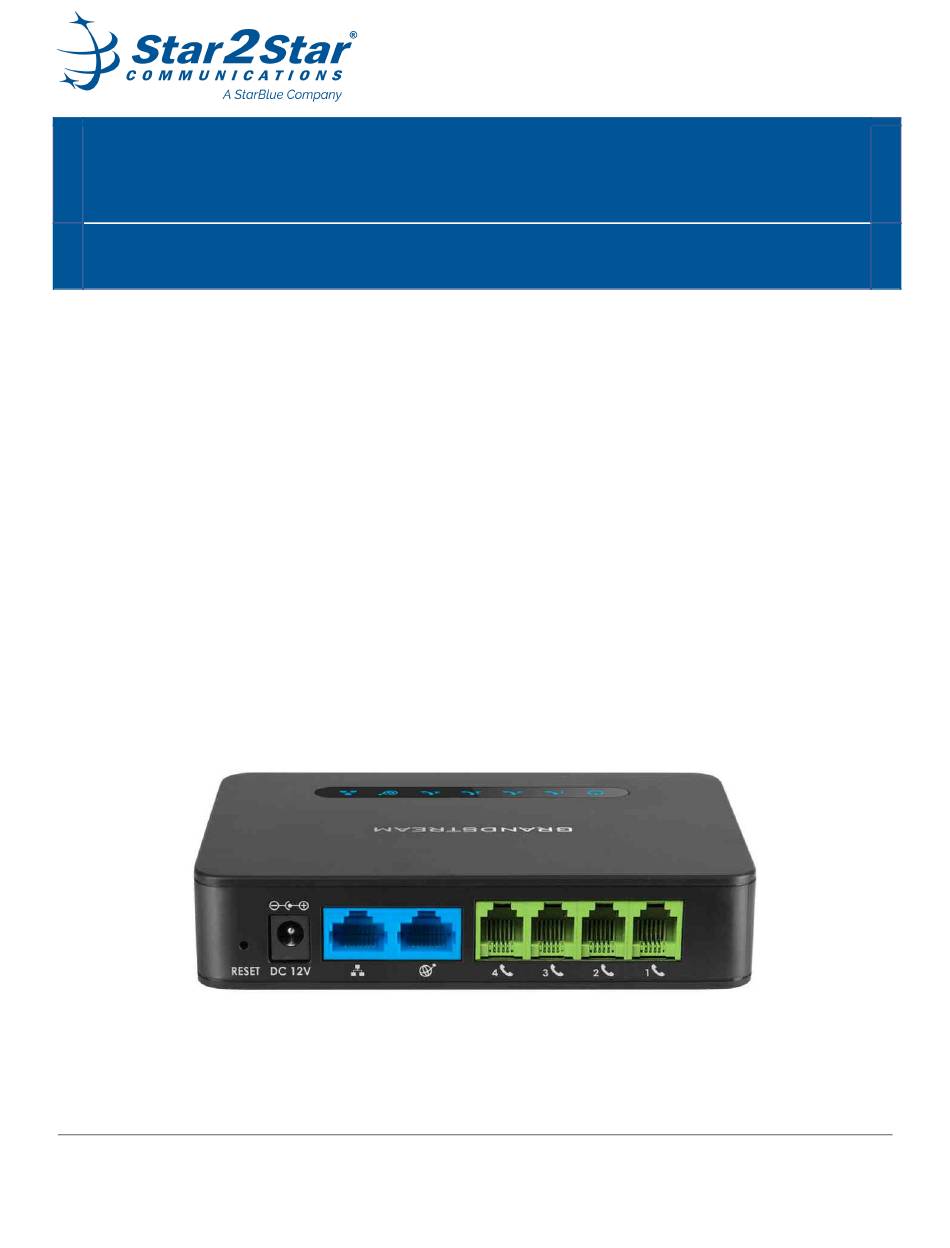

The rear panel of the HT814 has a power connection, four RJ11 telephone connectors, and two RJ45 network

connectors, as shown in the following picture:

Communications, LLC. All logos and company names are trademarks or service marks of their respective companies.

A TA Device Installation Guide

HT814 Rear View

August 2019

Table of Contents

Do you have a question about the HT814 and is the answer not in the manual?

Page 1 HT814 or HT818 to the customer’s network along with the appropriate analog telephone connections. If the provided configuration needs to be changed, it is possible to field-program the HT814 or HT818 using the instructions covered later in this guide.
Page 2 The HT814 and HT818 can be configured for either local (On-Net) or remote (off-net) use. If you are re-deploying an HT814 or HT818 that was already configured, follow the instructions in the F actory Reset section below. Then, configure the device for either local or remote operation.
Page 3 To factory reset the HT814 or HT818 ATA device: 1. Unplug the cable from the WAN or LAN port. 2. Locate the small hole on the back panel of the unit next to the power connector, to the left for HT814 and to the right for HT818.
Page 4 Grandstream HT814 and HT818 ATA Device Installation Guide HT814 and HT818 Status Lights The following status lights are available on the HT814 and HT818 top panel: Light Blue Light Indicates Connected to power. Phone is connected and off-hook. Connected to a WAN connection.

Ht818
