Advantech EKI-3725P Startup Manual

EKI- EKI-3725
Industrial Unmanaged Gigabit Ethernet
Overview
The EKI-3725 P is a new generation product with
green Ethernet design and supports 4 ports
IEEE802.3af . (15.4Watts per port. )
green solutions that automatically adjust power
consumption by detecting the link status and cable
length. Designed with "VIP" port to get optimal
bandwidth for media traffics through VIP port users
can experience better performance of multimedia
streaming preferred through prioritized bandwidth
setting. The device comes with compact metal
housing that is IP40 rated to protect against dusty
industrial environments.
The wide power input power ( 21.6 to 52. 8 VDC ) is
dedicated to operate in areas of unstable power and
rugged environments. It also provides an event alarm
and in the event of a power failure and connection
loop, the integrated LED will activate the alarm to
notify administrators.
Packing List
Before installation, please make sure that you have
received the following:
• 1 x EKI-3725 P Industrial Unmanaged Fast Eth-
ernet PoE Switch
• 1 x Wall M ounting B racket
• 1 x DIN-rail Mounting Bracket and Screws
• 1 x EKI-3725 P St artup M anual
If anything is missing or damaged, contact your
distributor or sales representative immediately.
User Manual
For more detailed information, please refer to the
full manual which can be found on the Advantech's
website.
Notes
For more information on this and other Advantech
products, please visit our websites at:
http://www.advantech.com/eAutomation
For technical support and service:
http://www.advantech.com/support/
This startup manual is for EKI-372 5P
Part No. EKI-3725P-AE
1 Startup Manual
P
It features
1st Edition
June 201 4
PoE Switch
Specifications
General
• Compatibility: IEEE 802.3, 802.3u, 802.3x,
802.3ab, 802.3az , 802.3af
• LAN: 10/100/1000 Base-TX
• Ethernet RJ-45: Up to 100 m

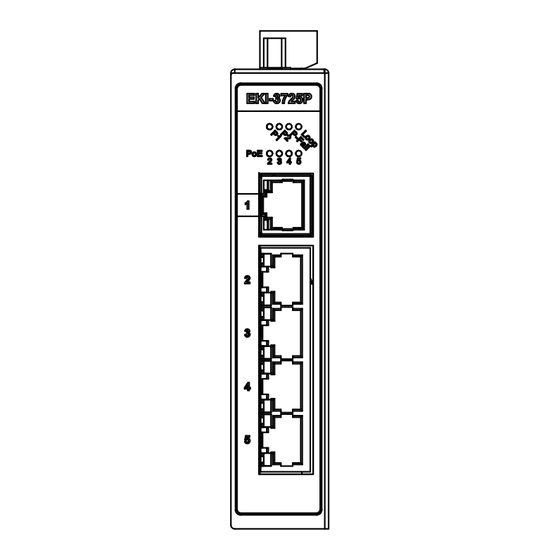

• Connectors:
EKI-3725 P : 5 x 10/100/1000 Base-TX
RJ-45 ports with 4 PoE ports
6-pin removable screw terminal (Power &
Relay)
• Switch Architecture: Store and Forward
• Power Requirement: 24 ~48V
Power Input with reverse polarity protection.
Power consumption:
System: 4.51 Watts
PoE budget: 61.6Watts
:DWWV SHU SRUW
Dimensions(WxHxD): 25.6x120x83mm
• Enclosure: IP40
• Operating Temperature: -10 ~ 60°C
(14°F~140°F)
• Storage Temperature: -40 ~ 85°C (-40°F~185°F)
• Operating/Storage Humidity: 5%~95%
(noncondensing)
• Safety: UL60950
• EMC: FCC Class A, CE
• Warranty: 5 years
, Redundant
DC
