Page 1: User Manual

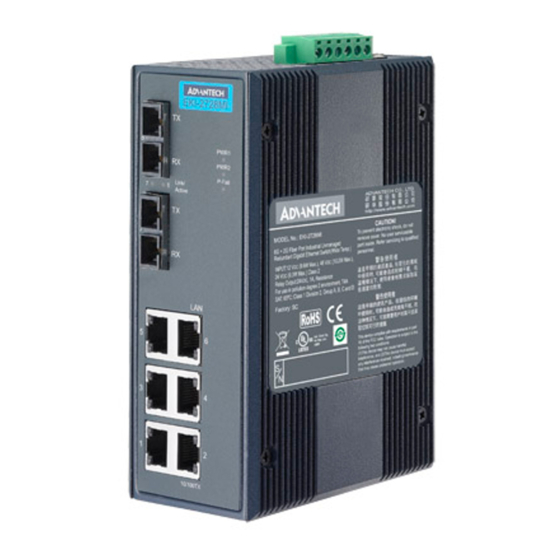

EKI-2728MI 6G + 2G Fiber Port Industrial Unmanaged Gigabit Ethernet Switch User Manual... - Page 2 The documentation and the software included with this product are copyrighted 2007 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd.
- Page 3 Because of Advantech′s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
- Page 4 Step 2. Contact your distributor, sales representative, or Advantech’s customer service center for technical support if you need additional assistance. Please have the following information ready before you call: - Product name and serial number...
- Page 5 Safety Instructions 1. Read these safety instructions carefully. 2. Keep this User's Manual for later reference. 3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning. 4. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.
- Page 6 Safety Precaution - Static Electricity Follow these simple precautions to protect yourself from harm and the products from damage. 1. To avoid electrical shock, always disconnect the power from your PC chassis before you work on it. Don't touch any components on the CPU card or other cards while the PC is 2.
-
Page 7: Table Of Contents
2.1 LED Indicators ............ 8 Table 2.1: EKI-2728MI LED Definition.......8 2.2 Dimensions (units: mm) ........9 Figure 2.1: Front View of EKI-2728MI ......9 Figure 2.2: Side View of EKI-2728MI......10 Figure 2.3: Rear View of EKI-2728MI .......11 Figure 2.4: Top View of EKI-2728MI ......12 2.3 Mounting ............ - Page 8 EKI-2728MI_Manual_ed1.doc viii...
- Page 9 Overview Sections include: Introduction Features Specifications Packing List Safety Precaution Chapter1...
-
Page 10: Overview
Fail LED will turn on and send an alarm through a relay output for notifying user. 1.1.3 Flexible Mounting EKI-2728MI is compact (59.6 x 105 x 152 mm) and can be mounted on a DIN-rail or a panel, so it is suitable for any space-constrained environment. 1.1.4... -
Page 11: Features
1.2 Features • Provides 6 Gigabit Ethernet ports with Auto Negotiation and 2 Gigabit Fiber ports • Supports 10/100/1000Mbps Auto Negotiation • Provides surge (EFT) protection 3,000 V for power line • Supports 4,000 V Ethernet ESD protection • Provides Slim size, DIN-rail with IP30 metal mechanism •... -
Page 12: Specification
1.3 Specification Communications IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z Standard 10/100/1000Base-TX Up to 100m (4-wire Cat.5e, Cat 6 RJ-45 cable) Transmission Distance Up to 1000Mbps Transmission Speed Interface 6 x RJ-45 Connectors 2 x Fiber sockets (SC) 6-pin removable screw terminal (power & relay) Unit: P1, P2, P-Fail, Link/Active for fiber LED Indicators Port: Link/Active, Speed... - Page 13 Certifications UL508, Class 1 Division 2 Safety FCC Class A EU: EN61000-6-2/4 EN61000-3/3/3 EN61000-4-2/3/4/5/6/8/11/12 IEC60068-2-32 Freefall IEC60068-2-27 Shock IEC60068-2-6 Vibration Chapter1...
-
Page 14: Packing List
1.4 Packing List • 1 x EKI-2728MI Industrial Ethernet Switch • 1 x eAutomation Industrial Communication CD-ROM and User manual • 2 x Wall Mounting Bracket and Screws • 1 x DIN-rail Mounting Bracket and Screws • 1 x EKI-2728MI Startup Manual •... - Page 15 Installation Sections include: LED Indicators Dimensions Mounting Network Connection Power Connection Chapter2...
-
Page 16: Installation
Chapter 2 Installation In this chapter, you will be given an overview of the EKI-2728MI hardware installation procedures. 2.1 LED Indicators There are few LEDs display the power status and network status located on the front panel of EKI-2728MI, each of them has their own specific meaning as below table. -
Page 17: Dimensions (Units: Mm)
2.2 Dimensions (units: mm) Figure 2.1: Front View of EKI-2728MI Chapter2... -
Page 18: Figure 2.2: Side View Of Eki-2728Mi
Figure 2.2: Side View of EKI-2728MI EKI-2728MI_Manual_ed1.doc... -
Page 19: Figure 2.3: Rear View Of Eki-2728Mi
Figure 2.3: Rear View of EKI-2728MI Chapter2... -
Page 20: Figure 2.4: Top View Of Eki-2728Mi
The power & relay terminal block is located on the top. Please refer to page 16 for pin assignment. Figure 2.4: Top View of EKI-2728MI EKI-2728MI_Manual_ed1.doc... -
Page 21: Mounting
EKI-2728MI can be wall-mounted by using the included mounting kit. Then, hang on the EKI-2728MI to the nails on the wall. First, use the screws included in the package to combine the EKI-2728MI and metal mounting kit. And then you can install the device firmly via the components, please see Figure 2.5 as below. -
Page 22: Din-Rail Mounting
The DIN-rail kit is screwed on the industrial switch when out of factory. If the DIN-rail kit is not screwed on the industrial switch, please screw the DIN-rail kit on the switch first. First, hang the EKI-2728MI to the DIN-rail with angle of inclination. See figure 2.6. Figure 2.6: Installation to DIN-rail Step 1... -
Page 23: Figure 2.7: Installation To Din-Rail Step 2
Then, let the device down straight to slide over the rail smoothly. See Figure 2.7 Figure 2.7: Installation to DIN-rail Step 2 Chapter2... -
Page 24: Network Connection
2.4 Network Connection The EKI-2728MI has 6 x RJ-45 and 2 Fiber ports that support connection to 10 Mbps Ethernet, 100 Mbps Fast Ethernet, or 1000 Mbps Gigabit Ethernet, and half or full duplex operation. EKI-2728MI can be connected to other hubs/switches through a twisted-pair straight-through cable or a crossover cable up to 100m long. -
Page 25: Troubleshooting
Troubleshooting Chapter2... -
Page 26: Chapter 3 Troubleshooting
Chapter 3 Troubleshooting Power Input Verify that is using the right power cord/adapter (+12~48 V and 24 V ), please don’t use the power adapter with DC output voltage higher than 48V, or it will burn this converter down. Cable Select the proper UTP/STP cable to construct your network. - Page 27 Pin Assignment & Wiring Chapter2...
-
Page 28: Appendix A Pin Assignment & Wiring
Appendix A Pin Assignment & Wiring It is suggested to adopt ELA/TIA as the wiring of the RJ-45. Figure A.1: RJ-45 Pin Assignment Figure A.2: EIA/TIA-568B Figure A.2: EIA/TIA-568A EKI-2728MI_Manual_ed1.doc...
