Page 1: User Manual

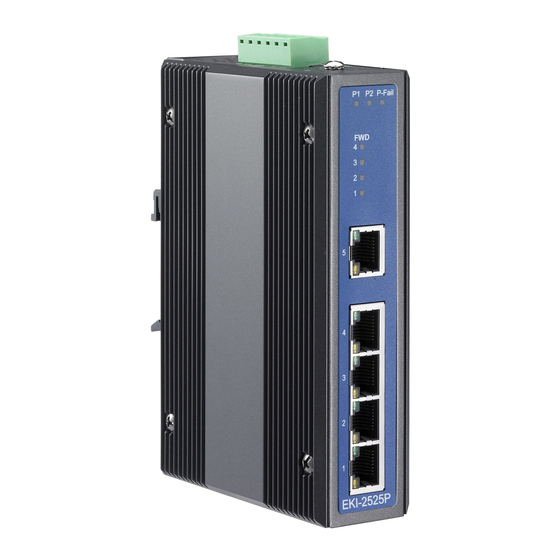

EKI-2525P 5-port Industrial PoE Unmanaged Ethernet Switch User Manual... - Page 2 The documentation and the software included with this product are copyrighted 2007 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd.
- Page 3 Because of Advantech s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
-
Page 4: Declaration Of Conformity
Step 2. Contact your distributor, sales representative, or Advantech’s customer service center for technical support if you need additional assistance. Please have the following information ready before you call: - Product name and serial number... -
Page 5: Safety Instructions
Safety Instructions 1. Read these safety instructions carefully. 2. Keep this User' s Manual for later reference. 3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning. 4. - Page 6 Don' t touch any components on the CPU card or other cards while the PC is 2. Disconnect power before making any configuration changes. The sudden rush of power as you connect a jumper or install a card may damage sensitive electronic components. EKI-2525P User Manual.doc...
-
Page 7: Table Of Contents
2.1 LED Indicators ........... 8 Table 2.1: EKI-2525P LED Definition ......8 2.2 Dimensions (units: mm) ........9 Figure 2.1: Front View of EKI-2525P ......9 Figure 2.2: Side View of EKI-2525P......10 Figure 2.3: Rear View of EKI-2525P ......11 Figure 2.4: Top View of EKI-2525P ......12 2.3 Mounting ............ - Page 8 EKI-2525P User Manual.doc viii...
-
Page 9: Chapter 1 Overview
Overview Sections include: Introduction Features Specifications Packing List Safety Precaution Chapter1... -
Page 10: Introduction
Fail LED will turn on and send an alarm through a relay output for notifying user. 1.1.4 Flexible Mounting EKI-2525P is extremely compact (37 x 140 x 95 mm) and can be mounted on a DIN- rail or a panel, so it is suitable for any space-constrained environment. 1.1.5... -
Page 11: Features
1.2 Features • Provides 5 x 10/100Base-TX Ethernet ports with 4 PoE injectors of RJ-45 connector • Supports full/half duplex flow control • Supports store and forward transmission • Supports auto-negotiation • Supports MDI/MDI-X auto crossover • Provides surge protection (EFT) 3,000 V for power line •... -
Page 12: Specification
4,000 V Surge (EFT for power) 3,000 V Power Reverse Current Overload Protection 3A@48V (Re-settable Fuse) Environment Operating Temperature -10 ~ 60 ‡ : Operating Humidity 5% ~ 95% (non-condensing) Storage Temperature -40 ~ 85 ‡ : EKI-2525P User Manual.doc... - Page 13 Certifications Safety UL, 60950-1, CAN/CSA-C22.2 No.60950 U.S.A.: FCC Part 15 CISPR 22 EU: EN55011, EN61000-6-4 EN55022, Class A, EN61000-3-2/3 EN55024 IEC61000-4-2/3/4/5/6/8 EN61000-6-2/4 Free Fall IEC60068-2-32 Shock IEC60068-2-27 Vibration IEC60068-2-6 Chapter1...
-
Page 14: Packing List
1.4 Packing List • 1 x EKI-2525P Industrial Ethernet Switch • 1 x eAutomation Industrial Communication CD-ROM with software, and User manual • 2 x Wall Mounting Bracket and Screws • 1 x DIN-rail Mounting Bracket and Screws • 1 x EKI-2525P Startup Manual •... -
Page 15: Chapter 2 Installation
Installation Sections include: LED Indicators Dimensions Mounting Network Connection Power Connection Chapter2... -
Page 16: Table 2.1: Eki-2525P Led Definition
2.1 LED Indicators There are few LEDs display the power status and network status located on the front panel of EKI-2525P, each of them has its own specific meaning as the table below. Table 2.1: EKI-2525P LED Definition Color... -
Page 17: Dimensions (Units: Mm)
2.2 Dimensions (units: mm) Figure 2.1: Front View of EKI-2525P Chapter2... -
Page 18: Figure 2.2: Side View Of Eki-2525P
Figure 2.2: Side View of EKI-2525P EKI-2525P User Manual.doc... -
Page 19: Figure 2.3: Rear View Of Eki-2525P
Figure 2.3: Rear View of EKI-2525P Chapter2... -
Page 20: Figure 2.4: Top View Of Eki-2525P
Please refer to page 16 for pin assignment. Figure 2.4: Top View of EKI-2525P EKI-2525P User Manual.doc... -
Page 21: Mounting
The EKI-2525P supports two mounting methods: DIN-rail & Wall. 2.3.1 Wall mounting EKI-2525P can be wall-mounted by using the included mounting kit. Then, hang on the EKI-2525P to the nails on the wall. First, use the screws included in the package to combine the EKI-2525P and metal mounting kit. -
Page 22: Din-Rail Mounting
The DIN-rail kit is screwed on the industrial switch when out of factory. If the DIN-rail kit is not screwed on the industrial switch, please screw the DIN-rail kit on the switch first. First, hang the EKI-2525P to the DIN-rail with angle of inclination. See figure 2.6. Figure 2.6: Installation to DIN-rail Step 1... -
Page 23: Figure 2.7: Installation To Din-Rail Step 2
Then, let the device down straight to slide over the rail smoothly. See Figure 2.7 Figure 2.7: Installation to DIN-rail Step 2 Chapter2... -
Page 24: Network Connection
2.4 Network Connection The EKI-2525P has 5 x RJ-45 ports that support connection to 10 Mbps Ethernet, or 100 Mbps Fast Ethernet, and half or full duplex operation. EKI-2525P can be connected to other hubs or switches through a twisted-pair straight through the cable or a crossover cable up to 100m long. -
Page 25: Chapter 3 Troubleshooting
Troubleshooting Chapter2... - Page 26 If user still cannot resolve the problem, contact the local dealer for assistance. If the Industrial switch LED indicators are normal and the connected cables are correct but the packets still cannot transmit, please check your system’s Ethernet devices configuration or status. EKI-2525P User Manual.doc...
-
Page 27: Appendix A Pin Assignment & Wiring
Pin Assignment & Wiring Chapter2... -
Page 28: Figure A.1: Rj-45 Pin Assignment
Appendix A Pin Assignment & Wiring It is suggested to adopt ELA/TIA as the wiring of the RJ-45. Figure A.1: RJ-45 Pin Assignment Figure A.2: EIA/TIA-568B Figure A.2: EIA/TIA-568A EKI-2525P User Manual.doc...
