SPC741D8QM3-NL

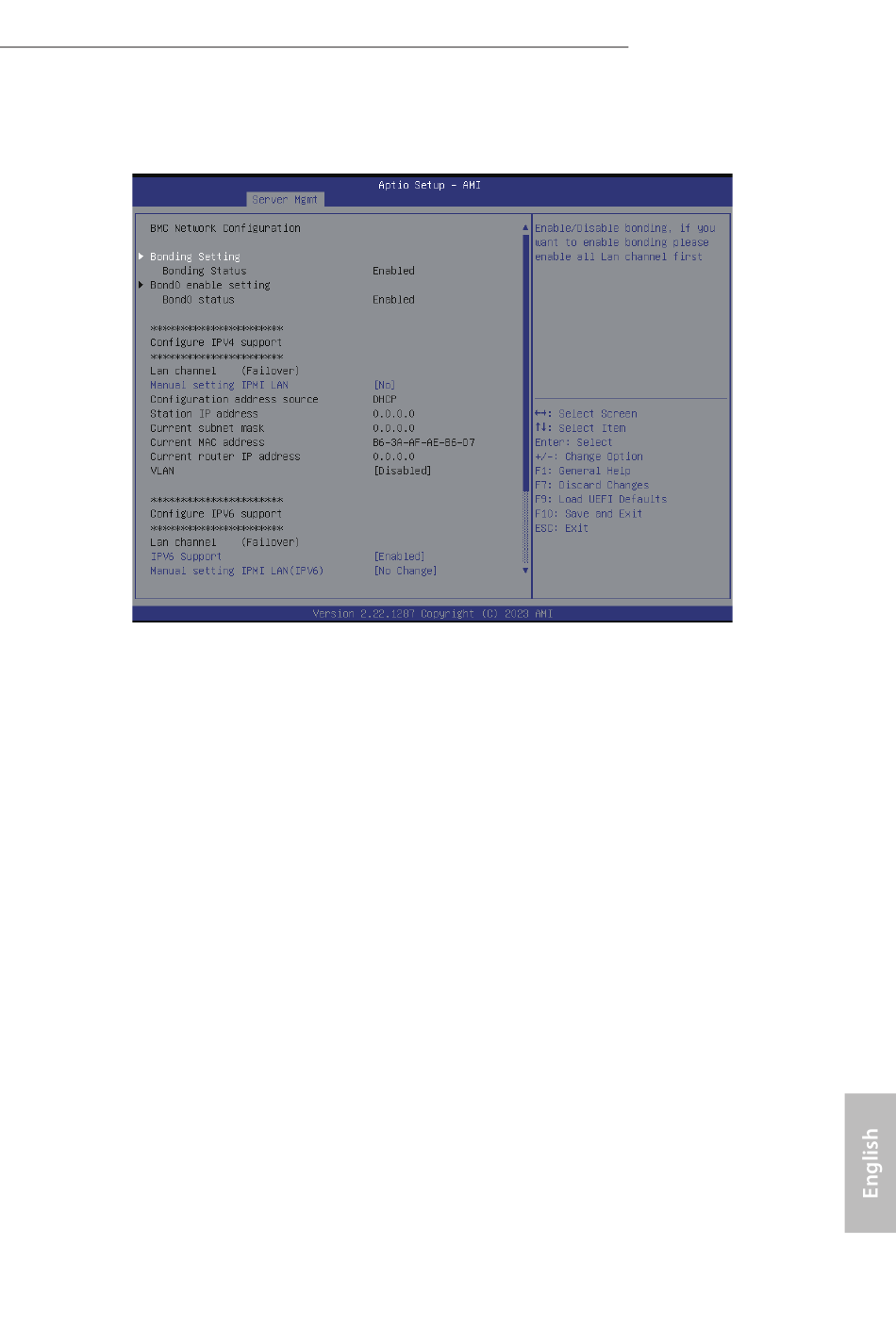

3.4.1 BMC Network Configuration
Bonding Setting
Select this item to enabled or disabled bonding. Please enable all lan channel first when
want to enable bonding.
Lan Channel (Failover)
Manual Setting IPMI LAN
If [No] is selected, the IP address is assigned by DHCP. If you prefer using a static IP
address, toggle to [Yes], and the changes take effect after the system reboots. The default
value is [No].
Configuration Address Source
Select to configure BMC network parameters statically or dynamically(by BIOS or BMC).
Configuration options: [Static] and [DHCP].
Static: Manually enter the IP Address, Subnet Mask and Gateway Address in the BIOS for
BMC LAN channel configuration.
DHCP: IP address, Subnet Mask and Gateway Address are automatically assigned by the
network's DHCP server.
77
