ASROCK SPC741D8QM3-NL User Manual page 37

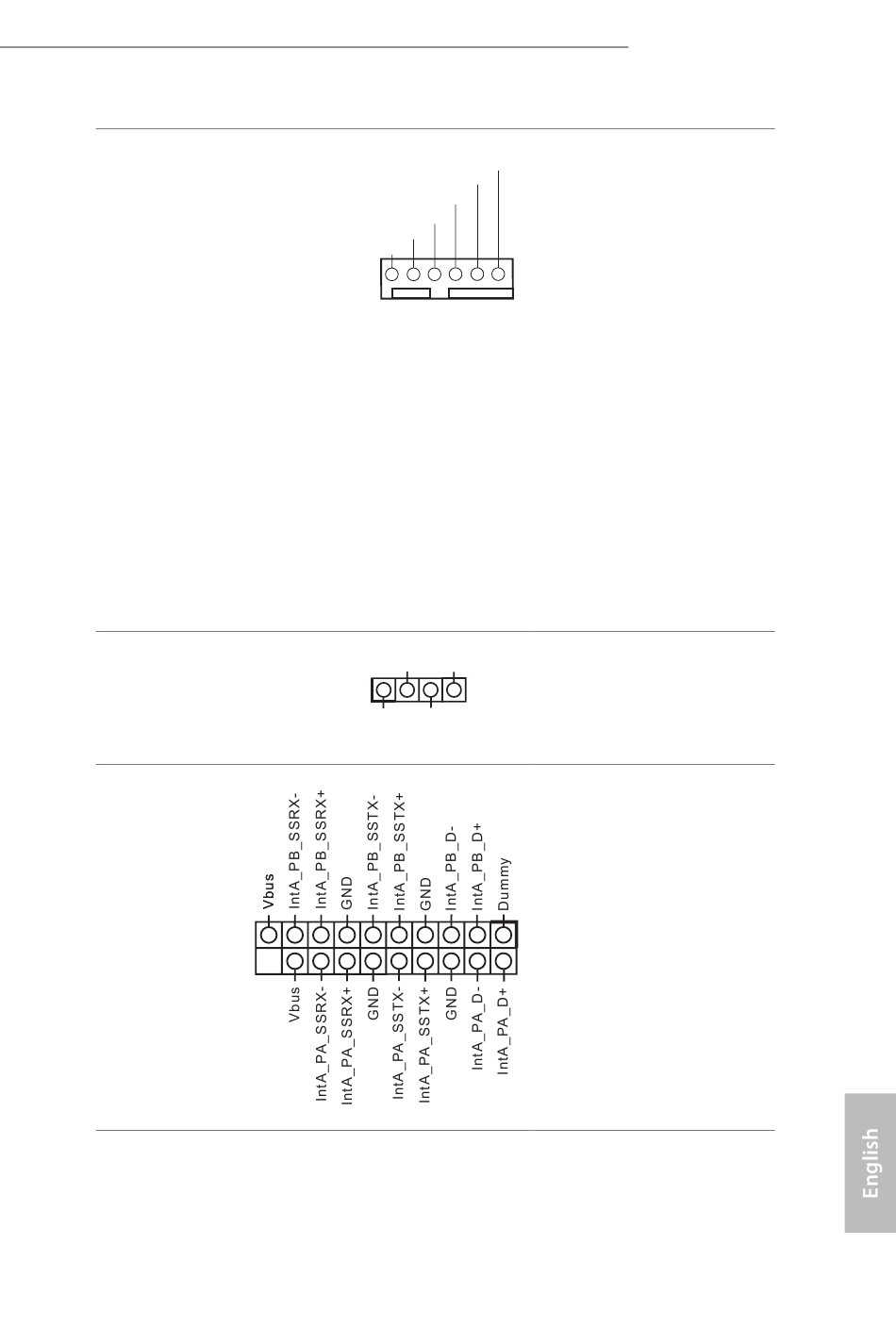

System Fan Connectors
(6-pin FAN1)
(see p.6, No. 7)
(6-pin FAN2)
(see p.6, No. 10)
(6-pin FAN3)
(see p.6, No. 20)
(6-pin FAN4)
(see p.6, No. 21)
(6-pin FAN5)
(see p.6, No. 23)
(6-pin FAN6)
(see p.6, No. 24)
(6-pin FAN5)
(see p.6, No. 27)
(6-pin FAN6)
(see p.6, No. 29)
Chassis Speaker Header
(4-pin SPEAKER1)
(see p.6, No. 36)
USB 3.2 Gen1 Header
(19-pin USB3_3_4)
(see p.6, No. 26)
SENSOR
FAN_SPEED_CONTROL
FAN_SPEED
FAN_VOLTAGE
GND
1 2 3 4 5
DUMMY SPEAKER
1
+5V DUMMY
SPC741D8QM3-NL
Please connect fan cables to the
NC
fan connectors and match the
black wire to the ground pin.
All fans support Fan Control.
6
Please connect the chassis
speaker to this header.
Besides two default USB 3.2
Gen1 ports on the I/O panel,
there is one USB 3.2 Gen1
header on this motherboard.
This USB 3.2 Gen1 header can
support two USB 3.2 Gen1
1
ports.
29
