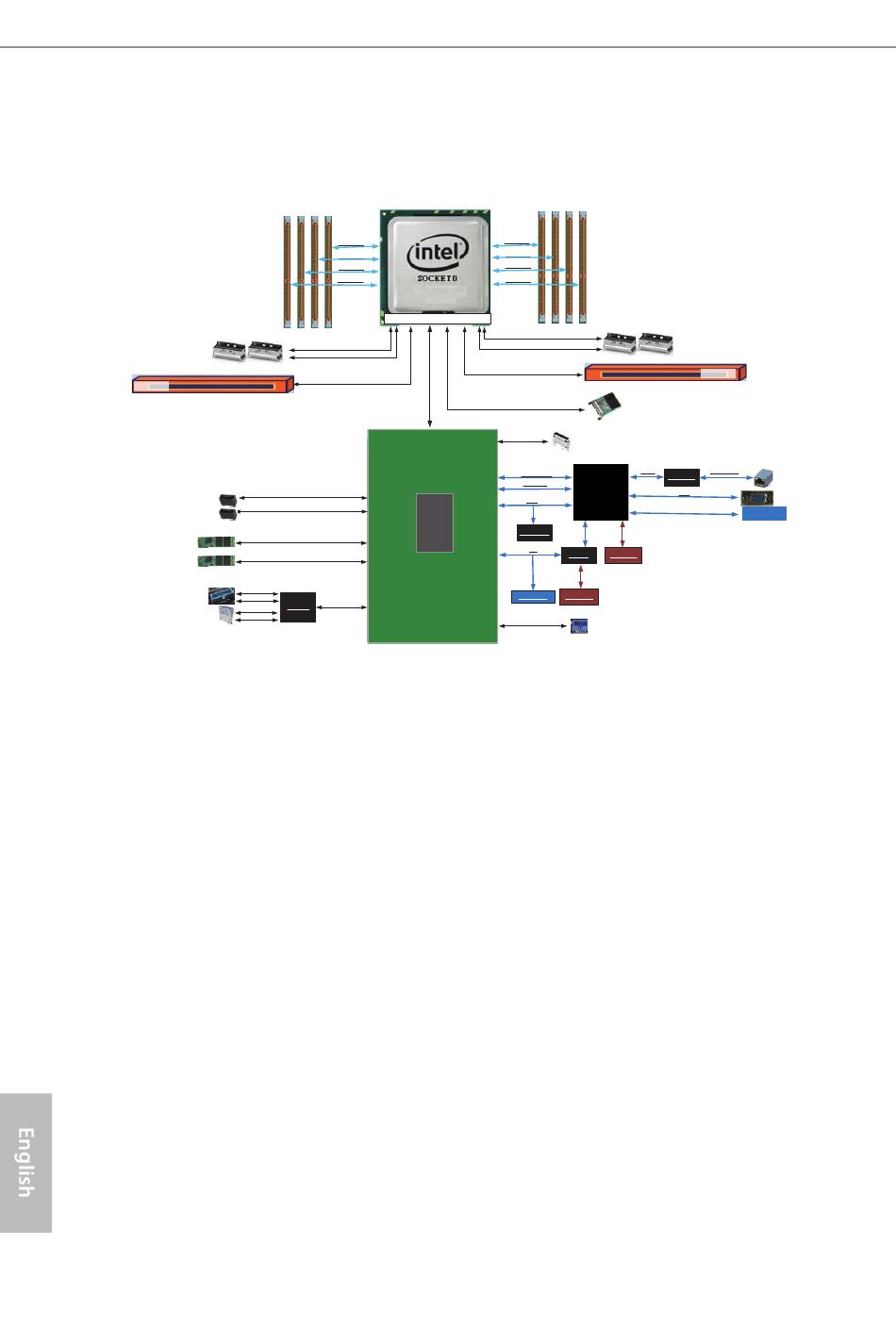

1.7 Block Diagram
2x MCIOx8
SLOT6 X16
SATA 7P
SATA 7P
M.2_1 (22110/80)
M.2_2 (2280/60)
REAR Type-A X2
12
SPC741D8QM3-NL Block Diagram
DDR5 CHA
DDR5 CHB
DDR5 CHC
DDR5 CHD
PE0 PE1
PCIe x8 Gen5
PCIe x8 Gen5
PCIe x16 Gen5
DMI3 x4
SATAIII
SATA1[0]
SATAIII
SATA1[1]
PCIe x4 Gen3/SATAIII SPC[0:3]/
SATA1[4:7]
PCIe x4 Gen3/SATAIII
SPA[4:7]/
SATA0[4:7]
Intel
Lewisburg-xx
EMMITSBURG
USB3.0 x2
USB2.0 x2
USB3.1 x1
ASM1074
USB3.0 x2 USB3.1[8]
USB2.0 x1
USB2.0 x2
DDR5 CHE
DDR5 CHF
DDR5 CHG
DDR5 CHH
DMI PE2 PE3 PE4
PCIe x8 Gen5
PCIe x8 Gen5
PCIe x16 Gen5
PCIe x16 Gen5
PCIe x4 Gen3
SPA[0:3]/
OCU
SATA0[0:3] SATAIII
PCIe x1 gen2
SPB[3]
USB2.0 x2
USB
ESPI
ESPI
NCT6796D-E
SPI
SPI
SWITCH
(C741)
TPM Header BIOS_Flash
ICH9
USB2.0 x2
USB
2x MCIOx8
SLOT1 X16
OCP3.0x16
RGMII 1G/s Base-T
RTL8211FD
RGB
VGA
Serial
COM_Header
BMC_Flash
